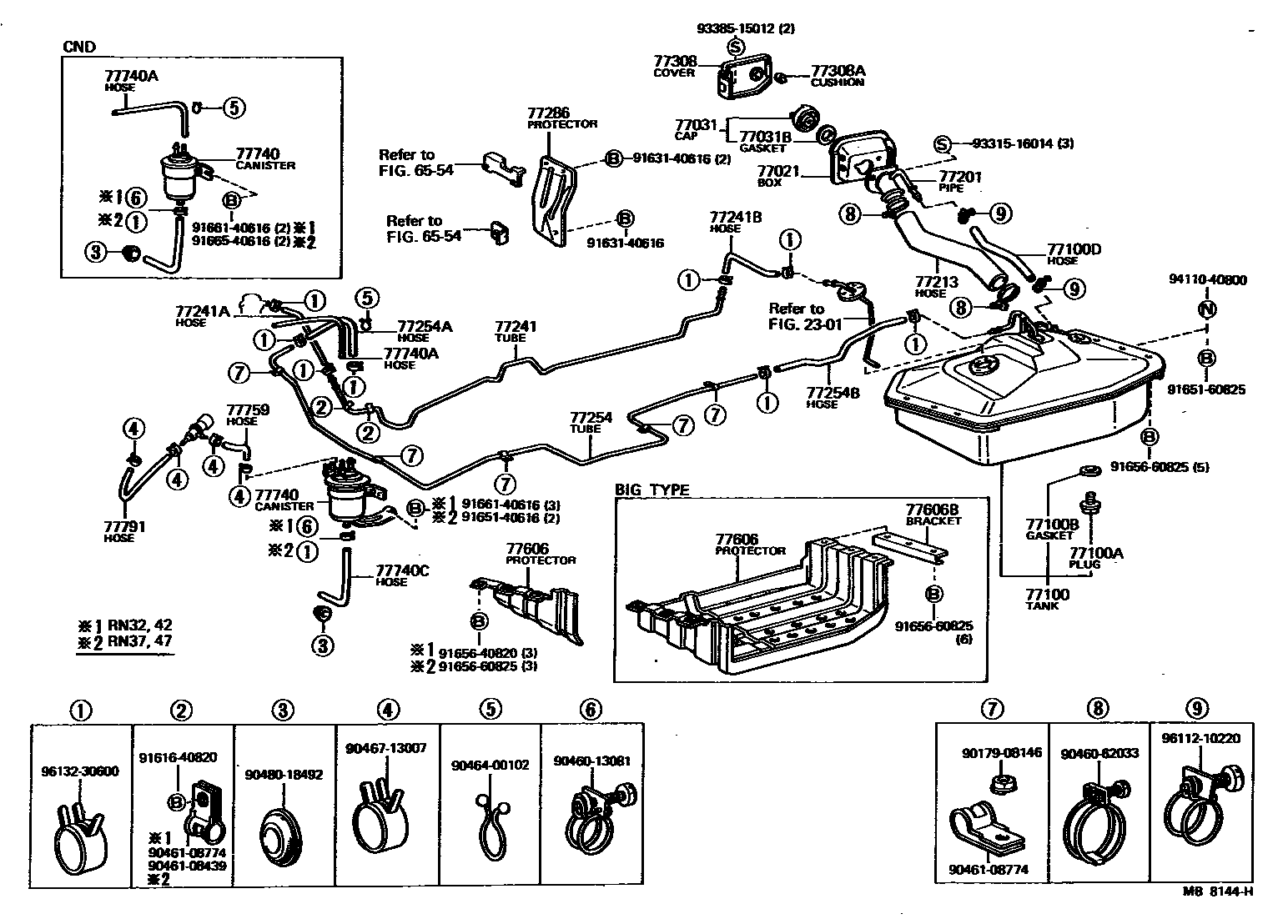

FUEL TANK & TUBE
2301FUEL PUMP & PIPE
6554REAR BODY SIDE PANEL
77021BOX ASSY, FUEL TANK INLET
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
L=320
77201PIPE SUB-ASSY, FUEL TANK INLET
77213HOSE, FUEL TANK SUB INLET
77241TUBE, FUEL MAIN, NO.1
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=300(*H,L=240); L=300(*H,L=280)
L=400
L=600(*H,L=420)
L=600(*H,L=420)
77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
L=200(*H,L=180)
L=300(*H,L=220)
L=300
L=400(*H,L=320)
L=1000(*H,L=650)
77254TUBE, FUEL EMISSION, NO.1
77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
L=300(*H,L=280)
L=300(*H,L=280)
77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77286PROTECTOR, FUEL TANK INLET PIPE
77308COVER SUB-ASSY, FUEL INLET BOX
77308ACUSHION(FOR FUEL INLET BOX COVER)
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
L=313
L=822
L=977
77606BBRACKET, FUEL TANK PROTECTOR, SIDE
77740CANISTER ASSY, CHARCOAL
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
*H,L=280,MARK=#*
*H,L=330,MARK=#*; *H,L=360,MARK=#*
*H,L=480; CALIFORNIA SPEC,*H,L=510
77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77759HOSE, CHARCOAL CANISTER
77791HOSE, OUTER VENT VALVE TO CARBURETOR
9017908146
main90179-08146
9046013081
main90460-13081
9046062033
main90460-62033
9046108439
main90461-08439
9046108774
main90461-08774
9046400102
main90464-00102
9046713007
main90467-13007
9048018492
main90480-18492
9161640820
main91616-40820
9163140616
main91631-40616
9165140616
main91651-40616
9165160825
main91651-60825
9165640820
main91656-40820
9165660825
main91656-60825
9166140616
main91661-40616
9166540616
main91665-40616
9331516014
main93315-16014
9338515012
main93385-15012
9411040800
main94110-40800
9611210220
main96112-10220
9613230600
main96132-30600
48 parts on this diagram · 7 diagrams in section
