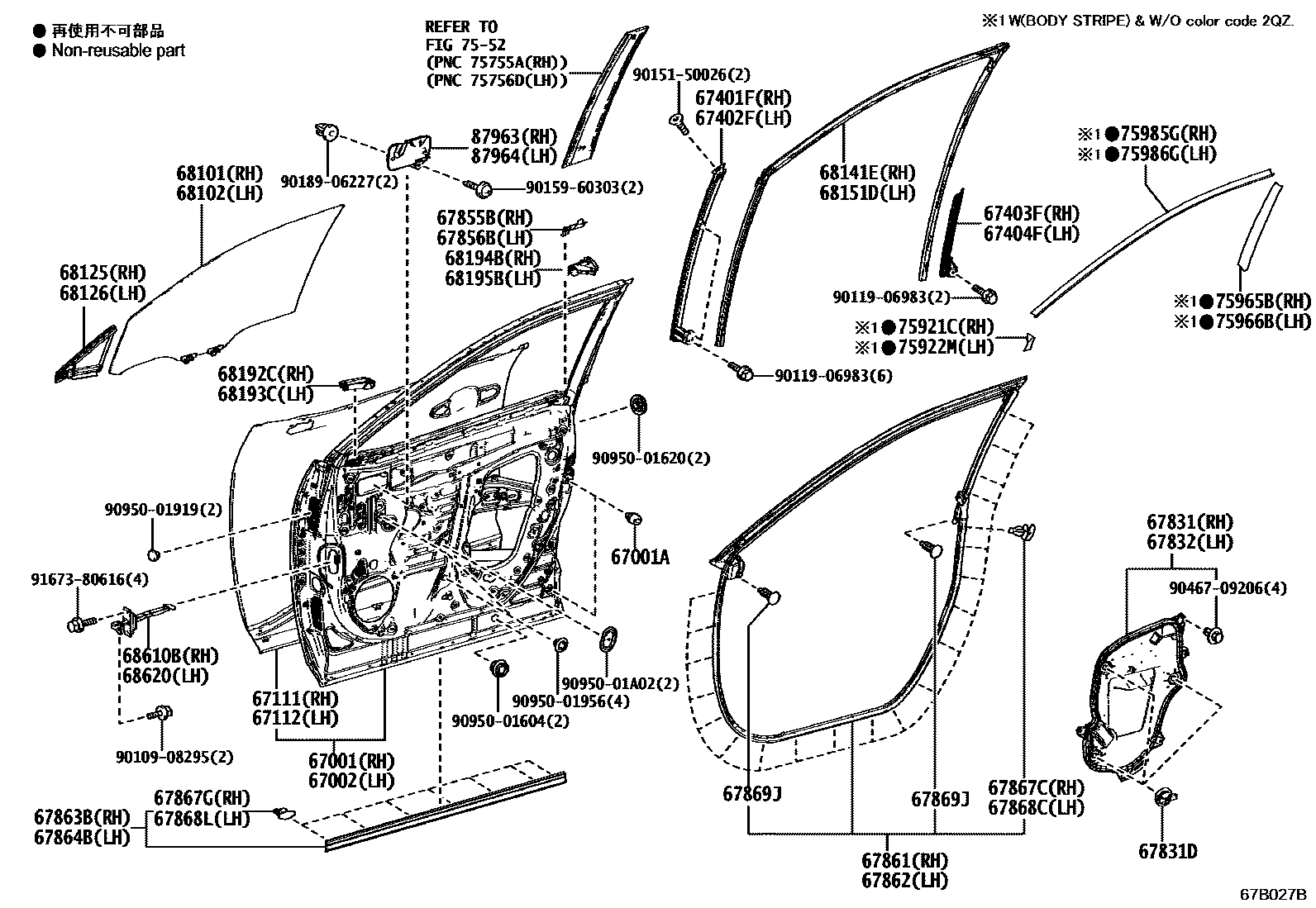

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-42170iAXAP54202006-202102

main67001-42171iAXAP54202310

67001ACUSHION, FRONT DOOR PANEL

main90541-09137×4iAXAP54202006-202210

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-42190iAXAP54202006-202102

main67002-42191iAXAP54202310

67111PANEL, FRONT DOOR, OUTER RH

main67111-42080iAXAP54202006-202210

67112PANEL, FRONT DOOR, OUTER LH

main67112-42080iAXAP54202006-202210

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-42030iAXAP54202006-202210

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-42030iAXAP54202006-202210

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-42060iAXAP54202210-202310

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-42060iAXAP54202210-202310

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-42090iAXAP54202006-202210

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-42010×6iAXAP54202409

main67869-47010×6iAXAP54202310-202408

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-42040iAXAP54202006-202210

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-42030iAXAP54202006-202210

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-42030iAXAP54202006-202210

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-42120iAXAP54202006-202210

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-42120iAXAP54202210-202310

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-42040iAXAP54202210-202310

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-42030iAXAP54202006-202210

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×21iAXAP54202006-202210

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×7iAXAP54202006-202210

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×21iAXAP54202210-202310

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×7iAXAP54202210-202310

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×4iAXAP54202210-202310

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-42390iAXAP54202006-202210

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-42400iAXAP54202210-202310

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-42020iAXAP54202310

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-42020iAXAP54202006-202210

68141ERUN, FRONT DOOR GLASS, RH

main68141-42121iAXAP54202006-202210

68151DRUN, FRONT DOOR GLASS, LH

main68151-42121iAXAP54202006-202210

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-42010iAXAP54202006-202210

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-42010iAXAP54202006-202210

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-42010iAXAP54202006-202210

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-42010iAXAP54202006-202210

68610BCHECK ASSY, FRONT DOOR, RH

main68610-42060iAXAP54202006-202210

68620CHECK ASSY, FRONT DOOR, LH

main68610-42060iAXAP54202006-202210

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-42050iAXAP54..XSE202006-202210

BODY STRIPE-WITHOUT

75922MTAPE, BLACK OUT, NO.1 LH

main75922-42050iAXAP54..XSE202006-202210

BODY STRIPE-WITHOUT

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-42010iAXAP54..XSE202006-202210

BODY STRIPE-WITHOUT

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-42010iAXAP54..XSE202006-202210

BODY STRIPE-WITHOUT

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-42050iAXAP54..XSE202006-202210

BODY STRIPE-WITHOUT

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-42030iAXAP54..XSE202006-202210

BODY STRIPE-WITHOUT

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-42010iAXAP54202006-202210

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-42010iAXAP54202006-202210

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9046709206

main90467-09206

9095001604

main90950-01604

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

56 parts on this diagram · 2 diagrams in section
