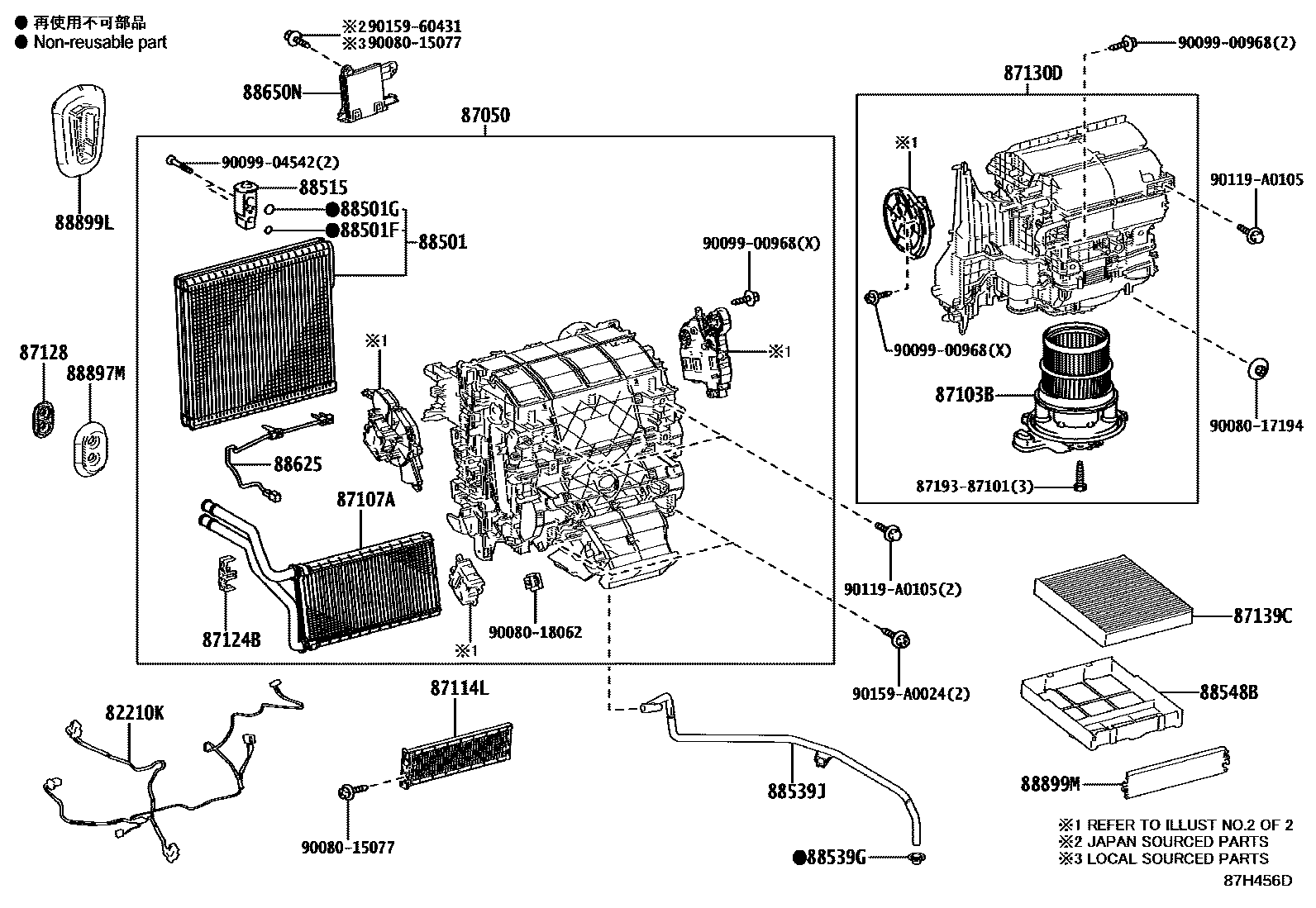

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
AUDIO-6PEAKER & 8INCH DISPLAY & XM
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114LCOVER, HEATER, NO.2
87124BCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
POLLEN FILTER,OE PART
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
main88650-0R340iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,P,S,V,X; AXAA54,AXAH54..G..USA202112-202211
MEXICO SPEC
TRD OFFROAD PACKAGE; TRD OFFROAD PACKAGE&COLD AREA SPEC, WITH(STEERING HEATER)
main88650-0R470iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,P,S,V,X; AXAA54,AXAH54..G..USA202211-202310
MEXICO SPEC
TRD OFFROAD PACKAGE; TRD OFFROAD PACKAGE&COLD AREA SPEC.-COLD AREA SPEC,W(STEERING HEATER)
main88650-0R500iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,P,S,V,X; AXAA54,AXAH54..G..USA202310
MEXICO SPEC
TRD OFFROAD PACKAGE; TRD OFFROAD PACKAGE&COLD AREA SPEC.-COLD AREA SPEC,W(STEERING HEATER)
*COS,W(STEERING HEATER&REAR SEAT HEATER); COLD AREA SPEC, WITH(STEERING HEATER)
*COS,W(STEERING HEATER&REAR SEAT HEATER); COLD AREA SPEC,W(STEERING HEATER)
*COS,W(STEERING HEATER&REAR SEAT HEATER); COLD AREA SPEC,W(STEERING HEATER)
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
main87193-87101
9008015077
main90080-15077
9008017194
main90080-17194
9008018062
main90080-18062
9009900968
main90099-00968
9009904542
main90099-04542
90119A0105
main90119-A0105
9015960431
main90159-60431
90159A0024
main90159-A0024
30 parts on this diagram · 2 diagrams in section
