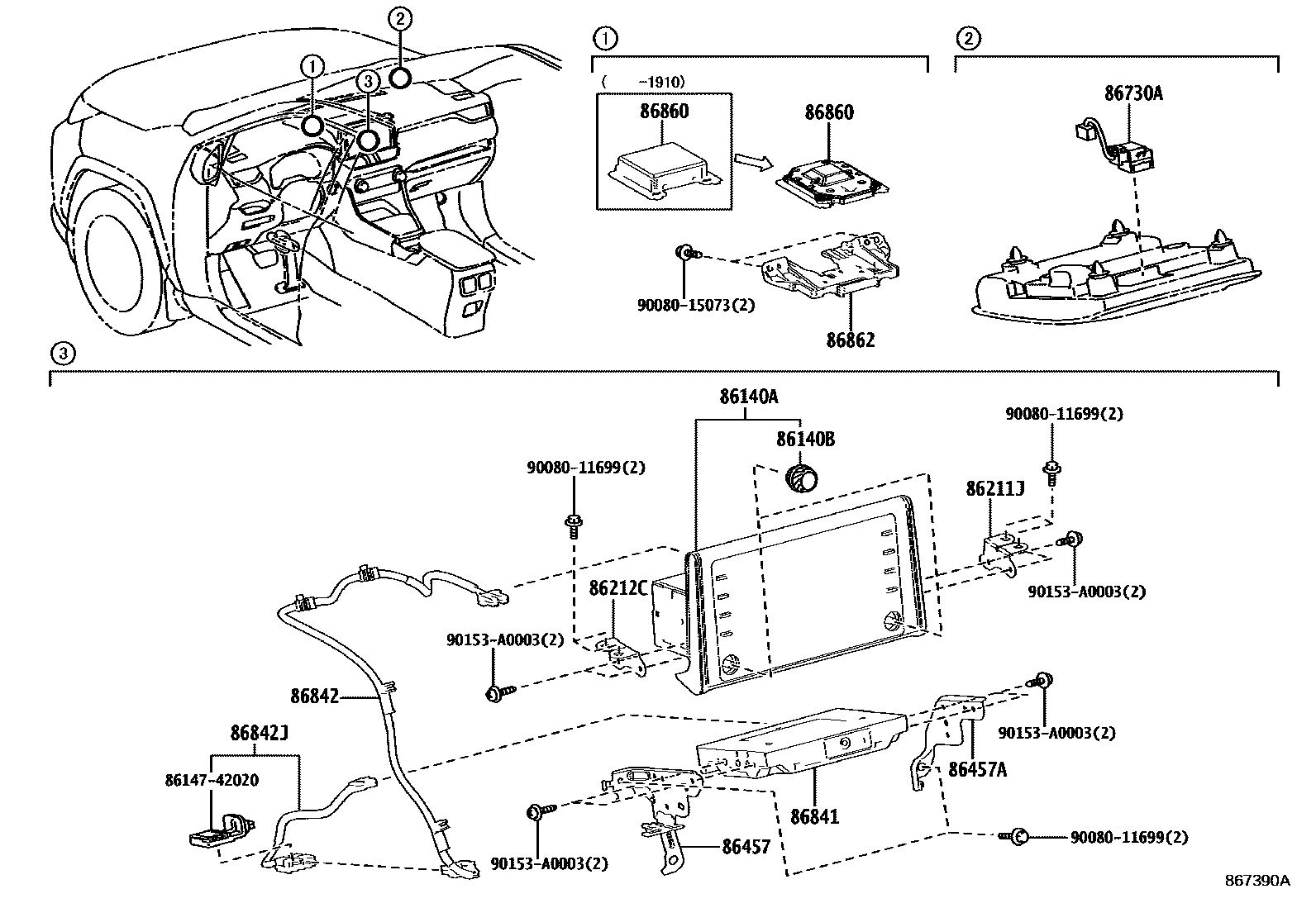

NAVIGATION & FRONT MONITOR DISPLAY
86140ARECEIVER ASSY, RADIO & DISPLAY
PIONEER
PIONEER
main86140-0R370supersedes 86140-0R350iAXAA5#,AXAH54,AXAL54..(G,V)..USA; AXAA5#,AXAH54,AXAL54..(M,X)..USA202009-202112
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & XM
main86140-0R410supersedes 86140-0R161iAXAA5#,AXAH54..(M,X)..CND; AXAA54,AXAH54..(G,V)..CND201910-202009
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & XM
main86140-0R560iAXAA5#,AXAH54,AXAL54..(M,S)..USA; AXAA54..V..USA; AXAH54,AXAL54..P..USA202112-202205
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 9INCH DISPLAY & XM; DENSO TEN,MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM; DENSO TEN,TRD OFFROAD PACKAGE&AUDIO-6PEAKER & 9INCH DISPLAY & XM
main86140-0R561iAXAA5#,AXAH54,AXAL54..(M,S)..USA; AXAA54..V..USA; AXAH54,AXAL54..P..USA202206-202211
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 9INCH DISPLAY & XM; DENSO TEN,MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM; DENSO TEN,TRD OFFROAD PACKAGE&AUDIO-6PEAKER & 9INCH DISPLAY & XM
main86140-0R570iAXAA5#,AXAH54,AXAL54..G..USA; AXAA5#,AXAH54,AXAL54..M..USA; AXAA54,AXAH54,AXAL54..(P,V)..USA202112-202205
DENSO TEN; DENSO TEN,AUDIO-JBL & 9INCH DISPLAY; DENSO TEN,SEAT COVER MATERIAL(SYNTHETIC LEATHER)&AUDIO-JBL & 9INCH DISPLAY
main86140-0R571iAXAA5#,AXAH54,AXAL54..G..USA; AXAA5#,AXAH54,AXAL54..M..USA; AXAA54,AXAH54,AXAL54..(P,V)..USA202206-202211
DENSO TEN; DENSO TEN,AUDIO-JBL & 9INCH DISPLAY; DENSO TEN,SEAT COVER MATERIAL(SYNTHETIC LEATHER)&AUDIO-JBL & 9INCH DISPLAY
DENSO TEN; DENSO TEN,AUDIO-JBL & 9INCH DISPLAY & AVN
DENSO TEN
DENSO TEN; DENSO TEN,AUDIO-JBL & 10.5INCH DISPLAY
DENSO TEN
DENSO TEN; DENSO TEN,AUDIO-JBL & 10.5INCH DISPLAY; DENSO TEN,TRD OFFROAD PACKAGE
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 10.5INCH DISPLAY
PIONEER,AUDIO-6PEAKER & 8INCH DISPLAY
main86140-0R250supersedes 86140-0R320iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..USA201812-201910
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & XM
DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY & AVN
main86140-0R280supersedes 86140-0R230iAXAA5#,AXAH54..(M,X)..CND; AXAA54,AXAH54..(G,V)..CND201812-201910
DENSO TEN; DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & XM
DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY
PIONEER,AUDIO-6PEAKER & 8INCH DISPLAY
PIONEER,AUDIO-6PEAKER & 8INCH DISPLAY
PIONEER,MEXICO SPEC&AUDIO-6PEAKER & 8INCH DISPLAY
PIONEER,AUDIO-6PEAKER & 8INCH DISPLAY & T0.5
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY
DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-6PEAKER & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 8INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 9INCH DISPLAY & AVN; DENSO TEN,MEXICO SPEC&AUDIO-JBL & 9INCH DISPLAY & AVN; DENSO TEN,TRD OFFROAD PACKAGE&AUDIO-JBL & 9INCH DISPLAY & AVN
DENSO TEN,AUDIO-JBL & 9INCH DISPLAY & AVN; DENSO TEN,MEXICO SPEC&AUDIO-JBL & 9INCH DISPLAY & AVN; DENSO TEN,TRD OFFROAD PACKAGE&AUDIO-JBL & 9INCH DISPLAY & AVN
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-JBL & 9INCH DISPLAY & AVN
main90011-23044×2iAXAA5#,AXAH54,AXAL54..(M,X)..USA; AXAA5#,AXAH54,AXAL54..G,V; AXAA5#,AXAH54,AXAL54..M..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..M..CND201812-202009
AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-JBL & 8INCH DISPLAY; AUDIO-JBL & 8INCH DISPLAY & AVN
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & T0.5
86211JBRACKET, RADIO RECEIVER, NO.1
main86211-0R180iAXAA5#,AXAH54,AXAL54..(M,V)..USA; AXAA54..V..CND; AXAA54..V..USA; AXAH54..G;AXAH54..P..USA;AXAA5#,AXAL54..G,P; AXAH54..P..CND202211
AUDIO-6PEAKER & 10.5INCH DISPLAY; AUDIO-JBL & 10.5INCH DISPLAY; TRD OFFROAD PACKAGE
86212CBRACKET, RADIO RECEIVER, NO.2
main86212-0R180iAXAA5#,AXAH54,AXAL54..(M,V)..USA; AXAA54..V..CND; AXAA54..V..USA; AXAH54..G;AXAH54..P..USA;AXAA5#,AXAL54..G,P; AXAH54..P..CND202211
AUDIO-6PEAKER & 10.5INCH DISPLAY; AUDIO-JBL & 10.5INCH DISPLAY; TRD OFFROAD PACKAGE
86457BRACKET, MULTI-MEDIA MODULE NO.1
main86457-42050iAXAA52..(M,X)..USA;AXAA54,AXAH54..(G,V)..USA; AXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211
MEXICO SPEC
main86457-42010iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#,AXAH54..(G,V)..USA; AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA; AXAA54,AXAH54..(G,V)..CND201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN
86457ABRACKET, MULTI-MEDIA MODULE NO.2
main86457-42060iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..G,V; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201910-202009
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-JBL & 8INCH DISPLAY & AVN
main86457-42020iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#,AXAH54..(G,V)..USA; AXAA5#..(G,V)..USA;AXAH54..(G,M)..USA; AXAA54,AXAH54..(G,V)..CND201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN
86730AMICROPHONE ASSY, TELEPHONE
MOON ROOF-WITH(PANORAMA ROOF)
MOON ROOF-WITH(PANORAMA ROOF)
86841COMPUTER, NAVIGATION
main86840-0E084iAXAA5#,AXAH54,AXAL54..(G,P,V)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND202112-202202
AUDIO-JBL & 9INCH DISPLAY & AVN
main86840-0E080iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#..G..USA; AXAA54,AXAH54..G..CND; AXAH54..G..USA; AXAH54..M..USA;AXAA5#..(G,V)..USA201910-202001
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN; EMV & NAVIGATION SYSTEM-WITH
main86840-0E081iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA; AXAA5#..G..USA; AXAA54,AXAH54..G..CND; AXAH54,AXAL54..G..USA202002-202008
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN; EMV & NAVIGATION SYSTEM-WITH
main86840-0E082iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA; AXAA5#..G..USA; AXAA54,AXAH54..G..CND; AXAH54,AXAL54..G..USA202009-202102
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN; EMV & NAVIGATION SYSTEM-WITH
main86840-0E083iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#..(G,V)..USA;AXAH54,AXAL54..M..USA; AXAA5#..G..USA; AXAA54,AXAH54..G..CND; AXAH54,AXAL54..G..USA202103-202108
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN; EMV & NAVIGATION SYSTEM-WITH
main86840-0E085iAXAA5#,AXAH54,AXAL54..(G,P,V)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND202203-202208
AUDIO-JBL & 9INCH DISPLAY & AVN
main86840-0E086iAXAA5#,AXAH54,AXAL54..(G,P,V)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND202209-202211
AUDIO-JBL & 9INCH DISPLAY & AVN
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN
main86840-0R011iAXAA5#,AXAH54..(G,M,V)..CND; AXAA5#..(G,V)..USA; AXAA54,AXAH54..(G,V)..CND; AXAH54..G..USA; AXAH54..M..USA;AXAA5#..(G,V)..USA201903-201910
AUDIO-6PEAKER & 8INCH DISPLAY & AVN; AUDIO-JBL & 8INCH DISPLAY & AVN; EMV & NAVIGATION SYSTEM-WITH
86842WIRE, NAVIGATION, NO.1
main86842-0R010iAXAA5#,AXAH54,AXAL54..(G,P,V)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND202112-202211
AUDIO-JBL & 9INCH DISPLAY & AVN
86842JWIRE, NAVIGATION, NO.2
main86842-0R020iAXAA5#,AXAH54,AXAL54..(G,P,V)..USA; AXAA54,AXAH54..(P,V)..CND; AXAA54,AXAH54..G..CND202112-202211
AUDIO-JBL & 9INCH DISPLAY & AVN
86860ANTENNA ASSY, NAVIGATION
main86880-06010iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54..USA201812-201910
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-JBL & 8INCH DISPLAY & AVN; PUERTO RICO SPEC
main86880-0E010iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201910-202009
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-JBL & 8INCH DISPLAY & AVN; PUERTO RICO SPEC
MEXICO SPEC; MEXICO SPEC&AUDIO-6PEAKER & 9INCH DISPLAY & XM; MEXICO SPEC&AUDIO-JBL & 9INCH DISPLAY & AVN
86862BRACKET, NAVIGATION ANTENNA
main86862-42010iAXAA5#,AXAH54..(G,V)..USA; AXAA5#,AXAH54..(M,X)..CND; AXAA5#,AXAH54..(M,X)..USA; AXAA5#,AXAH54..G,V; AXAA5#,AXAH54..M..CND; AXAA54..G,V;AXAH54..G..CND;AXAA54..(M,X)..USA;AXAA52,AXAH54,AXAL54..USA201812-202009
AUDIO-6PEAKER & 8INCH DISPLAY; AUDIO-6PEAKER & 8INCH DISPLAY & XM; AUDIO-6PEAKER & 8INCH DISPLAY&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-JBL & 8INCH DISPLAY & AVN; PUERTO RICO SPEC
8614742020
main86147-42020
9008011699
main90080-11699
9008015073
main90080-15073
90153A0003
main90153-A0003
16 parts on this diagram · 2 diagrams in section
