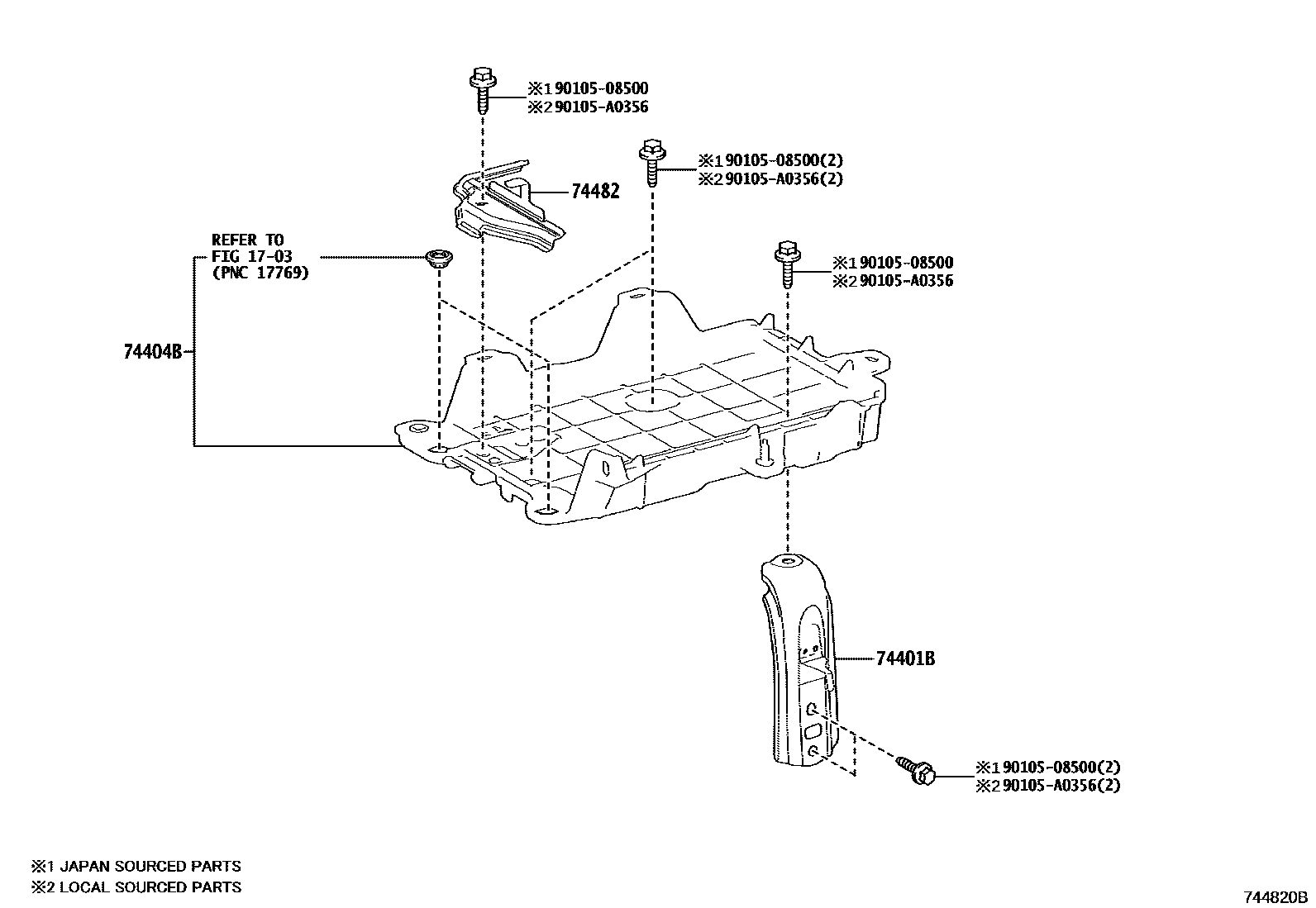

BATTERY CARRIER

0001 1 0002 1

1703AIR CLEANER

→ Go to FIG 17-03

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-06010iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

74404BCLAMP SUB-ASSY, BATTERY

main74404-0R060iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

main74440-0R010iAXAH54,AXAL54201903-202009

74482CLAMP, BATTERY, NO.2

main74482-06050iAXAA5#201812-202009

9010508500

main90105-08500

90105A0356

main90105-A0356

6 parts on this diagram · 2 diagrams in section
