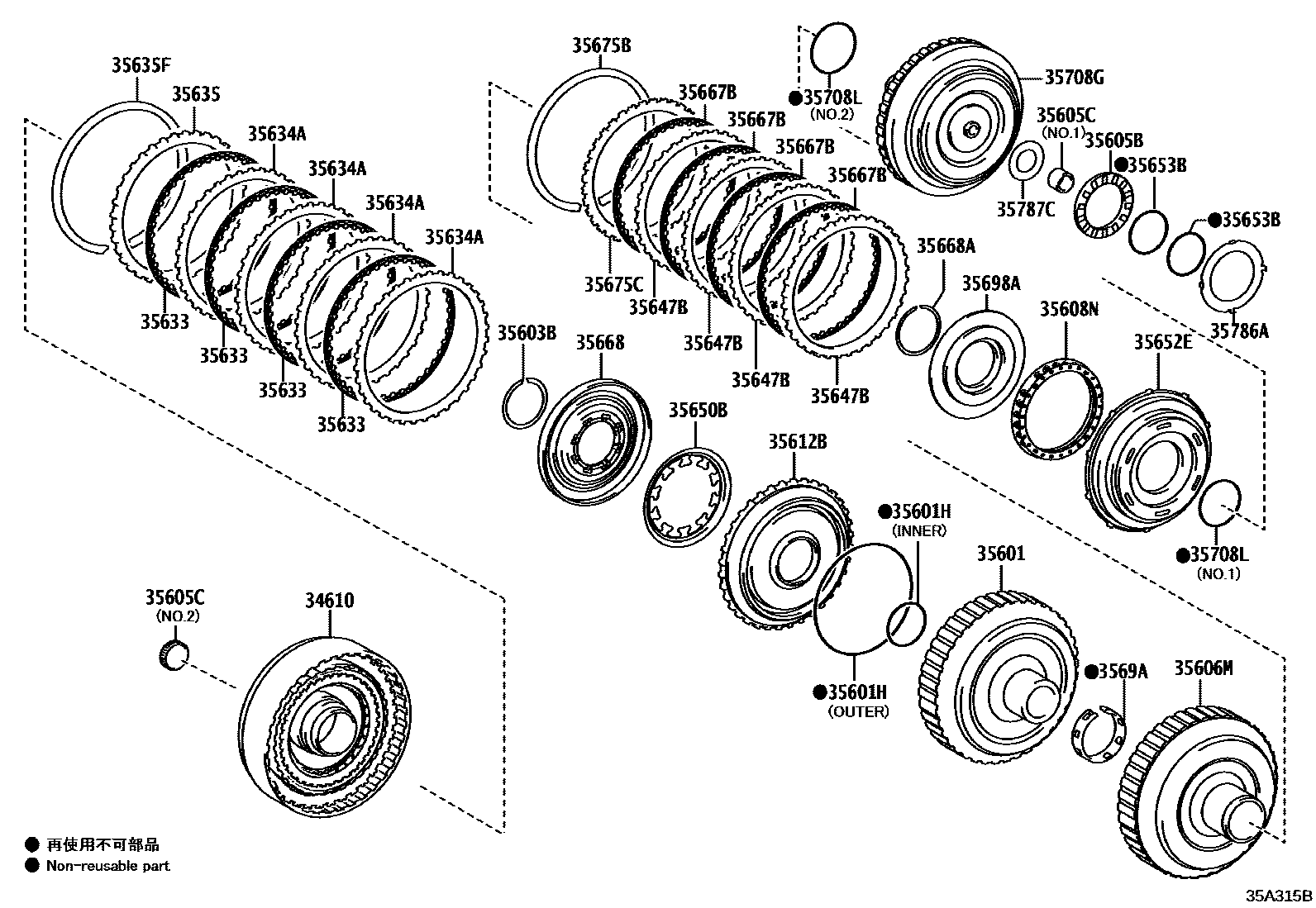

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

34610CLUTCH ASSY, C-3 & C-4

main34610-06010iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE B:REFER 35-01

main34610-33060iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35601DRUM SUB-ASSY, CLUTCH

main35601-0R010iAXAA5#201812-202009

TYPE B:REFER 35-01

main35601-33010iAXAA52..M..CND; AXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

(J),TYPE B:REF.35-01; MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01

35601HRING, O(FOR C-1 DRUM)

main90301-99219iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T/P A:SEE35-01,OUTER; T/P B:SEE35-01,OUTER; T/P C:SEE35-01,OUTER

main90302-40001iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T/P A:SEE35-01,INNER; T/P B:SEE35-01,INNER; T/P C:SEE35-01,INNER

35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)

main90520-44043iAXAA54;AXAA52..G,X202009-202211

TYPE A:REFER 35-01

main90520-A0065iAXAA54;AXAA52..G,X;AXAA52..M..USA202211-202408

TYPE B:REFER 35-01

35605BBEARING, THRUST NEEDLE ROLLER

main90374-47005iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

main90374-A0048iAXAA52..M..CND202009

TYPE B:REFER 35-01

35605CBEARING, NEEDLE ROLLER

main90364-13010supersedes 90364-23006iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T/P A:SEE 35-01,NO.1; T/P B:SEE 35-01,NO.1; T/P C:SEE 35-01,NO.1

main90364-23006iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

T/P A:SEE 35-01,NO.2; T/P B:SEE 35-01,NO.2

main90364-23007iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,T/P A:SEE 35-01,NO.2; T/P A:SEE 35-01,NO.2; T/P B:SEE 35-01,NO.2

35606MHUB SUB-ASSY, SUN GEAR INPUT

main35606-06031iAXAA52..G,X202009-202207

TYPE C:REFER 35-01

main35606-06032iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35606-0R010iAXAA5#201812-202009

TYPE B:REFER 35-01

main35606-33040iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER

main3560A-06010iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main3560A-06030iAXAA54;AXAA52..G,X;AXAA52..M..USA202311

TYPE B:REFER 35-01

main3560A-33010iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35612BPISTON, FORWARD CLUTCH

main35612-33070iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35633-06020×4iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35633-33140×4iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-06030×4iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T=1.8,TYPE B:REFER 35-01; T=1.8,TYPE C:REFER 35-01

main35634-33090×4iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

T=1.8,TYPE A:REFER 35-01

35635FLANGE, FORWARD CLUTCH

main35635-06060iAXAA52..G,X;AXAA52..M..CND202004-202009

T=4.0,MARK 0,TYPE C:REFER 35-01

main35635-06070iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T=4.1,MARK 1,TYPE B:REFER 35-01; T=4.1,MARK 1,TYPE C:REFER 35-01

main35635-06080iAXAA52..M..CND202009

T=4.2,MARK 2,TYPE B:REFER 35-01

main35635-06090iAXAA52..G,X;AXAA52..M..CND202004-202009

T=4.3,MARK 3,TYPE C:REFER 35-01

main35635-06100iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T=4.4,MARK 4,TYPE B:REFER 35-01; T=4.4,MARK 4,TYPE C:REFER 35-01

main35635-06110iAXAA52..G,X;AXAA52..M..CND202004-202009

T=4.5,MARK 5,TYPE C:REFER 35-01

main35635-06120iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T=4.6,MARK 6,TYPE B:REFER 35-01; T=4.6,MARK 6,TYPE C:REFER 35-01

main35635-33200iAXAA52..M..USA; AXAA54202211

T=4.0,MEXICO SPEC,TYPE A:REFER 35-01; T=4.0,TYPE A:REFER 35-01

main35635-33210iAXAA52..M..USA; AXAA54202211

T=4.1,MEXICO SPEC,TYPE A:REFER 35-01; T=4.1,TYPE A:REFER 35-01

main35635-33220iAXAA52..G,X202211-202310

T=4.2,TYPE A:REFER 35-01

main35635-33230iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

T=4.3,TYPE A:REFER 35-01

main35635-33240iAXAA52..M..USA; AXAA54202211

T=4.4,MEXICO SPEC,TYPE A:REFER 35-01; T=4.4,TYPE A:REFER 35-01

main35635-33250iAXAA52..M..USA; AXAA54202211

T=4.5,MEXICO SPEC,TYPE A:REFER 35-01; T=4.5,TYPE A:REFER 35-01

main35635-33260iAXAA54;AXAA52..G,X202009-202211

T=4.6,TYPE A:REFER 35-01

35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)

main90520-A0069iAXAA54;AXAA52..G,X;AXAA52..M..USA202211-202408

TYPE B:REFER 35-01

main90521-99194iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35647BPLATE, CLUTCH, NO.2

main35647-06030×4iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

main35647-33050×4iAXAA52..M..USA; AXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main35628-0R010iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35628-33050iAXAA52..G,X202211-202310

TYPE A:REFER 35-01

35652EPISTON, C-2 CLUTCH

main35652-33020iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33020×2iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35667BDISK, CLUTCH, NO.2

main35667-06020×4iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35667-33040×4iAXAA52..M..USA; AXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01

35668BALANCER, CLUTCH, NO.1

main35668-33030iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

35668ARING, SNAP(FOR CLUTCH BALANCER)

main90520-45038iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

main90520-A0066iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-A0070iAXAA54;AXAA52..G,X;AXAA52..M..USA202408

(L),TYPE B:REF.35-01

main90521-99195iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35675CFLANGE, DIRECT CLUTCH

main35675-06070iAXAA52..G,X;AXAA52..M..CND202004-202009

T=3.6,MARK A,TYPE C:REFER 35-01

main35675-06080iAXAA52..G,X202211-202310

T=3.7,MARK B,TYPE C:REFER 35-01

main35675-06090iAXAA52..G,X202211-202310

T=3.8,MARK C,TYPE C:REFER 35-01

main35675-06100iAXAA5#201812-202009

T=3.9,MARK D,TYPE B:REFER 35-01

main35675-06110iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

T=4.0,MARK E,TYPE B:REFER 35-01

main35675-06120iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T=4.1,MARK F,TYPE B:REFER 35-01; T=4.1,MARK F,TYPE C:REFER 35-01

main35675-06130iAXAA52..M..CND202009

T=4.2,MARK G,TYPE B:REFER 35-01

main35675-33140iAXAA54;AXAA52..G,X202009-202211

T=3.6,TYPE A:REFER 35-01

main35675-33150iAXAA52..M..USA; AXAA54202211

T=3.7,MEXICO SPEC,TYPE A:REFER 35-01; T=3.7,TYPE A:REFER 35-01

main35675-33160iAXAA52..M..USA; AXAA54202211

T=3.8,MEXICO SPEC,TYPE A:REFER 35-01; T=3.8,TYPE A:REFER 35-01

main35675-33170iAXAA52..M..USA; AXAA54202211

T=3.9,MEXICO SPEC,TYPE A:REFER 35-01; T=3.9,TYPE A:REFER 35-01

main35675-33180iAXAA54;AXAA52..G,X202009-202211

T=4.0,TYPE A:REFER 35-01

main35675-33190iAXAA52..M..USA; AXAA54202211

T=4.1,MEXICO SPEC,TYPE A:REFER 35-01; T=4.1,TYPE A:REFER 35-01

main35675-33200iAXAA54;AXAA52..G,X202009-202211

T=4.2,TYPE A:REFER 35-01

35698ABALANCER, C-2 CLUTCH

main35698-33010iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE A:REFER 35-01; TYPE B:REFER 35-01; TYPE C:REFER 35-01

3569ARING, CLUTCH DRUM TOLERANCE

main3569A-33010iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE A:REFER 35-01; TYPE B:REFER 35-01; TYPE C:REFER 35-01

35708GSHAFT SUB-ASSY, INTERMEDIATE

main35708-06022iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

main35708-0R010iAXAA5#201812-202009

TYPE B:REFER 35-01

main35708-33070iAXAA52..M..USA; AXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-45007iAXAA52..M..CND202009

T/P B:SEE 35-01,NO.1

main90301-45008iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,T/P A:SEE 35-01,NO.2; T/P A:SEE 35-01,NO.2; T/P B:SEE 35-01,NO.2

main90301-A0066iAXAA52..G,X202009-202211

T/P C:SEE 35-01,NO.1

main90301-A0067iAXAA52..G,X202211-202310

T/P C:SEE 35-01,NO.2

35786ARACE, THRUST BEARING, NO.1

main35786-06020iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35786-33020iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35787CRACE, THRUST BEARING, NO.2

main35787-06020iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35787-33030iAXAA54;AXAA52..G,X202009-202211

TYPE A:REFER 35-01

28 parts on this diagram · 1 diagram in section
