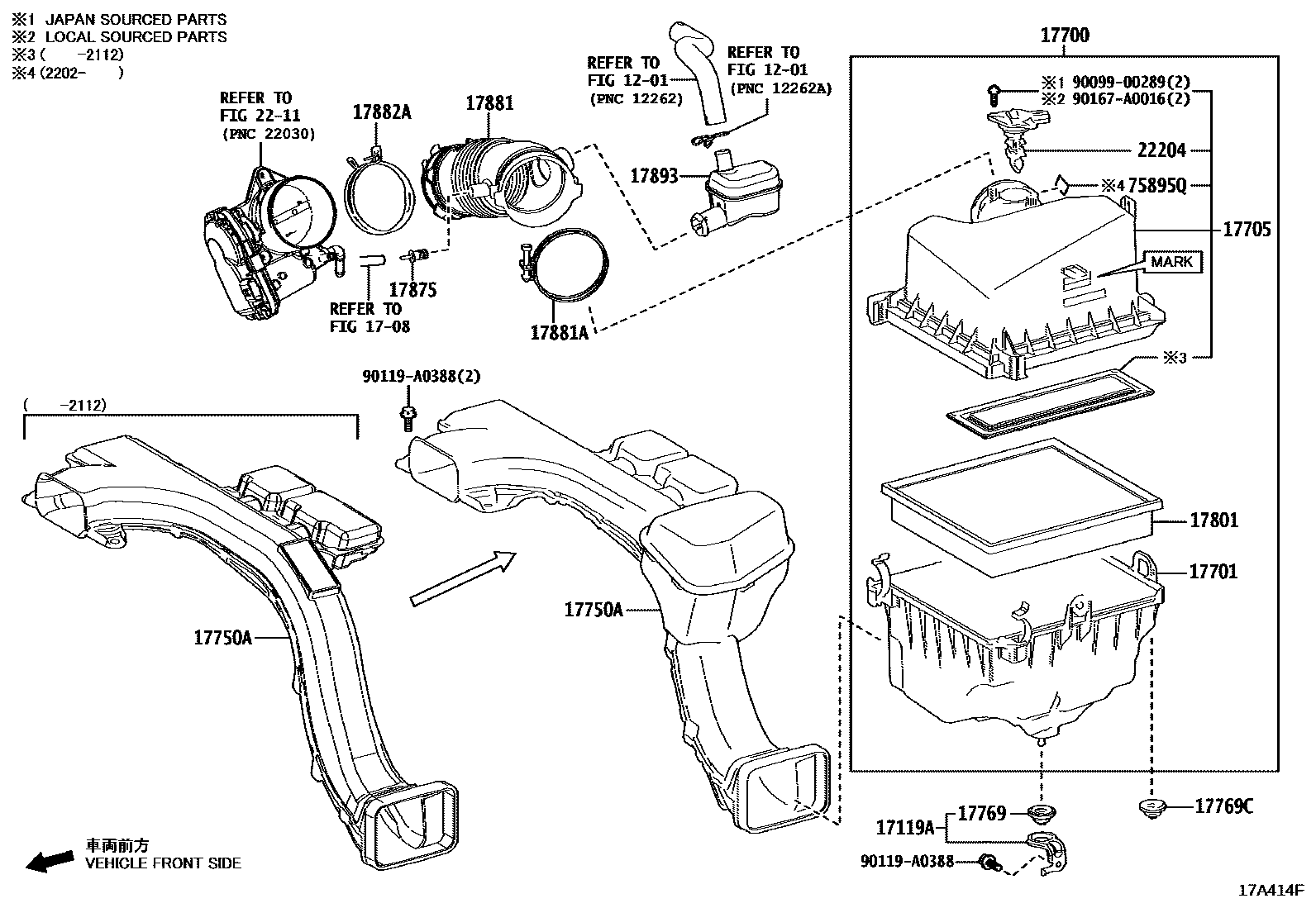

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17119ABRACKET, AIR CLEANER

main17119-F0010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202009-202211

17700CLEANER ASSY, AIR

main17700-F0010iA25AFKS..AXAA5#201812-202009

main17700-F0011iA25AFKS..AXAA5#202009-202112

REFER TO PNC 17705

main17700-F0020iA25AFXS..AXAH54,AXAL54201903-202009

main17700-F0021iA25AFXS..AXAH54,AXAL54202009-202112

REFER TO PNC 17705

main17700-F0131iA25AFKS..AXAA52..M..CND202112

REFER TO PNC 17705

main17700-F0220iA25AFXS..AXAH54,AXAL54202211

17701CASE SUB-ASSY, AIR CLEANER

main17701-F0010iA25AFKS..AXAA5#201812-202009

main17701-F0020iA25AFXS..AXAH54,AXAL54201903-202009

main17701-F0021iA25AFXS..AXAH54,AXAL54202211

main17701-F0160iA25AFKS..AXAA52..M..CND202009

17705CAP SUB-ASSY, AIR CLEANER

main17705-F0010iA25AFKS..AXAA5#201812-202009

main17705-F0020iA25AFXS..AXAH54,AXAL54202009-202112

MARK = HC

main17705-F0130iA25AFKS..AXAA52..M..CND202112

NO MARK

main17705-F0240iA25AFXS..AXAH54,AXAL54202211

17750AINLET ASSY, AIR CLEANER

main17750-F0070iA25AFKS..AXAA5#202009-202112

main17750-F0080iA25AFXS..AXAH54,AXAL54202211

main17750-F0210iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202211-202305

main17750-F0280iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202306-202406

main17750-F0350iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202406-202502

17769SUPPORT, AIR CLEANER

main17769-25020iA25AFKS..AXAA5#201812-202009

main17769-25030×2iA25AFXS..AXAH54,AXAL54202211

NO.2:REFER ILLUST.

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020×2iA25AFKS..AXAA5#201812-202009

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKS..AXAA52..M..CND202009

(J)

main17801-77050iA25AFXS..AXAH54,AXAL54202211

(J)

main17801-F0020iA25AFXS..AXAH54,AXAL54202211

(L)

main17801-F0050iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202009-202211

(L)

17875PIPE, INTAKE AIR CONNECTOR

main17875-F0020iA25AFKS..AXAA52..M..CND202009

17881HOSE, AIR CLEANER, NO.1

main17881-F0070iA25AFKS..AXAA5#201812-202009

main17881-F0080iA25AFXS..AXAH54,AXAL54201903-202009

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AXAH54,AXAL54202211

main96111-10880iA25AFKS..AXAA5#201812-202009

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AXAH54,AXAL54202009-202211

main90466-71001iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202211

17893RESONATOR, INTAKE AIR

main17893-F0130iA25AFKS..AXAA52..M..CND202009

main17893-F0140iA25AFXS..AXAH54,AXAL54201903-202009

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25#..AXAA5#,AXAH54,AXAL54201812-202009

75895QTAPE, MOULDING, NO.1

main75895-52050iAXAH54,AXAL54202112-202211

9009900289

main90099-00289

90119A0388

main90119-A0388

90167A0016

main90167-A0016

21 parts on this diagram · 2 diagrams in section
