HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

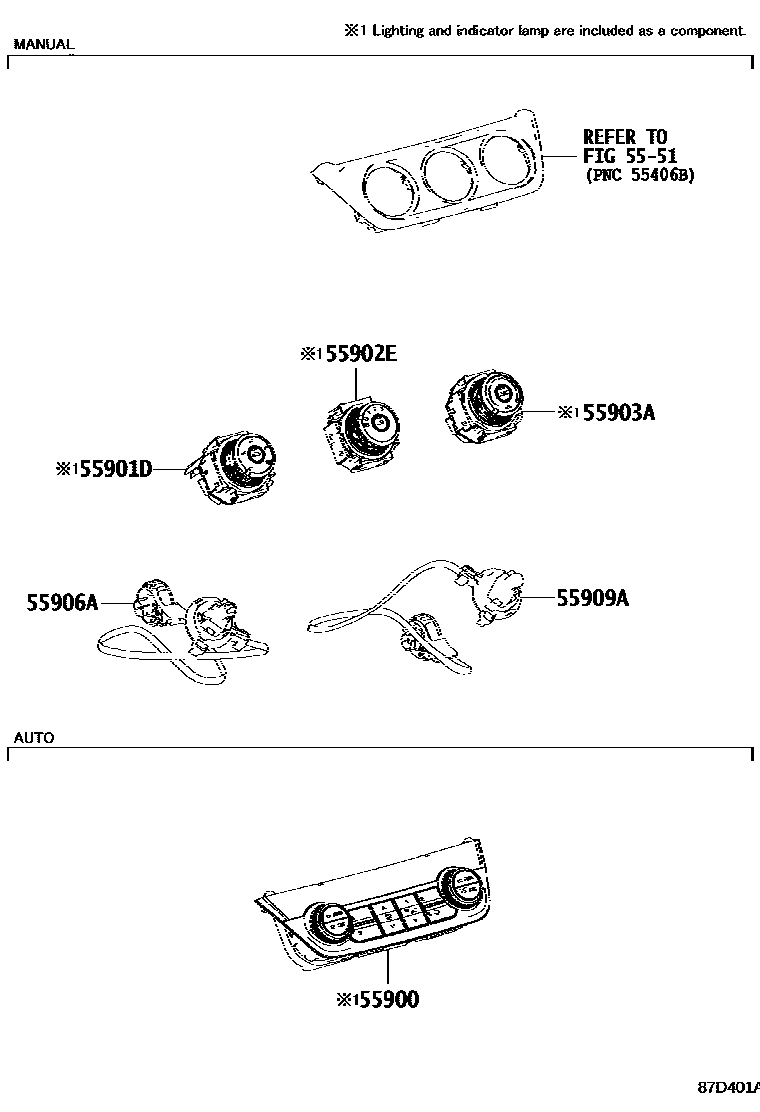

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

55900CONTROL ASSY, AIR CONDITIONER

main55900-0R030iASA4#..LIMD,XLE201301-201511

main55900-0R110iASA42..(LIMD,SE)..CND201511-201709

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-0R020iASA4#..LE201301-201511

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-0R040iASA4#..LE201301-201511

main55902-0R041iASA4#..LE201806

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0R020iASA4#..LE201301-201511

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K010iASA4#..LE201301-201511

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iASA4#..LE201301-201511

7 parts on this diagram · 3 diagrams in section
