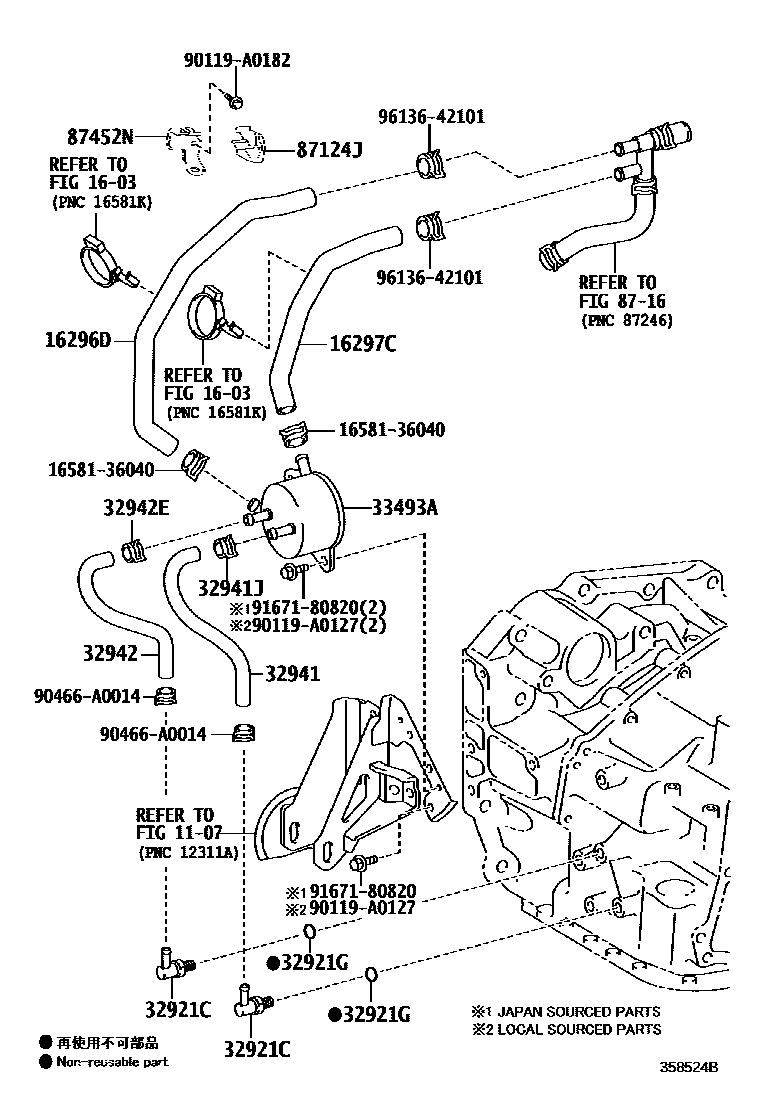

OIL COOLER & TUBE (ATM)

0001 1U760E,U760F 0002 1U760E,U760F ADVENTURE PACKAGE

1107MOUNTING

→ Go to FIG 11-07

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16296DHOSE, WATER BY-PASS, NO.8

main16296-36010i2ARFE..ASA4#201301-201511

16297CHOSE, WATER BY-PASS, NO.9

main16297-36010i2ARFE..ASA4#201301-201511

32921CUNION(FOR OIL COOLER TUBE)

main90407-14032×2iASA4#201301-201511

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iASA4#201707

*451

main90301-11031×2iASA4#201511-201811

*335

main90301-A0022×2iASA4#201301-201511

*325

32941HOSE, OIL COOLER INLET, NO.1

main32942-0R010iASA4#201511

main32942-0R060iASA4#..XLE..CND; ASA4#..XLE..USA201709

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90467-A0012iASA4#201301-201511

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-0R010iASA4#201301-201511

main32941-0R050iASA4#..XLE..CND; ASA4#..XLE..USA201709

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90467-A0012iASA4#201301-201511

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-42090iASA4#201301-201511

87124JCLAMP, HEATER

main87124-0R040iASA4#201301-201511

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

87452NBRACKET, HEATER

main87452-0R010iASA4#201301-201511

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

90119A0127

main90119-A0127

90119A0182

main90119-A0182

90466A0014

main90466-A0014

9167180820

main91671-80820

9613642101

main96136-42101

20 parts on this diagram · 2 diagrams in section
