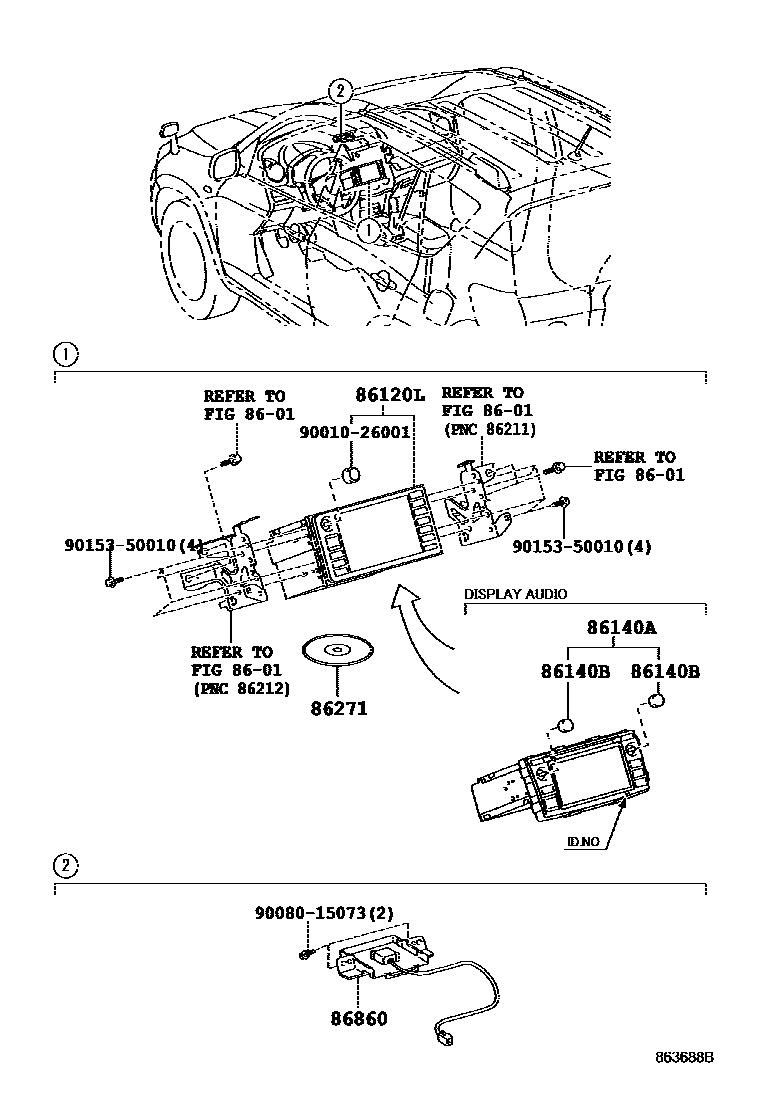

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-02E40iASA3#,GSA3#..NAP..(LIMD,SPO)200907-201112

DENSO,ID=E7019,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86120-12C00iASA3#,GSA3#..NAP..(LIMD,SPO)200811-200907

DENSO,ID=E7019,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0R060iASA3#,GSA3#..NAP..LIMD..USA201112-201301

PIONEER,ID=P10296,AUDIO-DISPLAY AUDIO USA

main86140-0R070iASA3#,GSA3#..NAP..LIMD..CND201112-201301

PIONEER,ID=P10312,AUDIO-DISPLAY AUDIO CANADA

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25254×2iASA3#,GSA3#..NAP..LIMD..CND; ASA3#,GSA3#..NAP..LIMD..USA201112-201301

AUDIO-DISPLAY AUDIO CANADA; AUDIO-DISPLAY AUDIO USA

86271DISC, DISC PLAYER

main86271-12081iASA3#,GSA3#..NAP..(LIMD,SPO)200811-200910

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86271-12082iASA3#,GSA3#..NAP..(LIMD,SPO)200911-201008

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86271-12083iASA3#,GSA3#..NAP..(LIMD,SPO)201009-201108

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86271-12084iASA3#,GSA3#..NAP..(LIMD,SPO)201108-201112

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

86860ANTENNA ASSY, NAVIGATION

main86860-42030iASA3#,GSA3#..NAP..(LIMD,SPO)200811-201201

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

9001026001

main90010-26001

9008015073

main90080-15073

9015350010

main90153-50010

9 parts on this diagram · 1 diagram in section
