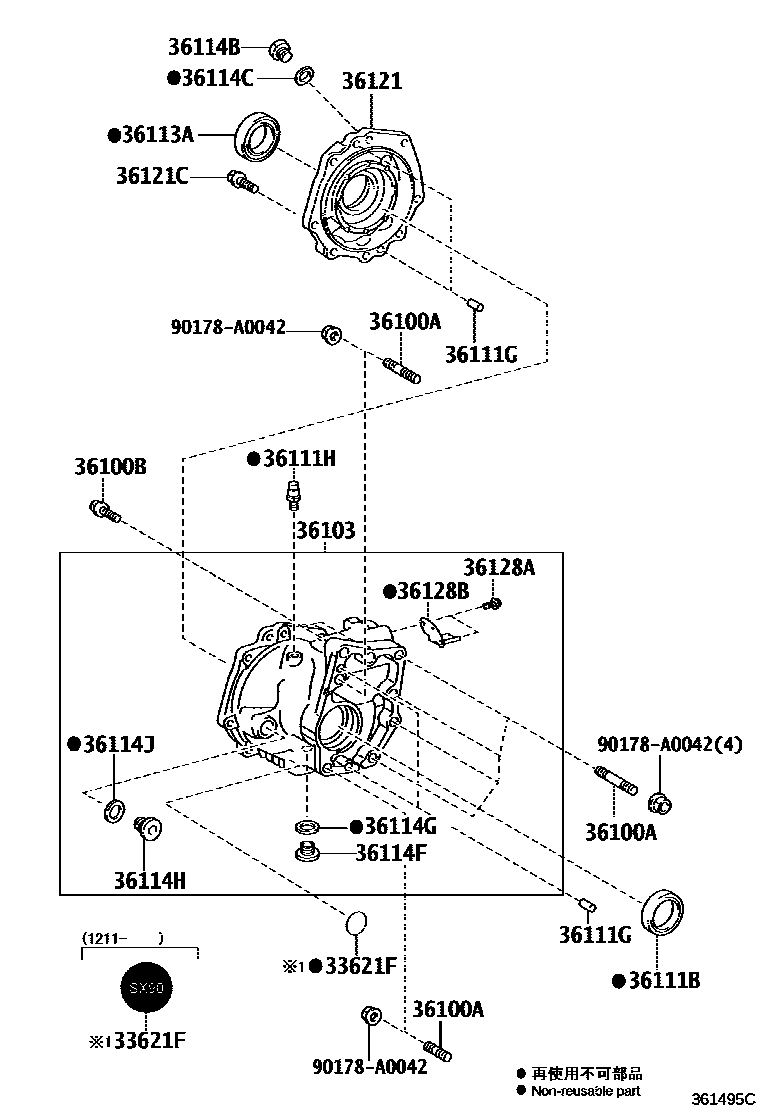

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-42040iASA33,GSA33..NAP201211-201301

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90080-11565iASA33,GSA33..NAP201101-201301

S=19 & 19,L=47,(L)

main90116-12028iASA33,GSA33..NAP200811-201301

S=22 & 22,L=69

main90116-12034iASA33,GSA33..NAP200811-201101

S=19 & 19,L=47

main90116-12041×4iASA33,GSA33..NAP200811-201301

S=30 & 22,L=64

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12298×2iASA33,GSA33..NAP200811-201301

*12-1.25PX53-35

36103CASE SUB-ASSY, TRANSFER

main36103-42010iASA33..NAP200811-201211

main36103-42021iGSA33..NAP200811-201211

main36103-42022iGSA33..NAP201211-201301

main36103-42040iASA33..NAP201211-201301

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iASA33,GSA33..NAP200811

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iASA33,GSA33..NAP200811

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iASA33,GSA33..NAP200811

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iASA33,GSA33..NAP200811

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iASA33,GSA33..NAP200811-201301

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iASA33,GSA33..NAP200811-201301

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iASA33,GSA33..NAP200811-201301

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iASA33,GSA33..NAP200811-201301

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iASA33,GSA33..NAP200811-201301

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iASA33,GSA33..NAP200811-201301

36121COVER, TRANSFER CASE, NO.1

main36121-42011iGSA33..NAP200811

main36121-52020iASA33..NAP200811

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iASA33,GSA33..NAP200811

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iASA33,GSA33..NAP200811-201301

36128BDEFLECTOR, BREATHER OIL

main36128-42010iASA33,GSA33..NAP200811-201301

90178A0042

main90178-A0042

19 parts on this diagram · 1 diagram in section
