AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010201204-201408

89170ACOMPUTER ASSY, AIRBAG

main89170-0R080201204-201205

main89170-0R081201205-201307

main89170-0R150201308

89173ASENSOR, AIRBAG, FRONT RH

main89173-09540201204

89174ASENSOR, AIRBAG, FRONT LH

main89173-09540201204

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06030201204-201408

89833SENSOR, AIRBAG, REAR RH

main89831-0R020201204

89834SENSOR, AIRBAG, REAR LH

main89831-0R020201204

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0R010201204

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0R010201204

89952COMPUTER, OCCUPANT DETECTION

main89952-35011201204-201408

90105A0031

main90105-A0031

90105A0096

main90105-A0096

90119A0319

main90119-A0319

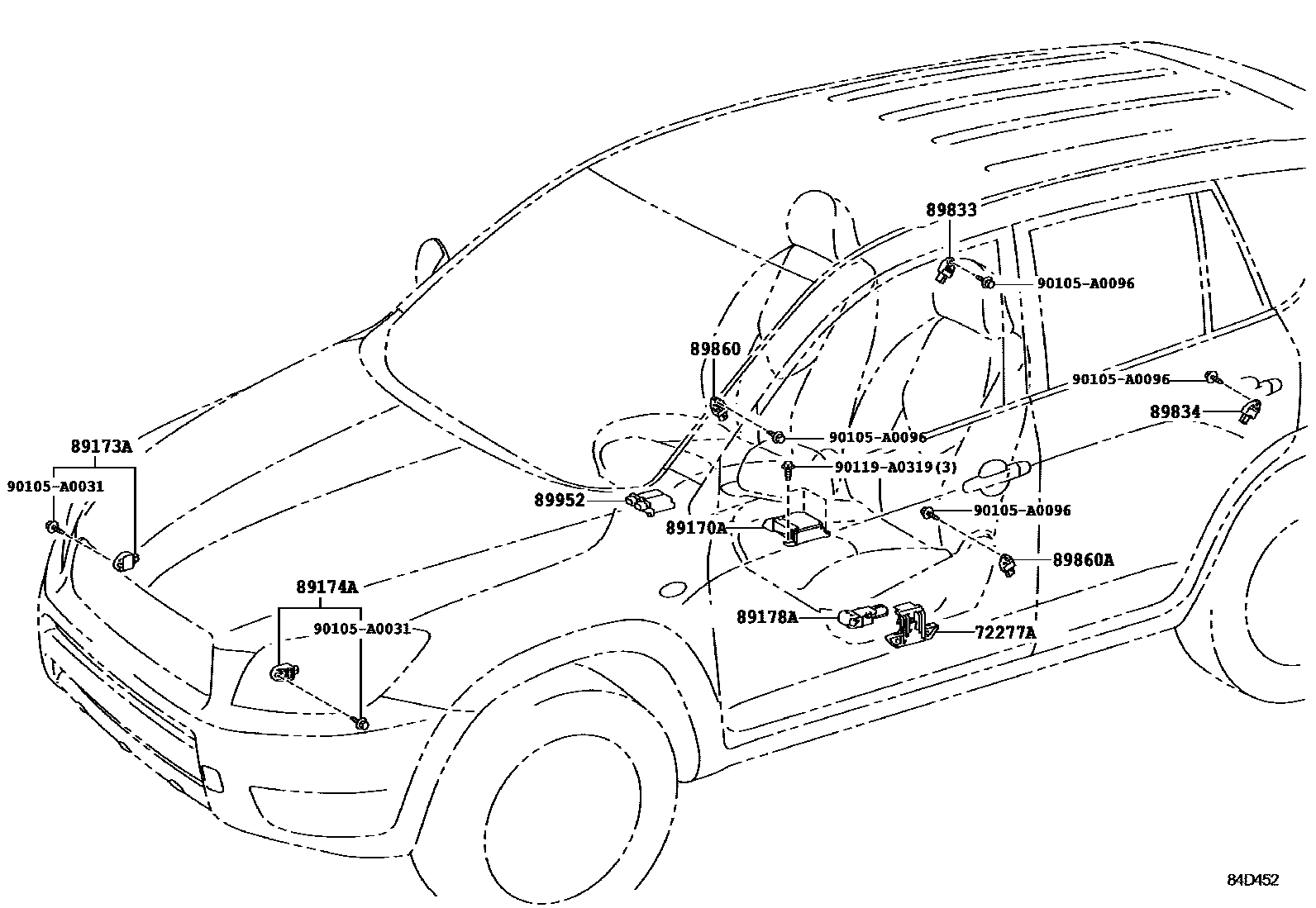

13 parts on this diagram · 1 diagram in section
