HEATING & AIR CONDITIONING - COMPRESSOR

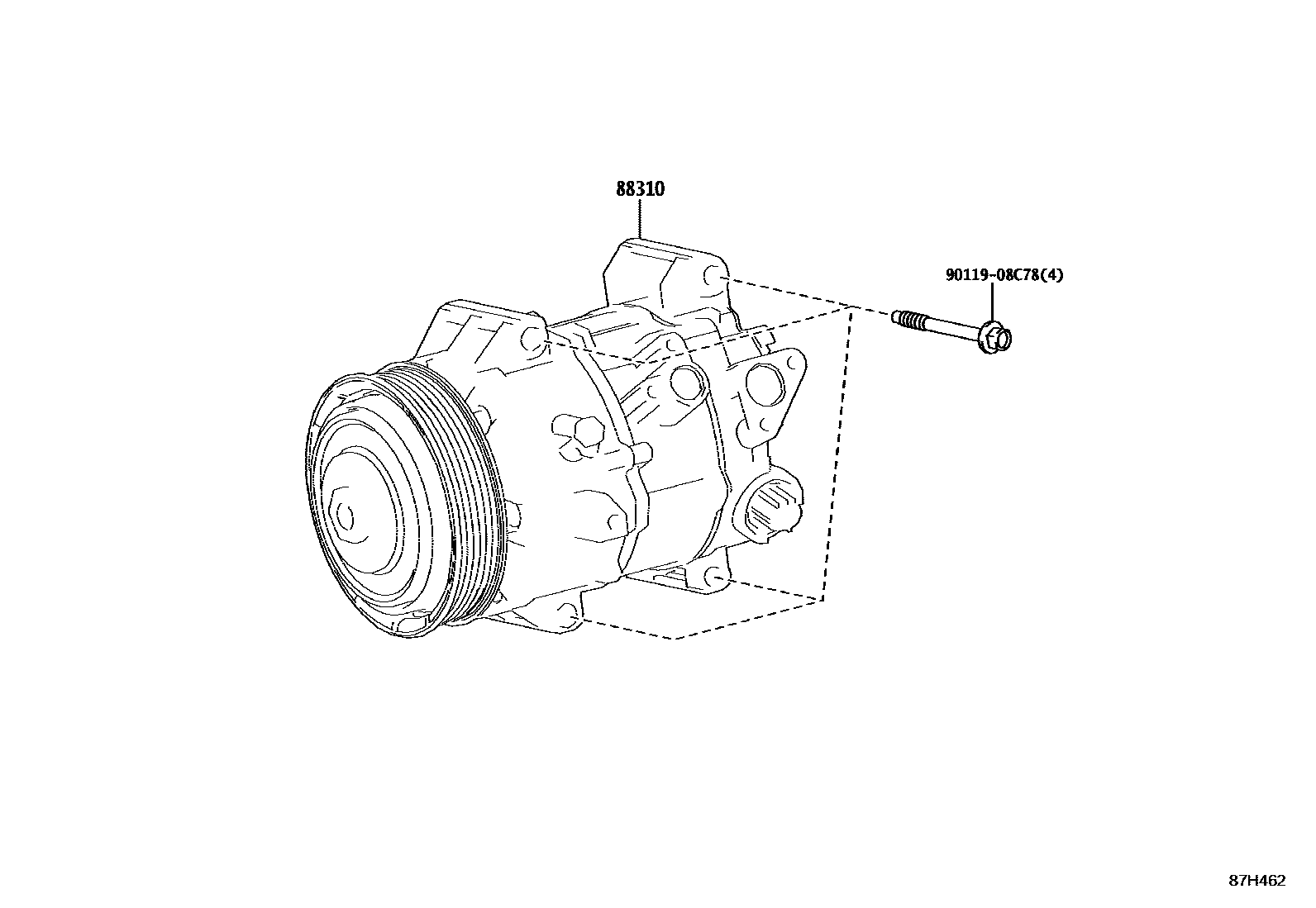

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-33330i201811-202007

main88310-33350i201811-202007

KOREA SPEC

9011908C78

main90119-08C78

2 parts on this diagram · 2 diagrams in section
