HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---MANUAL 0002 1CONTROL PANEL---AUTO 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR

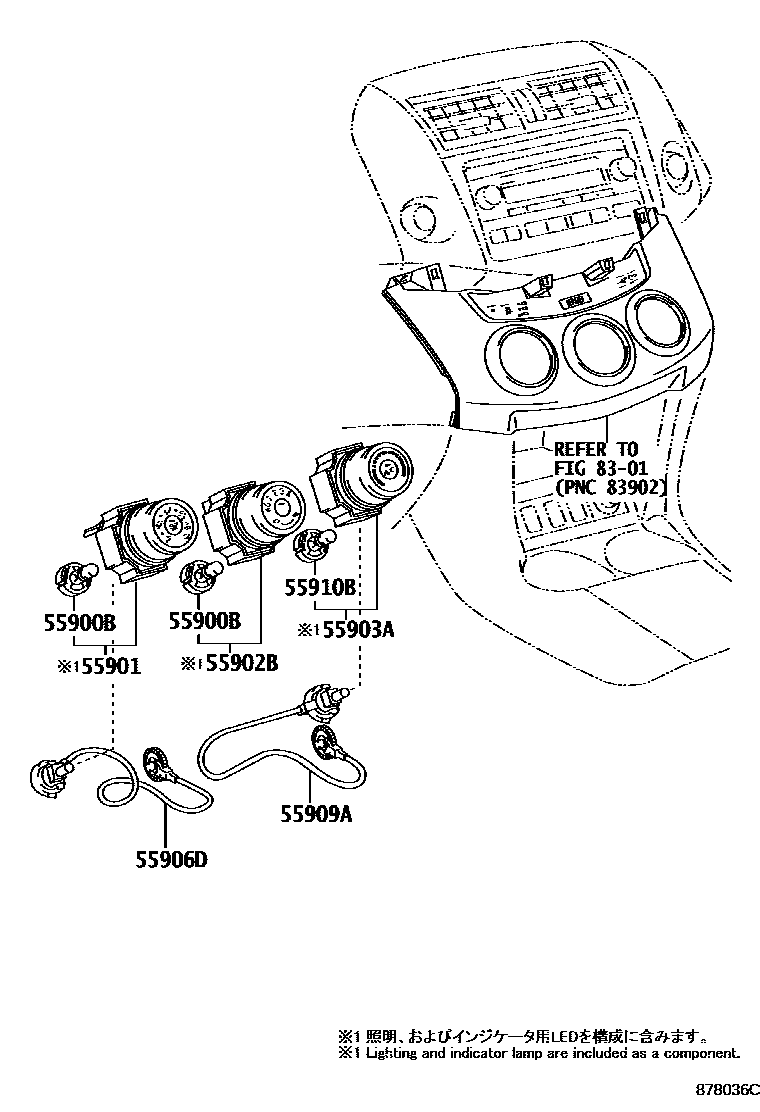

55900CONTROL ASSY, AIR CONDITIONER

main55900-42260iACA3#,GSA3#..JPP..LIMD200511-200708

MARK=55900-42260

main55900-42260-B0iACA3#,GSA3#..JPP..LIMD200708-200808

GRAY,TRIM1#,4#,MARK=55900-42260

main55900-42330-B0iASA3#,GSA3#..JPP..LIMD200808-200908

GRAY,TRIM1#,4#,MARK=55900-42330

main55900-42331-B0iASA3#,GSA3#..JPP..LIMD200908-201212

GRAY,TRIM1#,4#,MARK=55900-42331

55900BBULB, AIR CONDITIONER CONTROL

main90010-01122iACA3#,GSA3#..JPP..(SPO,X)200511-200808

14V 1.8W

55901BASE SUB-ASSY, HEATER CONTROL

main55901-42020iACA3#,GSA3#..JPP..(SPO,X)200511-200808

55902BCONTROL SUB-ASSY, HEATER

main55902-42040iACA3#,GSA3#..JPP..(SPO,X)200511-200808

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-42050iACA3#,GSA3#..JPP..(SPO,X)200511-200808

main55903-42130iASA3#..JPP..(SPO,X)201112-201212

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iACA3#,GSA3#..JPP..(SPO,X)200511-200808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iACA3#,GSA3#..JPP..(SPO,X)200511-200808

55910BBULB, HEATER CONTROL

main90010-01122iACA3#,GSA3#..JPP..(SPO,X)200511-200808

8301METER

→ Go to FIG 83-01

9 parts on this diagram · 5 diagrams in section
