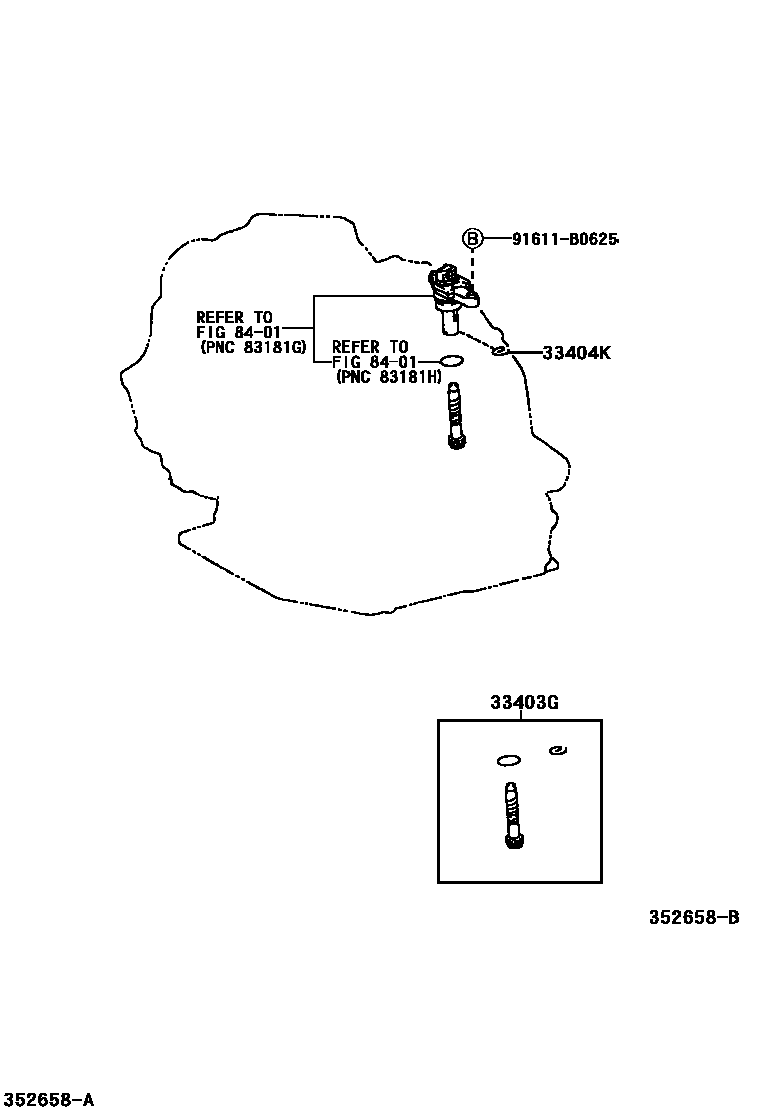

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-49085iACA26..ATM200008-200307

N=20,MARK 20:27

main33403-49095iACA21..ATM200008-200307

N=23,MARK 23:31

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iACA2#..ATM200008-200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0625

main91611-B0625

4 parts on this diagram · 1 diagram in section
