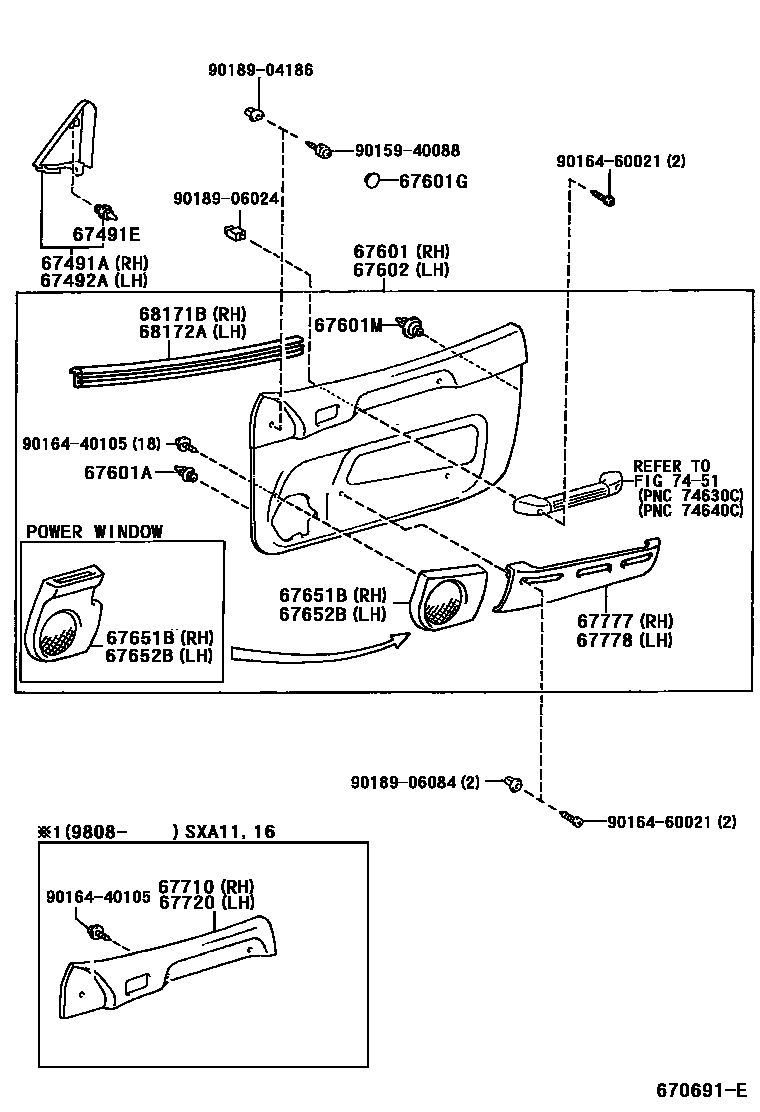

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-42010iSXA10,15199511

main67491-42020iSXA11,16199511

67491ERETAINER, DOOR TRIM

main67771-30070iSXA1#199511-199910

main90467-10167iSXA11,16199910

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-42010iSXA10,15199511

main67492-42020iSXA11,16199511

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-42010-B0iSXA10,15199601-199608

BLUISH GRAY,TRIM10

main67610-42011-B2iSXA10,15199608-199709

BLUISH GRAY,TRIM14

main67610-42020-B0iSXA10,15199511-199608

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM10

main67610-42021-B1iSXA10,15199608-199709

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM14

main67610-42040-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM11

main67610-42041-B2iSXA11,16199608-199709

BLUISH GRAY,TRIM15

main67610-42041-B3iSXA11,16199612-199709

BLUISH GRAY,TRIM16

main67610-42070-B0iSXA16..ATM199604-199607

PUERTORICO SPEC,BLUISH GRAY,TRIM1#

main67610-42080-B0iSXA11,16199511-199608

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM11

main67610-42081-B2iSXA11,16199608-199709

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM15

main67610-42081-B5iSXA11,16199612-199709

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM16

main67610-42081-B5iSXA11,16199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main67610-42220-B0iSXA15..HT199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main67610-42230-B1iSXA10,15199709-199712

SHADOW GRAY,TRIM1#

main67610-42231-B1iSXA10,15199712-199808

SHADOW GRAY,TRIM1#

main67610-42250-B1iSXA10,15199709-199712

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67610-42251-B1iSXA10,15199712-199808

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67610-42360-B0iSXA11,16199709

SHADOW GRAY,TRIM1#

main67610-42370-B0iSXA11,16199709

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67610-42460-B3iSXA10,15199808

SHADOW GRAY,TRIM11

main67610-42480-B3iSXA10,15199808

SHADOW GRAY,TRIM1#

main67610-42510-B0iSXA11,16199808

W(LEATHER SEAT & POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-16080iSXA11,16199511-199802

WHITE

main67771-16080iSXA16..ATM199604-199607

PUERTORICO SPEC

main67771-20110iSXA10,15199511-199802

GREEN

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-B1iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main90950-01746-P0iSXA1#199709-200008

SHADOW GRAY,TRIM1#

67601MRETAINER, DOOR TRIM, NO.2

main67771-33020iSXA11,16199709

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM10

main67620-42011-B2iSXA10,15199608-199709

BLUISH GRAY,TRIM14

main67620-42020-B0iSXA10,15199511-199608

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM10

main67620-42021-B1iSXA10,15199608-199709

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM14

main67620-42040-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM11

main67620-42041-B2iSXA11,16199608-199709

BLUISH GRAY,TRIM15

main67620-42041-B3iSXA11,16199612-199709

BLUISH GRAY,TRIM16

main67620-42070-B0iSXA16..ATM199604-199607

PUERTORICO SPEC,BLUISH GRAY,TRIM1#

main67620-42080-B0iSXA11,16199511-199608

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM11

main67620-42081-B2iSXA11,16199608-199709

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM15

main67620-42081-B5iSXA11,16199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main67620-42081-B5iSXA11,16199612-199709

W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM16

main67620-42220-B0iSXA15..HT199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main67620-42230-B1iSXA10,15199709-199712

SHADOW GRAY,TRIM1#

main67620-42231-B1iSXA10,15199712-199808

W/O(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-42250-B1iSXA10,15199709-199712

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67620-42251-B1iSXA10,15199712-199808

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67620-42360-B0iSXA11,16199709

SHADOW GRAY,TRIM1#

main67620-42370-B0iSXA11,16199709

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67620-42460-B3iSXA10,15199808

SHADOW GRAY,TRIM1#

main67620-42480-B3iSXA10,15199808

W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

main67620-42510-B0iSXA11,16199808

W(LEATHER SEAT & POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#

67651BGRILLE, SPEAKER DOOR, RH

main67651-42010-B0iSXA1#199511-199709

W/O(POWER WINDOW),BLUISH GRAY,TRIM1#

main67651-42010-B1iSXA1#199709-200008

W/O(POWER WINDOW),SHADOW GRAY,TRIM1#

main67651-42020-B0iSXA16..ATM199604-199607

PUERTORICO SPEC,BLUISH GRAY,TRIM1#

main67651-42030-B0iSXA1#199511-199709

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67651-42030-B1iSXA1#199709-200008

W(POWER WINDOW),SHADOW GRAY,TRIM1#

67652BGRILLE, SPEAKER DOOR, LH

main67652-42010-B0iSXA1#199511-199709

W/O(POWER WINDOW),BLUISH GRAY,TRIM1#

main67652-42010-B1iSXA1#199709-200008

W/O(POWER WINDOW),SHADOW GRAY,TRIM1#

main67652-42020-B0iSXA16..ATM199604-199607

PUERTORICO SPEC,BLUISH GRAY,TRIM1#

main67652-42030-B0iSXA1#199511-199709

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67652-42030-B1iSXA1#199709-200008

W(POWER WINDOW),SHADOW GRAY,TRIM1#

67710PANEL ASSY, FRONT DOOR TRIM, UPPER RH

main67710-42090-B3iSXA10,15199808

SHADOW GRAY,TRIM11

main67710-42110-B0iSXA11,16199808

SHADOW GRAY,TRIM1#

67720PANEL ASSY, FRONT DOOR TRIM, UPPER LH

main67720-42090-B3iSXA10,15199808

SHADOW GRAY,TRIM1#

main67720-42110-B0iSXA11,16199808

SHADOW GRAY,TRIM1#

67777POCKET, FRONT DOOR TRIM, RH

main67777-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main67777-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

main67777-42020-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main67777-42020-B1iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

67778POCKET, FRONT DOOR TRIM, LH

main67778-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main67778-42010-B1iSXA10,15199709-200008

SHADOW GRAY,TRIM1#

main67778-42020-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main67778-42020-B1iSXA11,16199709-200008

SHADOW GRAY,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-42010iSXA10,15199511

main68171-42020iSXA11,16199511

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-42010iSXA10,15199511

main68172-42020iSXA11,16199511

7451ARMREST & VISOR

→ Go to FIG 74-51

9015940088

main90159-40088

9016440105

main90164-40105

9016460021

main90164-60021

9018904186

main90189-04186

9018906024

main90189-06024

9018906084

main90189-06084

23 parts on this diagram · 2 diagrams in section
