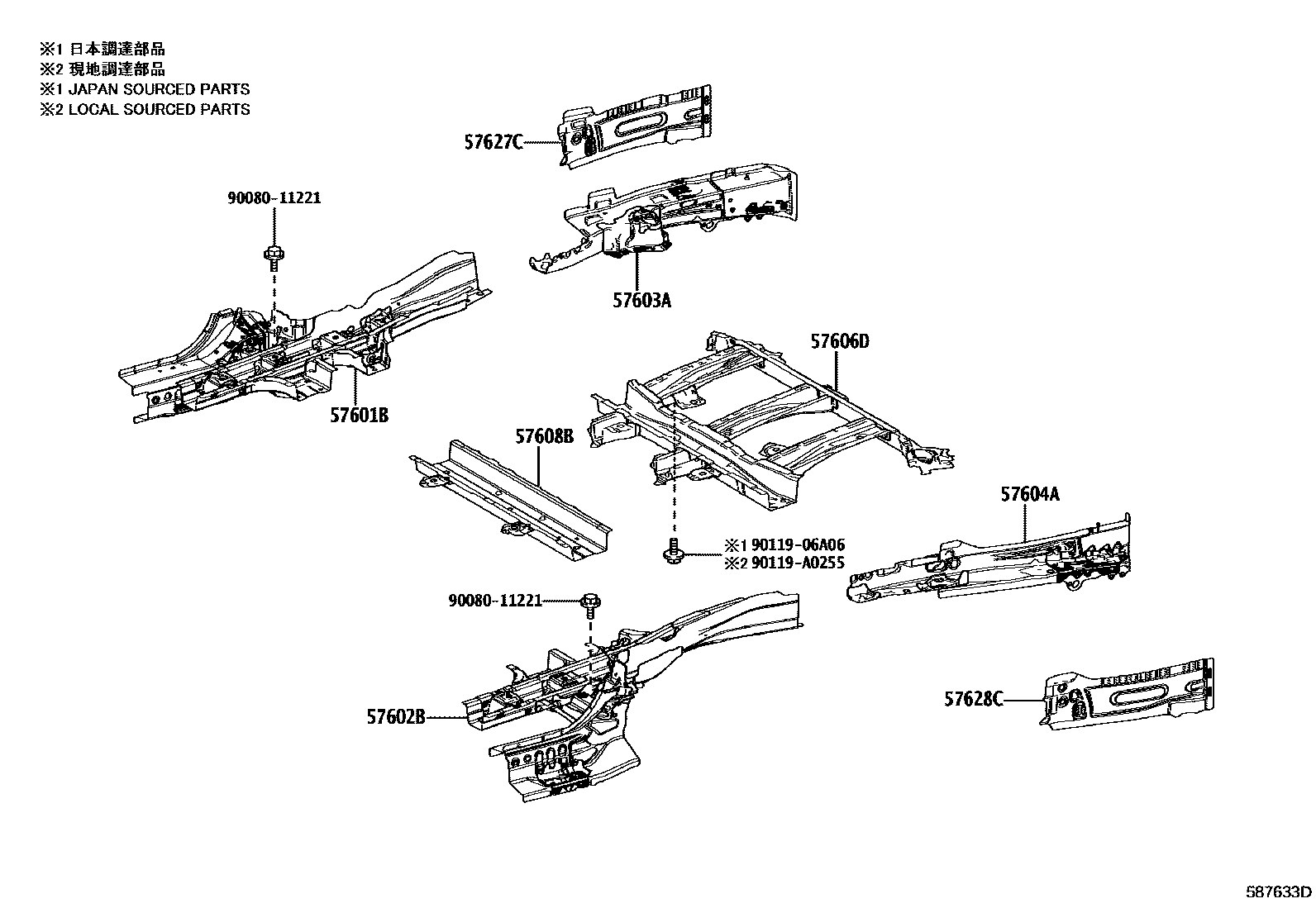

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR PANEL 0004 1LOWER BACK PANEL

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-08040iAXLH4#202410

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-08060iAXLH4#202410

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-08030iAXLH4#202410

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-08030iAXLH4#202410

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-08060iAXLH4#..07S202410

main57606-08070iAXLH4#..08S202410

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-08030iAXLH4#..07S202410

main57608-08040iAXLH4#..08S202410

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-08020iAXLH4#202410

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-08030iAXLH4#202410

9008011221

main90080-11221

9011906A06

main90119-06A06

90119A0255

main90119-A0255

11 parts on this diagram · 4 diagrams in section
