Toyota 841420 — FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046ANUT, CASTLE(FOR TIE ROD END)
45319INSULATOR, STEERING GEAR HEAT
45535ACLAMP(FOR STEERING RACK BOOT)
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537BNUT, RACK END LOCK
9011912441
90119A0273
90119A0467
90177A0012
9418801201
9538103025
16 parts on this diagram · 1 diagram in section

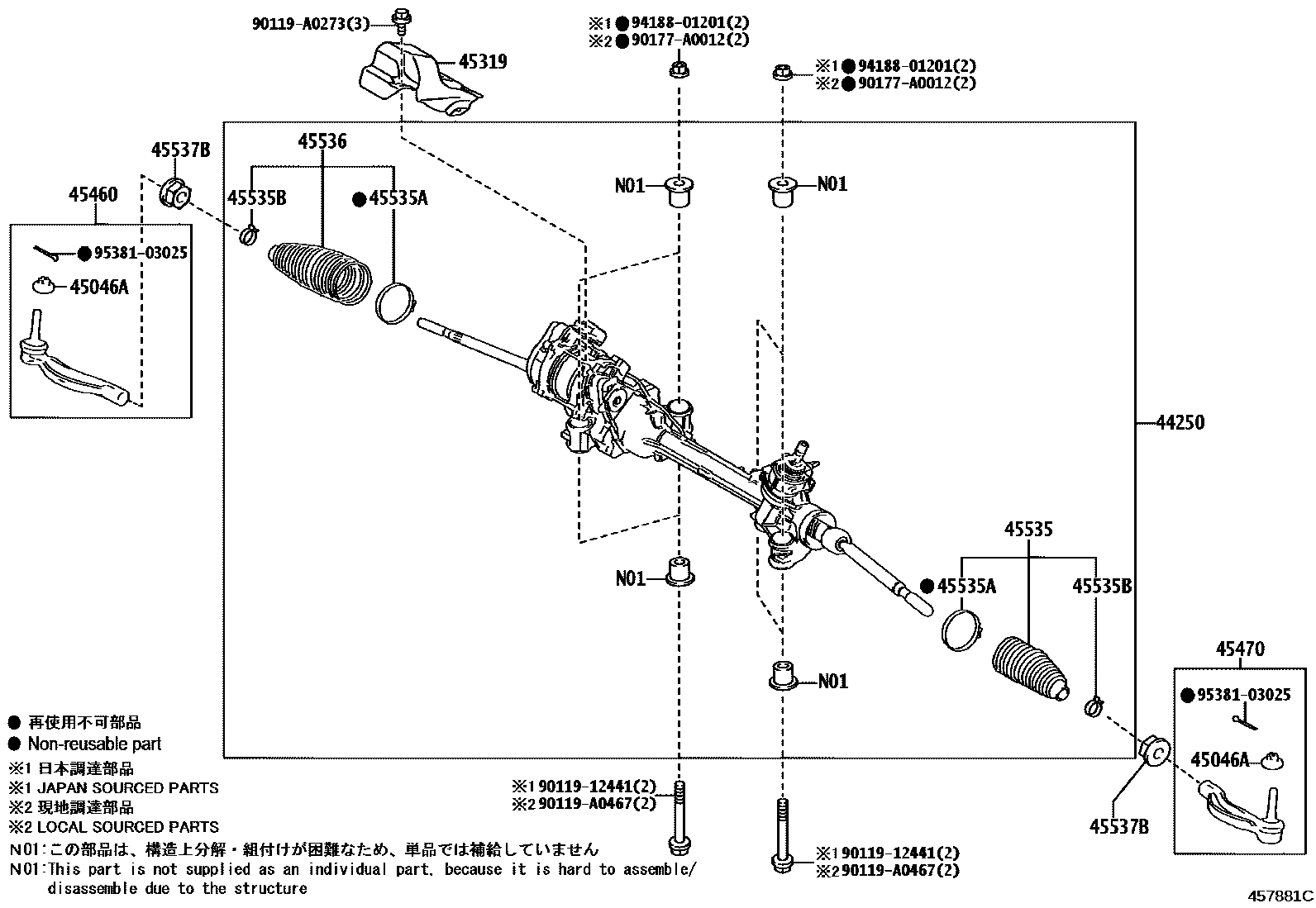

FRONT STEERING GEAR & LINK for Toyota 841420
This section contains 16 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota 841420. Key components include: GEAR ASSY, POWER STEERING(FOR RACK & PINION), NUT, CASTLE(FOR TIE ROD END), INSULATOR, STEERING GEAR HEAT, ROD ASSY, TIE, RH, ROD ASSY, TIE, LH.
