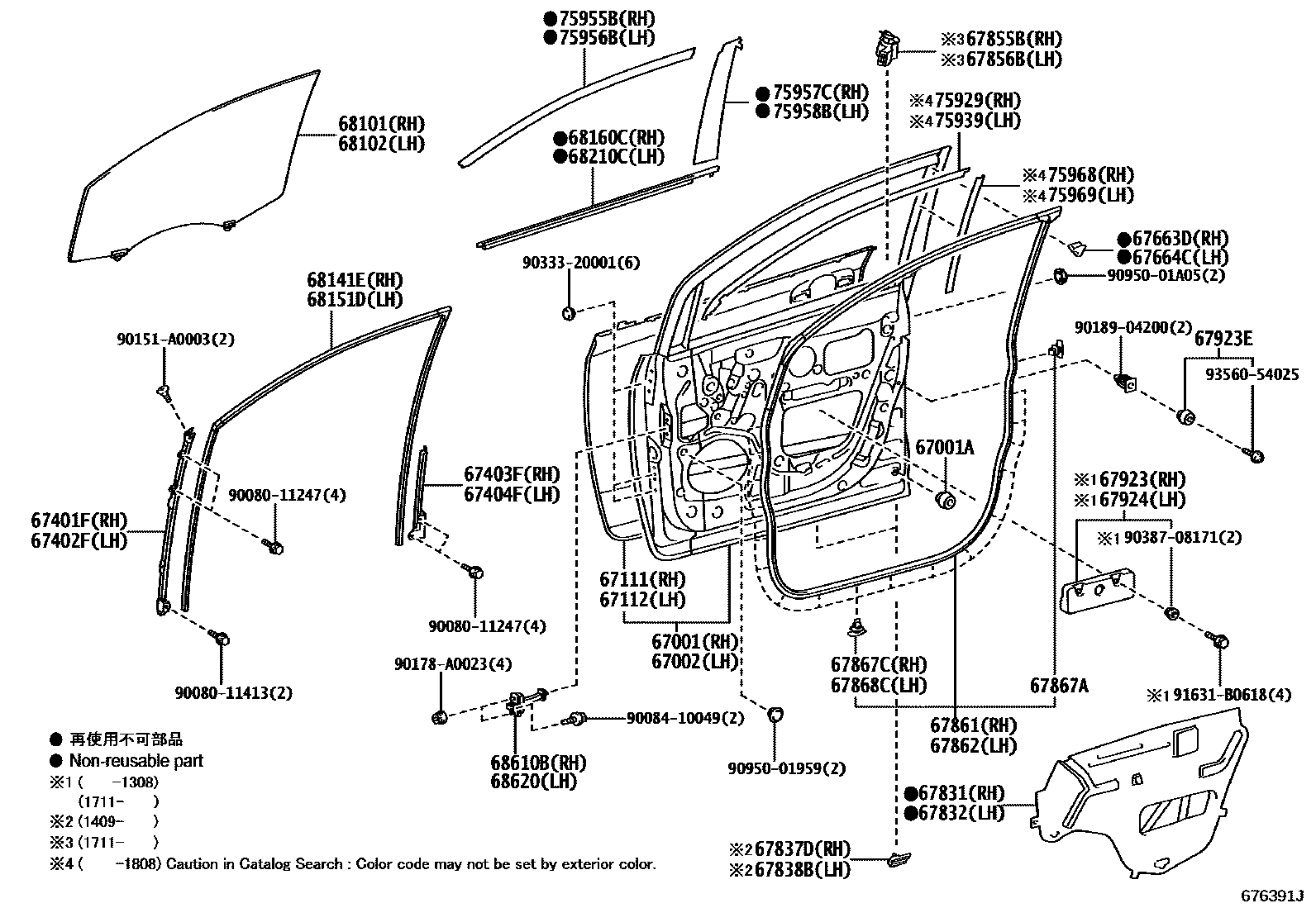

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-08040iGSL30,33;GSL35..LE,XLE201001-201409

main67001-08060iGSL3#201409-201608

main67001-08061iGSL3#201709-201711

main67001-08070iGSL3#201711-202009

67001ACUSHION, FRONT DOOR PANEL

main90084-54012×2iGSL3#201409-201608

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-08040iASL30;GSL35..STD201001-201308

main67002-08060iGSL3#201409-201608

main67002-08061iGSL3#201709-201711

main67002-08070iGSL3#201711-202009

67111PANEL, FRONT DOOR, OUTER RH

main67111-08020iASL30;GSL35..STD201001-201308

67112PANEL, FRONT DOOR, OUTER LH

main67112-08020iASL30;GSL35..STD201001-201308

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-08020iGSL3#201711-202009

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-08020iASL30;GSL35..STD201001-201308

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-08020iASL30;GSL35..STD201001-201308

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-08020iASL30;GSL35..STD201001-201308

67663DGARNISH, DOOR FRAME, RH

main67663-08010iGSL3#201409-201608

67664CGARNISH, DOOR FRAME, LH

main67664-08010iASL30;GSL35..STD201001-201308

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-08020iGSL3#201409-201608

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-08020iGSL3#201711-202009

67837DSEAL, FRONT DOOR VENT, RH

main67837-08020×2iGSL3#201409-201608

67838BSEAL, FRONT DOOR VENT, LH

main67838-08020×2iGSL3#201711-202009

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-08020iGSL3#201711-202009

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-08020iGSL3#201711-202009

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-08020iASL30;GSL35..STD201001-201308

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-08020iGSL3#201409-201608

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-A0027×2iASL30;GSL35..STD201001-201308

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iASL30;GSL35..STD201001-201308

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iASL30;GSL35..STD201001-201308

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-08010iGSL3#201711-202009

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iGSL3#201711-202009

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-08010iGSL3#201711-202009

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-08050iASL30;GSL35..STD201001-201308

*HSEA,T=5.0,GREEN

main68101-08051iGSL3#201409-201608

*HSEA,T=5.0,GREEN

main68101-08060iGSL30,35..07S..XLE201711-202009

HIGH GRADE PACKAGE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-08050iGSL30,33;GSL35..LE,XLE201001-201406

*HSEA,T=5.0,GREEN

main68102-08051iGSL3#201409-201608

*HSEA,T=5.0,GREEN

main68102-08060iGSL30,35..07S..XLE201711-202009

HIGH GRADE PACKAGE

68141ERUN, FRONT DOOR GLASS, RH

main68141-08020iGSL3#201711-202009

68151DRUN, FRONT DOOR GLASS, LH

main68151-08020iGSL3#201711-202009

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-08020iGSL3#201711-202009

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-08020iASL30;GSL35..STD201001-201308

68610BCHECK ASSY, FRONT DOOR, RH

main68610-08020iASL30,GSL3#201001-201009

main68610-08021iASL30;GSL35..STD201010-201308

68620CHECK ASSY, FRONT DOOR, LH

main68620-08020iASL30,GSL3#201001-201009

main68620-08021iGSL30,33;GSL35..LE,XLE201010-201409

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-08010iASL30,GSL3#201001-201101

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-08010iASL30;GSL35..STD201101-201308

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-08010iGSL3#201711-202009

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-08010iGSL3#201608-201711

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-08010iGSL30,33;GSL35..LE,XLE201001-201409

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-08010iASL30;GSL35..STD201001-201308

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-08010iGSL3#201409-201608

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-08010iGSL3#201711-201808

0 OR 1PIECE,REF.ILL.

9008011247

main90080-11247

9008011413

main90080-11413

9008410049

main90084-10049

90151A0003

main90151-A0003

90178A0023

main90178-A0023

9018904200

main90189-04200

9033320001

main90333-20001

9038708171

main90387-08171

9095001959

main90950-01959

9095001A05

main90950-01A05

91631B0618

main91631-B0618

9356054025

main93560-54025

53 parts on this diagram · 2 diagrams in section
