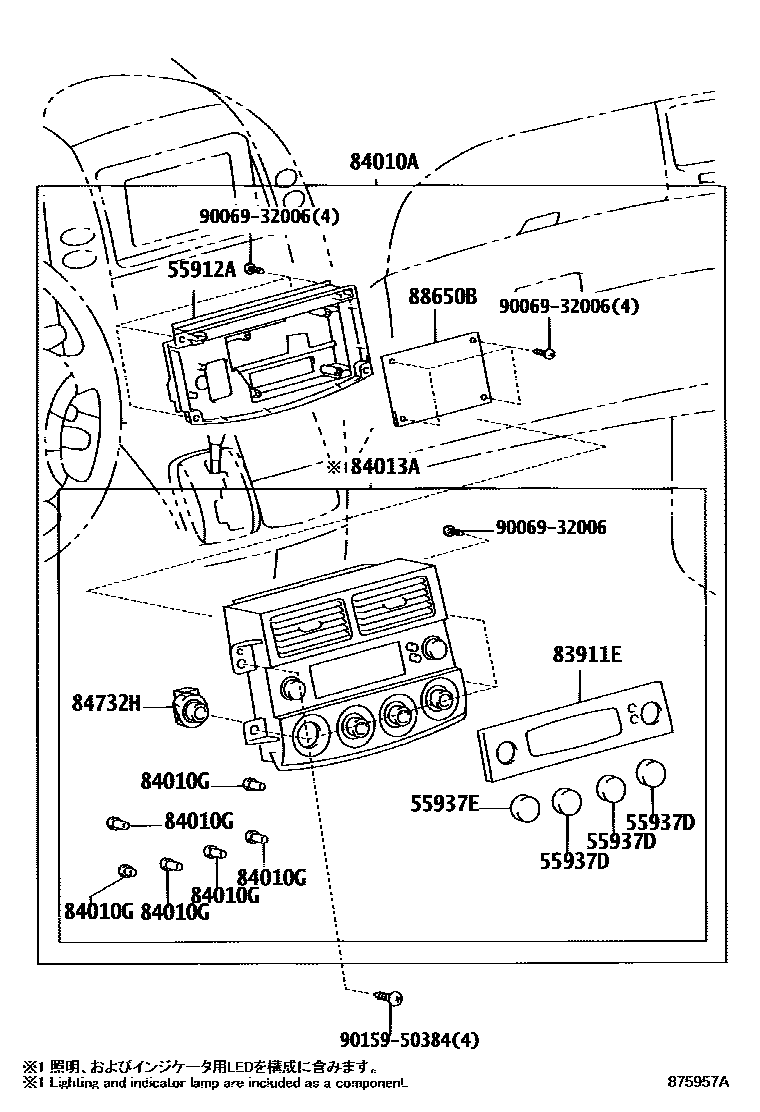

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1FRONT CONTROL 0003 1REAR CONTROL 0004 1FRONT AIR DUCT 0005 1REAR AIR DUCT 0006 1SENSOR

55912AHOUSING, HEATER CONTROL

main55912-08020iMCL2#..CE,LE200509-200612

main55912-08040iMCL20,25..XLE200301-200509

55937DKNOB, CENTER CLUSTER MODULE, NO.1

main55937-08010×3iMCL2#..CE,LE200301-200509

55937EKNOB, CENTER CLUSTER MODULE, NO.2

main55937-08020iMCL2#..CE,LE200509-200612

83911EORNAMENT, CLOCK

main83911-08010iMCL2#..CE,LE200301-200409

main83911-08050iGSL2#..CE,LE200612

main83911-08020iMCL20,25..LE200301-200408

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main83911-08040supersedes 83911-08070iMCL20,25..XLE200301-200408

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main83911-08060iMCL20,25..LE200509-200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main83911-08080supersedes 83911-08070iMCL20,25..XLE200509-200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-08010iMCL2#..CE,LE200301-200409

main84010-08050iMCL2#..CE,LE200409-200509

main84010-08090iMCL2#..CE,LE200509-200612

main84010-08130iGSL2#..CE,LE200612

main84010-08020iMCL20,25..LE200301-200408

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84010-08040supersedes 84010-08110iMCL20,25..XLE200301-200408

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84010-08060iMCL20,25..LE200408-200509

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84010-08080supersedes 84010-08110iMCL20,25..XLE200408-200509

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84010-08100iMCL20,25..LE200509-200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main84010-08120supersedes 84010-08110iMCL20,25..XLE200509-200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main84010-08140iGSL20,25..LE200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main84010-08160supersedes 84010-08150iGSL20,25..XLE200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

84010GBULB, INTEGRATION CONTROL & PANEL

main90011-11032×5iMCL2#..CE,LE200301-200509

14V 1.02W

main90011-11034iMCL2#..CE,LE200509-200612

14V 0.82W

84013APANEL SUB-ASSY, INTEGRATION

main84013-08011iMCL2#..CE,LE200301-200409

main84013-08050iMCL2#..CE,LE200409-200509

main84013-08090iGSL2#..CE,LE200612

main84013-08021iMCL20,25..LE200301-200408

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84013-08041supersedes 84013-08070iMCL20,25..XLE200301-200408

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84013-08060iMCL20,25..LE200408-200509

CLEARANCE & BACK SONER-4-CORNER & BACK; CLEARANCE & BACK SONER-RR-CORNER & BACK

main84013-08080supersedes 84013-08070iGSL20,25..XLE200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main84013-08100iMCL20,25..LE200509-200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

84732HSWITCH, HEATER BLOWER

main84732-08070iMCL2#..CE,LE200301-200509

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-08060iMCL2#..CE,LE200301-200409

main88650-08070iMCL20,25..XLE200301-200408

main88650-08080iMCL2#..CE,LE200409-200509

main88650-08090iMCL20,25..XLE200408-200509

main88650-08111iMCL20,25..XLE200509-200612

main88650-08121iMCL2#..CE,LE; MCL20,25..LE200509-200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main88650-08130iGSL2#..CE,LE; GSL20,25..LE200612

CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK); CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

main88650-08140iGSL20,25..XLE200612

9006932006

main90069-32006

9015950384

main90159-50384

11 parts on this diagram · 6 diagrams in section
