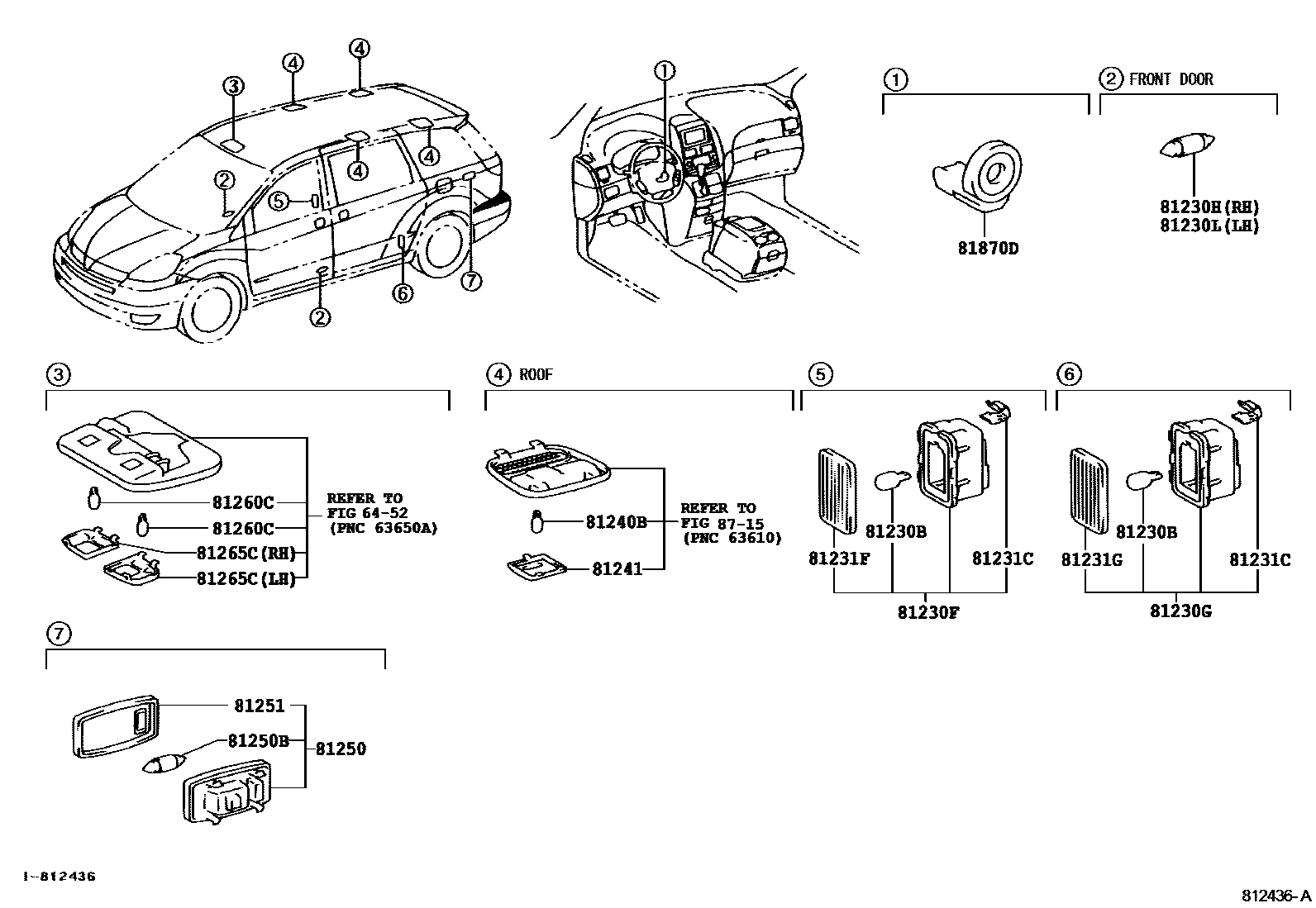

INTERIOR LAMP
6452ROOF HEADLINING & SILENCER PAD
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81230FLAMP ASSY, REAR DOOR COURTESY, RH
main81230-0C020iMCL2#; MCL20..LE..USA; MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND200301-200509
AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL); CE PACKAGE
81230GLAMP ASSY, REAR DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 6W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 6W
81231CCLIP, COURTESY LAMP
81231FLENS (FOR REAR DOOR COURTESY LAMP, RH)
main81231-0C010iMCL2#; MCL20..LE..USA; MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND200301-200509
AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL); CE PACKAGE
81231GLENS (FOR FRONT DOOR COURTESY LAMP, LH)
81240BBULB, ROOM LAMP, NO.1
12V 5W; 12V 5W,OVER-HEAD CONSOLE-PSD(1)&PBD&TRIP&HOME LIMK&REAR AUDIO-WITH; 12V 5W,OVER-HEAD CONSOLE-PSD(1)&PBD&TRIP&HOME LIMK&TELEVISION & VTR-WITH; 12V 5W,OVER-HEAD CONSOLE-PSD(1)&TRIP&HOME LINK&REAR AUDIO-WITH; 12V 5W,OVER-HEAD CONSOLE-PSD(1)&TRIP&HOME LINK&TELEVISION & VTR-WITH; 12V 5W,OVER-HEAD CONSOLE-PSD(2)&TRIP&HOME LINK&REAR AUDIO-WITH; 12V 5W,OVER-HEAD CONSOLE-PSD(2)&TRIP&HOME LINK&TELEVISION & VTR-WITH; 12V 5W,OVER-HEAD CONSOLE-TRIP&HOME LINK; 12V 5W,OVER-HEAD CONSOLE-TRIP&HOME LINK&REAR AUDIO-WITH; 12V 5W,OVER-HEAD CONSOLE-TRIP&HOME LINK&TELEVISION & VTR-WITH
12V 8W; 12V 8W,OVER-HEAD CONSOLE-PSD(1)&PBD&TRIP&HOME LIMK&REAR AUDIO-WITH; 12V 8W,OVER-HEAD CONSOLE-PSD(1)&PBD&TRIP&HOME LIMK&TELEVISION & VTR-WITH; 12V 8W,OVER-HEAD CONSOLE-PSD(1)&TRIP&HOME LINK&REAR AUDIO-WITH; 12V 8W,OVER-HEAD CONSOLE-PSD(1)&TRIP&HOME LINK&TELEVISION & VTR-WITH; 12V 8W,OVER-HEAD CONSOLE-PSD(2)&TRIP&HOME LINK&REAR AUDIO-WITH; 12V 8W,OVER-HEAD CONSOLE-PSD(2)&TRIP&HOME LINK&TELEVISION & VTR-WITH; 12V 8W,OVER-HEAD CONSOLE-TRIP&HOME LINK; 12V 8W,OVER-HEAD CONSOLE-TRIP&HOME LINK&REAR AUDIO-WITH; 12V 8W,OVER-HEAD CONSOLE-TRIP&HOME LINK&TELEVISION & VTR-WITH
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81251LENS, ROOM LAMP, NO.2
81260CBULB(FOR MAP LAMP)
12V 8W
81265CLENS, MAP LAMP, NO.1
RH
LH
81870DLAMP ASSY, KEY CYLINDER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
18 parts on this diagram · 1 diagram in section
