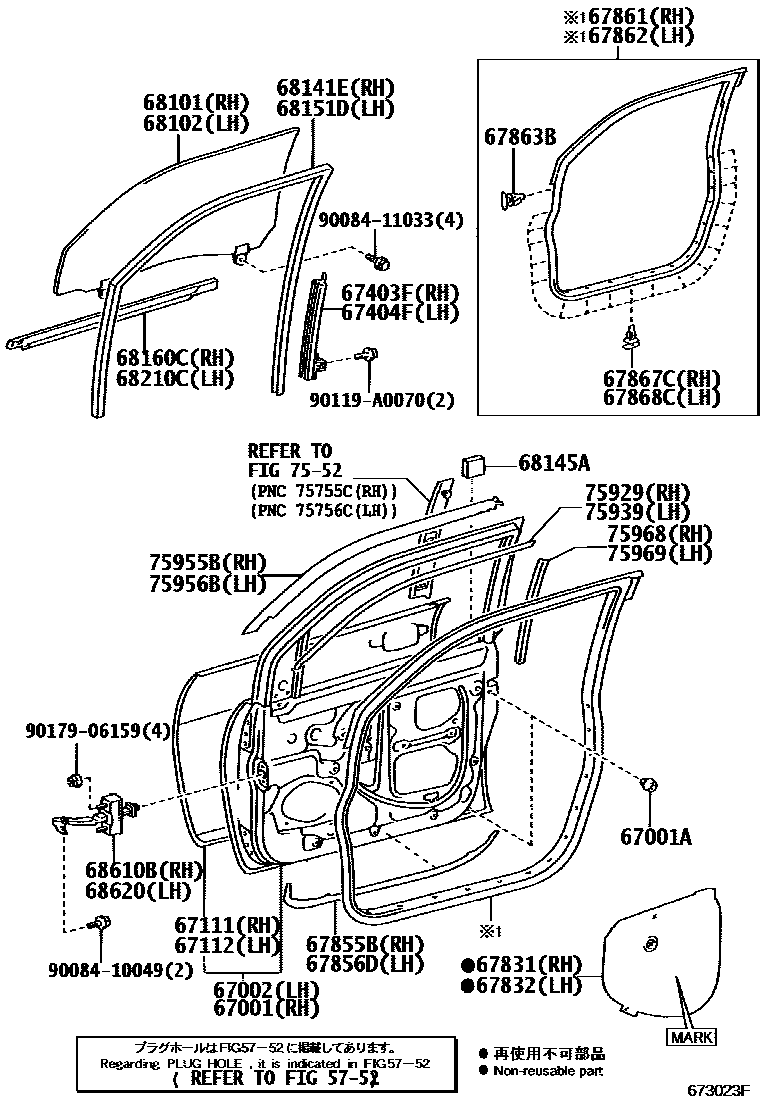

FRONT DOOR PANEL & GLASS
5752HOLE PLUG
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
MARK 67831-08030 RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
MARK 67832-08030 LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856DPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=5.0,GREEN
*HSEA,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=5.0,GREEN
*HSEA,T=5.0,GREEN; *HSEA,T=5.0,GREEN,BACK GLASS-PRIVATE
68141ERUN, FRONT DOOR GLASS, RH
68145ACUSHION, FRONT DOOR WINDOW
68151DRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
7552MOULDING
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
9008410049
main90084-10049
9008411033
main90084-11033
90119A0070
main90119-A0070
9017906159
main90179-06159
37 parts on this diagram · 2 diagrams in section
