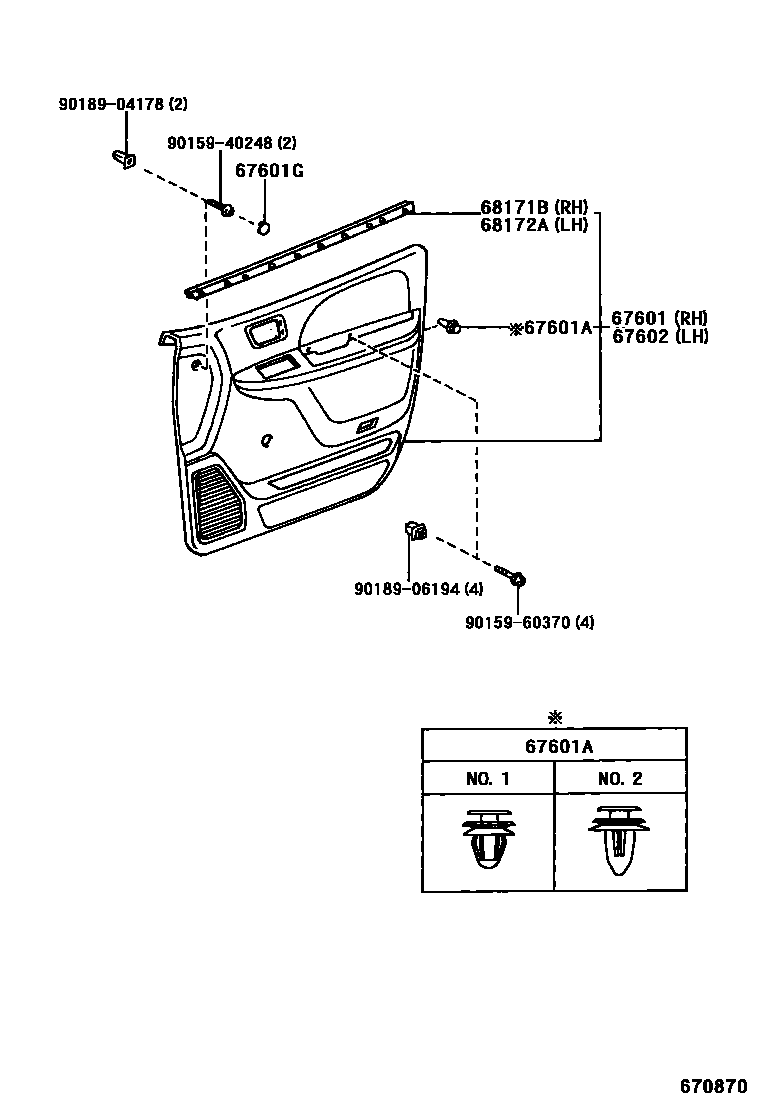

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-08010-B1iMCL10..WG..CE199708-200008

BLUISH GRAY,TRIM1#

main67610-08010-E1iMCL10..CE199708-200008

OAK,TRIM4#

main67610-08020-B1iMCL10..LE199708-200008

BLUISH GRAY,TRIM1#

main67610-08020-E1iMCL10..LE199708-200008

OAK,TRIM4#

main67610-08030-B1iMCL10..WG..CE199708-200008

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67610-08030-E1iMCL10..WG..CE199708-200008

W(POWER WINDOW),OAK,TRIM4#

main67610-08040-B1iMCL10..LE199708

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main67610-08040-E1iMCL10..LE199708

W(LEATHER SEAT),OAK,TRIM4#

main67610-08050-B0iMCL10..CE200008

BLUISH GRAY,TRIM1#

main67610-08050-E0iMCL10..CE200008

OAK,TRIM4#

main67610-08060-B0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,BLUISH GRAY,TRIM1#

main67610-08060-E0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,OAK,TRIM4#

main67610-08070-B0iMCL10..CE200008

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67610-08070-E0iMCL10..CE200008

W(POWER WINDOW),OAK,TRIM4#

main67610-08080-B0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,BLUISH GRAY,TRIM1#

main67610-08080-E0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,OAK,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-06030×4iMCL10199708

NO.1

main90467-10161×10iMCL10199708

NO.2

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-B1×2iMCL10..WG199708

BLUISH GRAY,TRIM1#

main90950-01746-E0×2iMCL10199708

OAK,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-08010-B1iMCL10..WG..CE199708-200008

BLUISH GRAY,TRIM1#

main67620-08010-E1iMCL10..CE199708-200008

OAK,TRIM4#

main67620-08020-B1iMCL10..LE199708-200008

BLUISH GRAY,TRIM1#

main67620-08020-E1iMCL10..LE199708-200008

OAK,TRIM4#

main67620-08030-B1iMCL10..WG..CE199708-200008

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67620-08030-E1iMCL10..WG..CE199708-200008

W(POWER WINDOW),OAK,TRIM4#

main67620-08040-B1iMCL10..LE199708

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main67620-08040-E1iMCL10..LE199708

W(LEATHER SEAT),OAK,TRIM4#

main67620-08050-B0iMCL10..CE200008

BLUISH GRAY,TRIM1#

main67620-08050-E0iMCL10..CE200008

OAK,TRIM4#

main67620-08060-B0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,BLUISH GRAY,TRIM1#

main67620-08060-E0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,OAK,TRIM4#

main67620-08070-B0iMCL10..CE200008

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67620-08070-E0iMCL10..CE200008

W(POWER WINDOW),OAK,TRIM4#

main67620-08080-B0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,BLUISH GRAY,TRIM1#

main67620-08080-E0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,OAK,TRIM4#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-08010iMCL10199708

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-08010iMCL10199708

9015940248

main90159-40248

9015960370

main90159-60370

9018904178

main90189-04178

9018906194

main90189-06194

10 parts on this diagram · 3 diagrams in section
