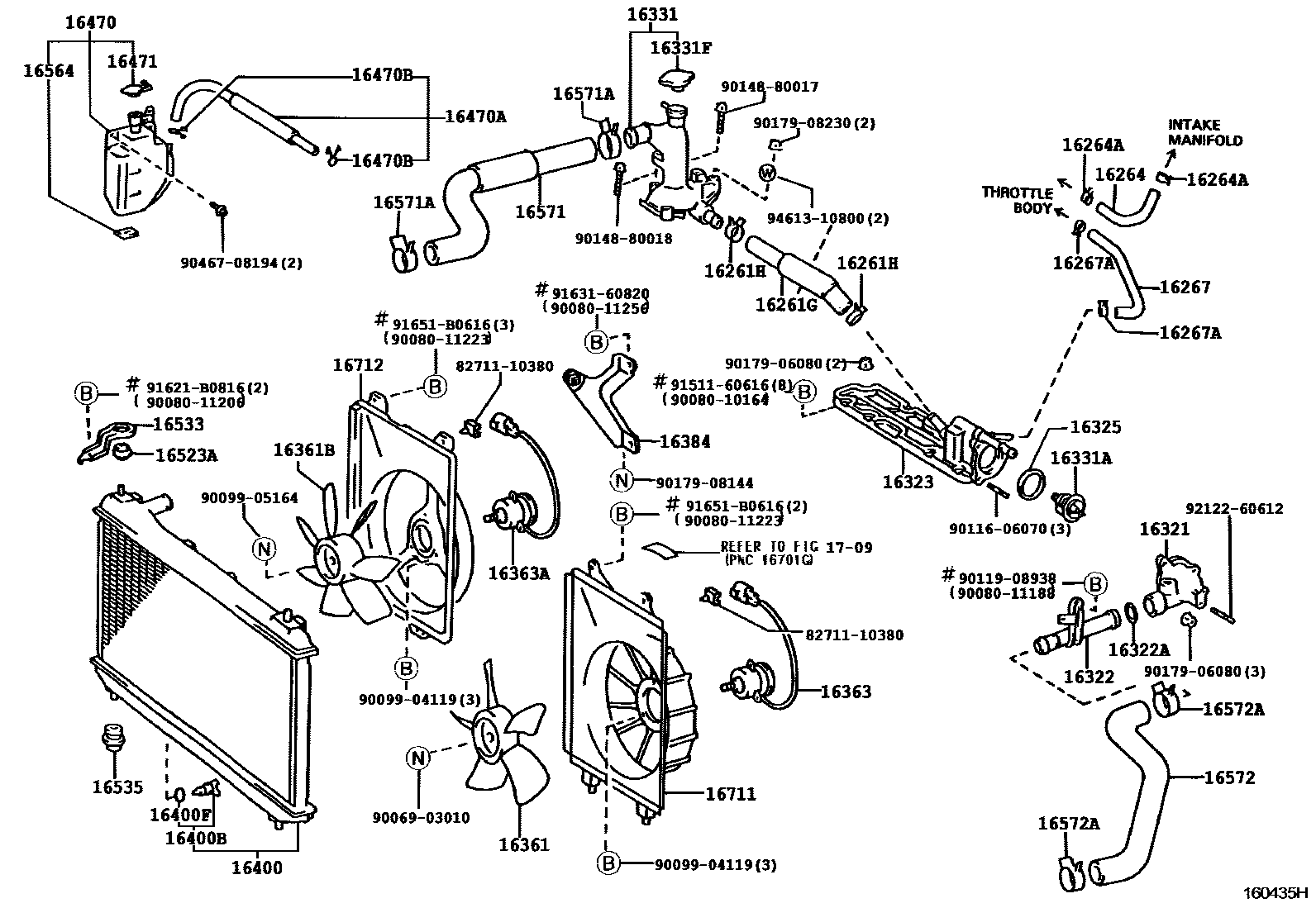

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261GHOSE, WATER BY-PASS, NO.1

main16261-0A010i1MZFE..MCL10199708-200008

(L)

main16261-20010i1MZFE..MCL10199708-200008

(J)

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-28007×2i1MZFE..MCL10200204

main90467-28008×2i1MZFE..MCL10199708-200204

16264HOSE, WATER BY-PASS, NO.2

main16264-0A010i1MZFE..MCL10199708-200008

main16264-0A020i1MZFE..MCL10200008

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96135-41300×2i1MZFE..MCL10199708-200204

main96135-51300×2i1MZFE..MCL10200204

16267HOSE, WATER BY-PASS, NO.3

main16267-0A010i1MZFE..MCL10199708-200008

main16267-0A020i1MZFE..MCL10200008

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main96135-41300×2i1MZFE..MCL10199708-200204

main96135-51300×2i1MZFE..MCL10200204

16321INLET, WATER

main16321-0A010i1MZFE..MCL10199708-200008

main16321-0A030i1MZFE..MCL10200008

16322PIPE, WATER INLET

main16322-0A020i1MZFE..MCL10199708-200008

main16322-0A030i1MZFE..MCL10200008

16322ARING, O(FOR WATER INLET)

main96761-35031i1MZFE..MCL10199708

16323HOUSING, WATER INLET

main16323-0A010i1MZFE..MCL10199708-200008

main16323-0A020i1MZFE..MCL10200008-200210

main16323-0A021i1MZFE..MCL10200210

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1MZFE..MCL10199708

16331OUTLET, WATER

main16304-0A010i1MZFE..MCL10199708

16331ATHERMOSTAT

main90916-03084i1MZFE..MCL10199708

*WAX 82-95

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-62090i1MZFE..MCL10199708

16361FAN

main16361-0A070i1MZFE..MCL10199708

MARK S1(TO SHROUD)

main16361-0A090i1MZFE..MCL10..WG199708

MARK T1(TO SHROUD)

16361BFAN, NO.2

main16361-0A080i1MZFE..MCL10199708

MARK S2(TO SHROUD)

main16361-0A090i1MZFE..MCL10..WG199708-200008

MARK T2(TO SHROUD)

16363MOTOR, COOLING FAN

main16363-0A070i1MZFE..MCL10199811

MARK S1(TO SHROUD)

main16363-20030i1MZFE..MCL10199708-199811

MARK S1(TO SHROUD)

main16363-20050i1MZFE..MCL10..WG199708

MARK T1(TO SHROUD)

16363AMOTOR, COOLING FAN, NO.2

main16363-0A080i1MZFE..MCL10199811

MARK S2(TO SHROUD)

main16363-20040i1MZFE..MCL10199708-199811

MARK S2(TO SHROUD)

main16363-20060i1MZFE..MCL10..WG199708-200008

MARK T2(TO SHROUD)

16384BRACKET, FAN BELT ADJUSTING BAR

main16384-20010i1MZFE..MCL10199708-200008

main16384-20020i1MZFE..MCL10200008

16400RADIATOR ASSY

main16400-0A071i1MZFE..MCL10199708-199802

main16400-0A072i1MZFE..MCL10199802-200008

main16400-0A210i1MZFE..MCL10200008

16400BPLUG, RADIATOR DRAIN COCK

main90080-34011i1MZFE..MCL10199708

16400FPACKING(FOR RADIATOR DRAIN COCK)

main90069-08019i1MZFE..MCL10199708

16470TANK ASSY, RADIATOR RESERVE

main16470-0A040i1MZFE..MCL10199708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-0A040i1MZFE..MCL10199708

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-12058×2i1MZFE..MCL10199708

16471CAP SUB-ASSY, RESERVE TANK

main16471-03010i1MZFE..MCL10199708

16523ACUSHION, RADIATOR SUPPORT

main16523-03010×2i1MZFE..MCL10199708

16533SUPPORT, RADIATOR, UPPER

main16533-0A020×2i1MZFE..MCL10199708

16535SUPPORT, RADIATOR, LOWER

main16535-0A020×2i1MZFE..MCL10200008

TOWING PACKAGE,(L)

main16535-0A030×2i1MZFE..MCL10199708

main16535-20010×2i1MZFE..MCL10200008

TOWING PACKAGE,(J)

16564CUSHION, RADIATOR RESERVE TANK

main16564-20010i1MZFE..MCL10199708

16571HOSE, RADIATOR, INLET

main16571-0A020i1MZFE..MCL10199708

(L)

main16571-20020i1MZFE..MCL10199708

(J)

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37002×2i1MZFE..MCL10199708-200204

main90467-37005×2i1MZFE..MCL10200204

16572HOSE, RADIATOR, OUTLET

main16572-0A020i1MZFE..MCL10199708

(L)

main16572-20020i1MZFE..MCL10199708

(J)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002×2i1MZFE..MCL10199708-200204

main90467-37005×2i1MZFE..MCL10200204

16711SHROUD, FAN

main16711-0A070i1MZFE..MCL10199708

16712SHROUD, FAN, NO.2

main16711-0A090i1MZFE..MCL10199708

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9006903010

main90069-03010

9008010164

main90080-10164

9008011188

main90080-11188

9008011206

main90080-11206

9008011223

main90080-11223

9008011256

main90080-11256

9009904119

main90099-04119

9009905164

main90099-05164

9011606070

main90116-06070

9011908938

main90119-08938

9014880017

main90148-80017

9014880018

main90148-80018

9017906080

main90179-06080

9017908144

main90179-08144

9017908230

main90179-08230

9046708194

main90467-08194

9151160616

main91511-60616

91621B0816

main91621-B0816

9163160820

main91631-60820

91651B0616

main91651-B0616

9212260612

main92122-60612

9461310800

main94613-10800

60 parts on this diagram · 3 diagrams in section
