MOULDING

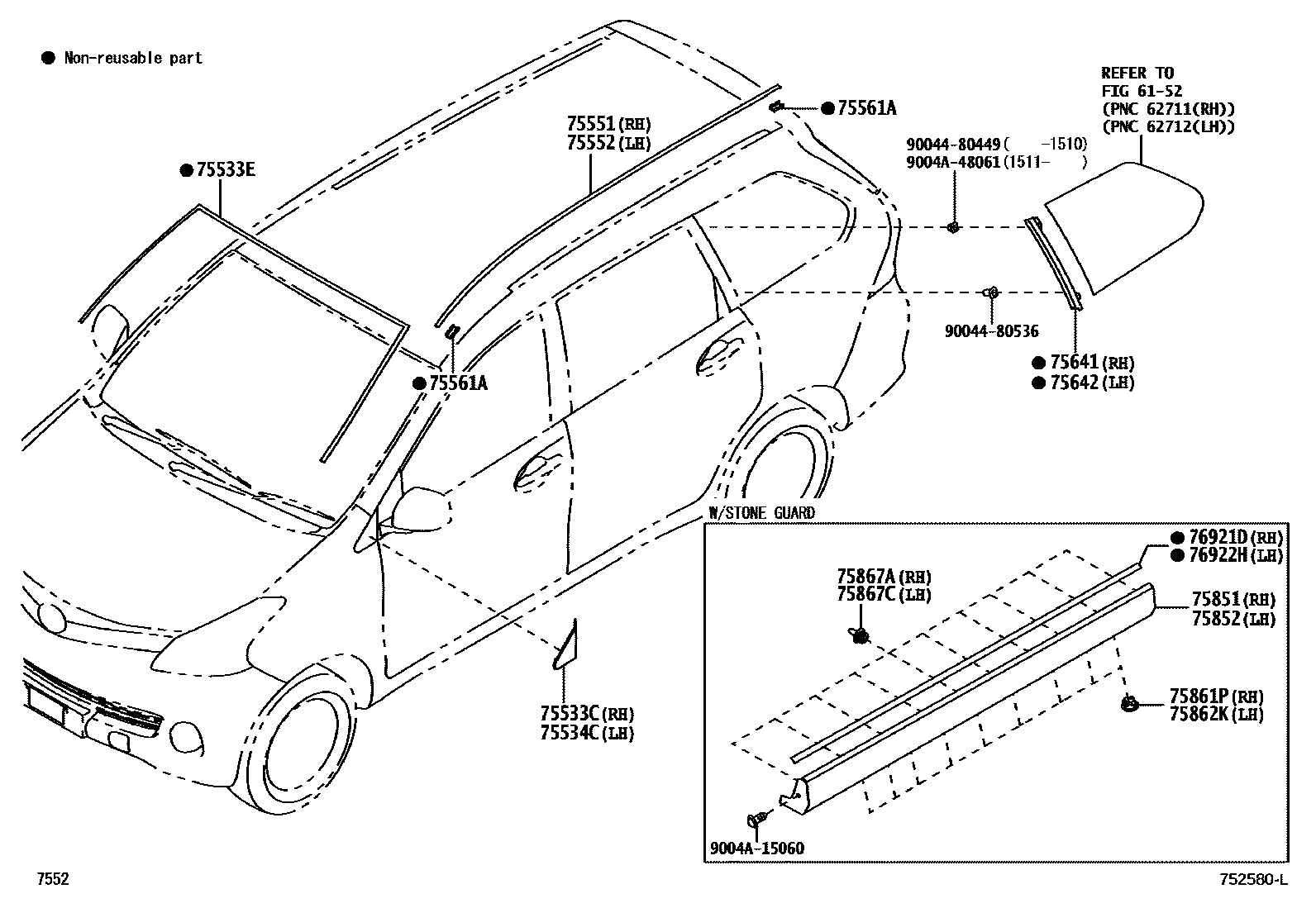

Parts diagram

6152SIDE WINDOW

→ Go to FIG 61-52

75533CGARNISH, FRONT PILLAR, OUTER RH

main62225-BZ040i201111-201507

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-BZ100i201111-201507

75534CGARNISH, FRONT PILLAR, OUTER LH

main62226-BZ040i201111-201507

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-BZ100i201111-201507

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-BZ080i201111-201507

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-BZ020×4i201111-201507

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-BZ020i201111-201507

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-BZ020i201111-201507

75851MOULDING, ROCKER PANEL, RH

main75851-BZ140i201111-201507

main75851-BZ380i201901-202110

75852MOULDING, ROCKER PANEL, LH

main75852-BZ130i201111-201507

main75852-BZ380i201901-202110

75861PRETAINER, ROCKER PANEL MOULDING, NO.1 RH

main76924-52021×9i201111-201508

main76924-BZ010×9i201512-201904

75862KRETAINER, ROCKER PANEL MOULDING, NO.1 LH

main76924-52021×9i201111-201508

main76924-BZ010×9i201512-201904

75867ACLIP, ROCKER PANEL MOULDING

main90044-67474×10i201111-201508

75867CCLIP, ROCKER PANEL MOULDING

main90044-67474×10i201111-201508

76921DPROTECTOR, SIDE MUDGUARD, NO.1

main76921-BZ060-B0i201111-201507

GRAY,1E7 ,W09,GRAY

main76921-BZ060-C0i201901-202110

BLACK,3Q3 ,X12,GRAY

main76921-BZ070-B0i201507-201901

GRAY,1E7 ,W09,BLACK

main76921-BZ070-C0i201111-201507

BLACK,1H2 ,X12,BLACK

main76921-BZ130i201901-202110

76922HPROTECTOR, SIDE MUDGUARD, NO.2

main76921-BZ060-B0i201111-201508

GRAY,1E7 ,W09,GRAY

main76921-BZ060-C0i201507-201901

BLACK,3Q3 ,X12,GRAY

main76921-BZ070-B0i201901-202110

GRAY,1E7 ,W09,BLACK

main76921-BZ070-C0i201507-201904

BLACK,3Q3 ,X12,BLACK

main76921-BZ130i201901-202201

9004480449

main90044-80449

9004480536

main90044-80536

9004A15060

main9004A-15060

9004A48061

main9004A-48061

21 parts on this diagram · 2 diagrams in section
