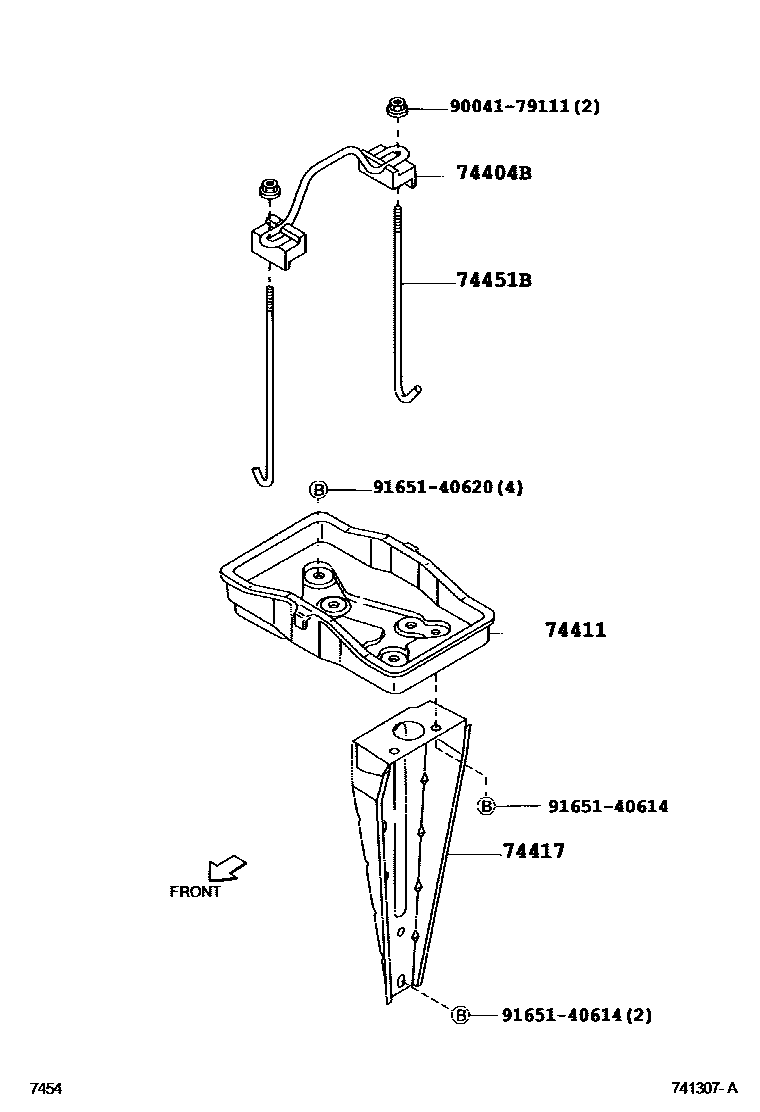

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1

74404BCLAMP SUB-ASSY, BATTERY

main74404-87Z02iF601..MA200410-200608

main74404-BZ010iF601..BRU,IDN,TH200312-200608

74411CARRIER, BATTERY

main74411-BZ010iF601200312-200608

74417BRACKET, BATTERY CARRIER

main74417-BZ010iF601200312-200608

main74417-BZ070iF60#..GEN,IDN,MXC,PHL,SA,TH201009

74451BBOLT, BATTERY CLAMP

main74451-87Z07×2iF601200312-200608

9004179111

main90041-79111

9165140614

main91651-40614

9165140620

main91651-40620

7 parts on this diagram · 4 diagrams in section
