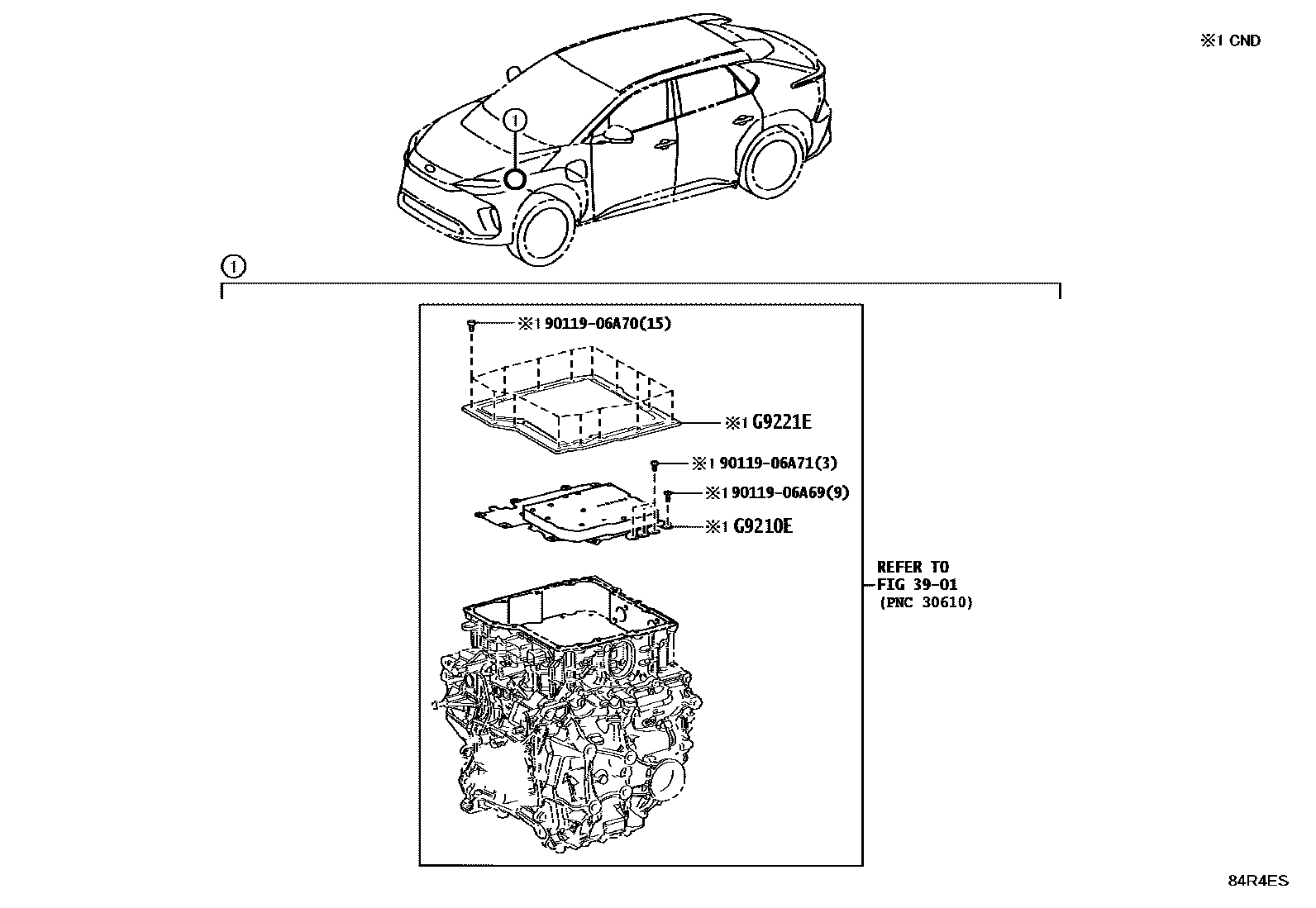

INVERTER(BEV OR FCEV)

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

G9210EINVERTER ASSY, EV MOTOR CONTROL, FRONT

mainG921042070iXEAM10..CND202203-202209

mainG921042071iXEAM10..CND202209-202411

mainG921042080iYEAM15..CND202203-202209

mainG921042081iYEAM15..CND202209-202411

G9221ECOVER, INVERTER, UPPER NO.1

mainG922142020iXEAM10..CND202203-202411

mainG922142030iYEAM15..CND202203-202411

9011906A69

main90119-06A69

9011906A70

main90119-06A70

9011906A71

main90119-06A71

6 parts on this diagram · 2 diagrams in section
