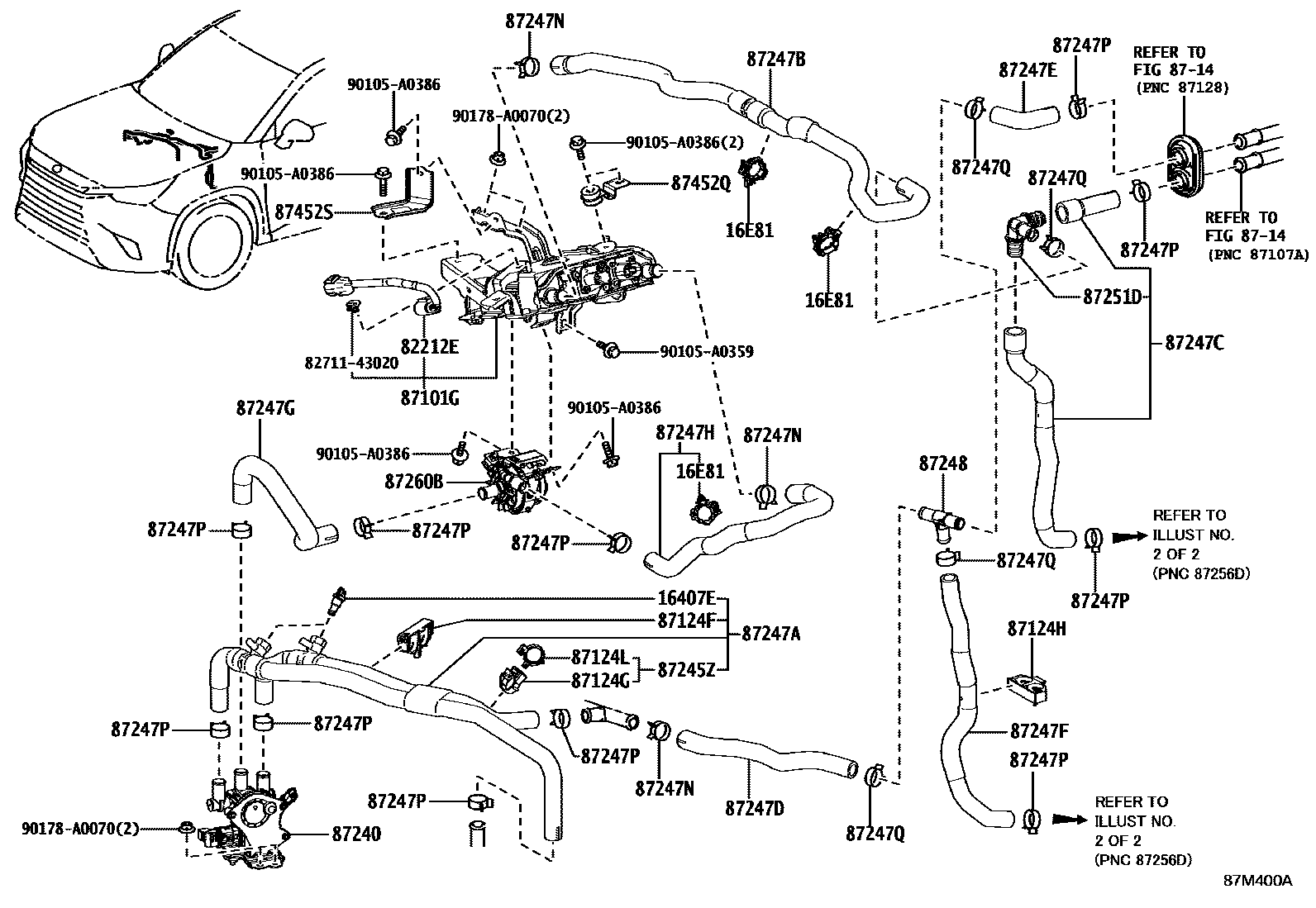

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1REAR 0006 1REAR

16407ECOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010×2i2GR..GYU15202312

16E81CLAMP, HOSE(FOR WATER HOSE)

main16581-25160×3i2GR..GYU15202312

82212EHARNESS, AIR CONDITIONER NO.1

main82212-12170iGYU15202312

87101GHEATER SUB-ASSY, ELECTRIC

main87101-40010iGYU15202312

87124CLAMP, HEATER

main16581-F0390iTAUH15202309

main88718-0ED70iTAUA1#..G,M,N202309

87124FCLAMP, HEATER HOSE, NO.1

main16581-36140iTAUH15;GYU15,TAUA1#..G,M,N202309

87124GCLAMP, HEATER HOSE, NO.2

main87124-50060iGYU15202312

87124HCLAMP, HEATER HOSE, NO.3

main16581-31210iGYU15202312

main88718-0E600iTAUA1#..G,M,N202309

87124LCLAMP, HEATER HOSE, NO.4

main87124-11030iGYU15202312

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87240VALVE ASSY, HEATER WATER

main87240-40120iGYU15202312

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main16581-70060iGYU15202312

main16581-77030iTAUH15202309

87247AHOSE, HEATER WATER, A

main87209-40070iGYU15202312

87247BHOSE, HEATER WATER, B

main87245-40190iGYU15202312

87247CHOSE, HEATER WATER, C

main87245-40200iGYU15202312

87247DHOSE, HEATER WATER, D

main87245-40210iGYU15202312

87247EHOSE, HEATER WATER, E

main87245-40230iGYU15202312

87247FHOSE, HEATER WATER, F

main87245-40240iGYU15202312

87247GHOSE, HEATER WATER, G

main87245-40150iGYU15202312

87247HHOSE, HEATER WATER, H

main87245-40160iGYU15202312

87247NCLIP, HOSE

main96138-42701×3iGYU15202312

87247PCLIP, HOSE

main90466-A0029×11iGYU15202312

87247QCLIP, HOSE

main96138-42501×4iGYU15202312

87248PIPE SUB-ASSY, WATER

main87248-0E170iGYU15202312

main87248-0E340iTAUH15202309

87251DJOINT, WATER, NO.1

main16355-70040iGYU15202312

87260BPUMP ASSY, HEATER, REAR

main87260-40020iGYU15202312

87452QBRACKET, HEATER, NO.1

main87121-40010iGYU15202312

87452SBRACKET, HEATER, NO.2

main87121-40030iGYU15202312

8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-43020

90105A0359

main90105-A0359

90105A0386

main90105-A0386

90178A0070

main90178-A0070

32 parts on this diagram · 6 diagrams in section
