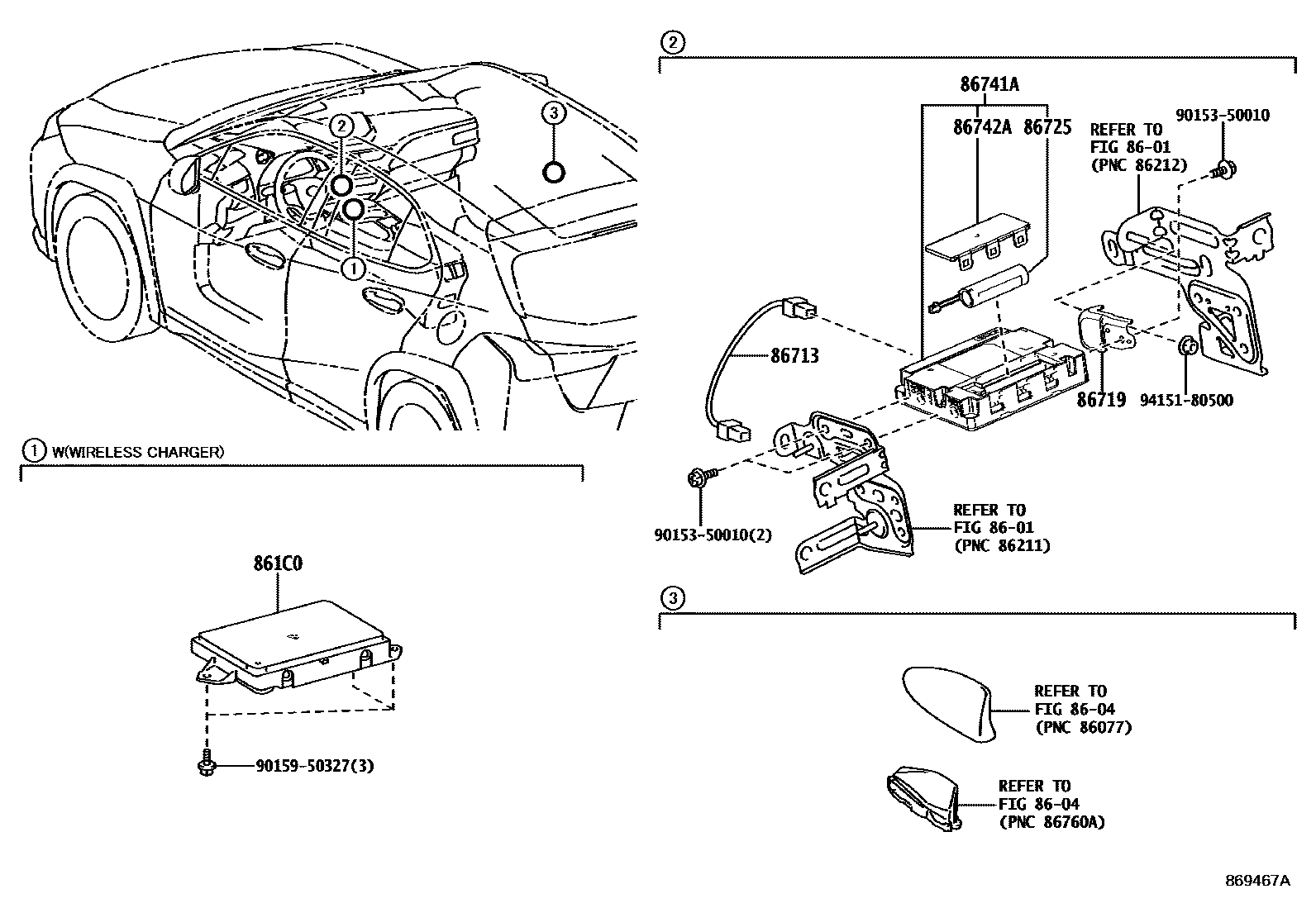

TELEPHONE & MAYDAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8604ANTENNA

→ Go to FIG 86-04

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-48110iMZAH1#202207-202311

WIRELESS CHARGER-WITH

main861C0-48111iMZAH10,15202312

WIRELESS CHARGER-WITH

main861C0-58040iMZAH11,16202401

WIRELESS CHARGER-WITH

86713WIRE, TELEPHONE COMPUTER

main86713-76070iKMA10202207-202305

86719BRACKET, TELEPHONE

main86719-76210iKMA10202207-202305

86725BATTERY, MOBILEPHONE

main86725-06020iKMA10202207-202305

86741ATRANSCEIVER, TELEMATICS

main86741-76090supersedes 86741-76050iKMA10202303-202305

main86741-48111iMZAH11,16202401

USA POSSESSIONS SPEC(GUAM,SAIPAN)

main86741-76050iMZAH10,15202207-202402

DEST.PACKAGE (EXC/ERP.)-USA POSSESSIONS SPEC(GUAM)

main86741-78250iMZAH16202401-202411

KOREA SPEC

86742ACOVER, TRANSCEIVER

main86742-78010iKMA10202207-202305

9015350010

main90153-50010

9015950327

main90159-50327

9415180500

main94151-80500

11 parts on this diagram · 1 diagram in section
