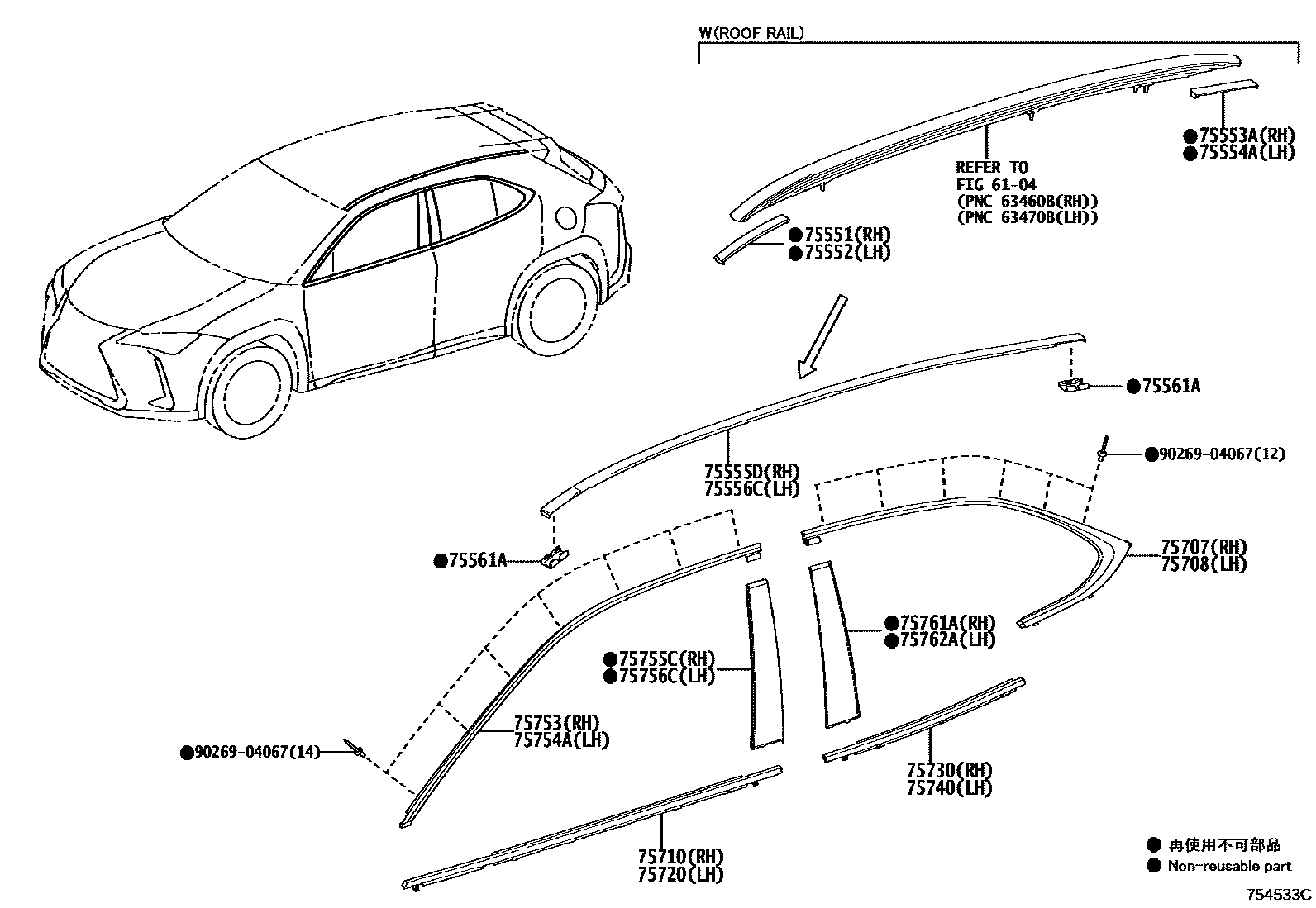

SIDE MOULDING
6104ROOF PANEL & BACK WINDOW GLASS
75551MOULDING, ROOF DRIP SIDE FINISH, RH
WHITE NOVA GF.,083 ,2XN
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,M03
GRAPHITE BLACK GF.,223
MADDER RED,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,2XT ,8X1
CELESTIAL BLUE GF.,8Y6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
WHITE NOVA GF.,083 ,2XN
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1 ,2XP
SONIC IRIDIUM,1L2 ,2XQ
BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,M03
GRAPHITE BLACK GF.,223 ,2XN ,2XP ,2XQ ,2XR ,2XS ,2XT
MADDER RED,2XR ,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,M03
GRAPHITE BLACK GF.,223
MADDER RED,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,2XT ,8X1
CELESTIAL BLUE GF.,8Y6
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
WHITE NOVA GF.,083 ,2XN
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1 ,2XP
SONIC IRIDIUM,1L2 ,2XQ
BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,2ZJ
GRAPHITE BLACK GF.,223
MADDER RED,2XR ,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
F SPORT&F SPORT APPEARANCE PACKAGE; F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
F SPORT&F SPORT APPEARANCE PACKAGE; F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE
75710MOULDING ASSY, FRONT DOOR BELT, RH
F SPORT&F SPORT APPEARANCE PACKAGE; F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE
75720MOULDING ASSY, FRONT DOOR BELT, LH
F SPORT&F SPORT APPEARANCE PACKAGE; F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE
75730MOULDING ASSY, REAR DOOR BELT, RH
F SPORT&F SPORT APPEARANCE PACKAGE; F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE
75740MOULDING ASSY, REAR DOOR BELT, LH
F SPORT&F SPORT APPEARANCE PACKAGE; F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
NO PAINT REQ., F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE; NO PAINT REQ.,F SPORT&F SPORT APPEARANCE PACKAGE
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
NO PAINT REQ., F SPORT(DESIGN)&F SPORT APPEARANCE PACKAGE; NO PAINT REQ.,F SPORT&F SPORT APPEARANCE PACKAGE
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
9026904067
main90269-04067
21 parts on this diagram · 2 diagrams in section
