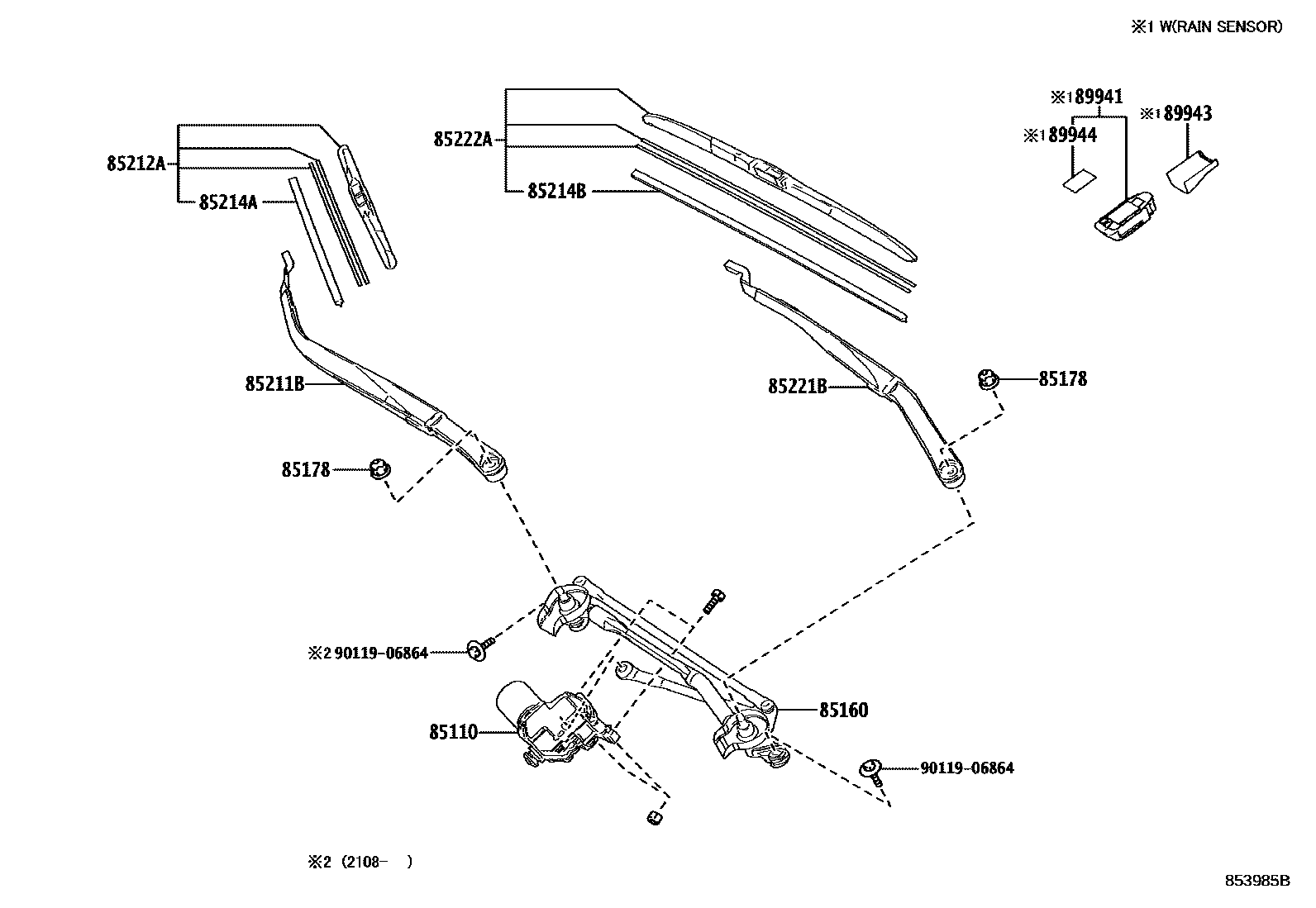

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-76070iMZAA10,MZAH1#201810-202006

main85110-76071iMZAA10,MZAH1#202007-202010

main85110-76072iMZAA10,MZAH1#202011-202207

85160LINK ASSY, WINDSHIELD WIPER

main85150-76050iMZAA10,MZAH1#201810-202108

main85150-76051iMZAA10,MZAH1#202108-202207

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iMZAA10,MZAH1#201810-202207

85211BARM, FRONT WIPER, RH

main85211-76040iMZAA10,MZAH1#201810-202207

85212ABLADE, FR WIPER, RH

main85212-76020iMZAA10,MZAH1#201810-202207

85214ARUBBER, WIPER, RH

main85214-28090iMZAA10,MZAH1#201810-202207

85214BRUBBER, WIPER, LH

main85214-52110iMZAA10,MZAH1#201810-202207

85221BARM, FRONT WIPER, LH

main85221-76040iMZAA10,MZAH1#201810-201910

main85221-76070iMZAA10,MZAH1#201910-202207

85222ABLADE, FR WIPER, LH

main85222-0E050iMZAA10,MZAH1#201910-202207

main85222-60260iMZAA10,MZAH1#201810-201910

89941SENSOR, RAIN

main89941-76010iMZAA10,MZAH1#202010-202207

89943COVER, RAIN SENSOR

main89943-76020iMZAA10,MZAH1#202010-202207

89944TAPE, RAIN SENSOR

main89944-42020

9011906864

main90119-06864

13 parts on this diagram · 1 diagram in section
