Toyota 527420 — HEV INVERTER

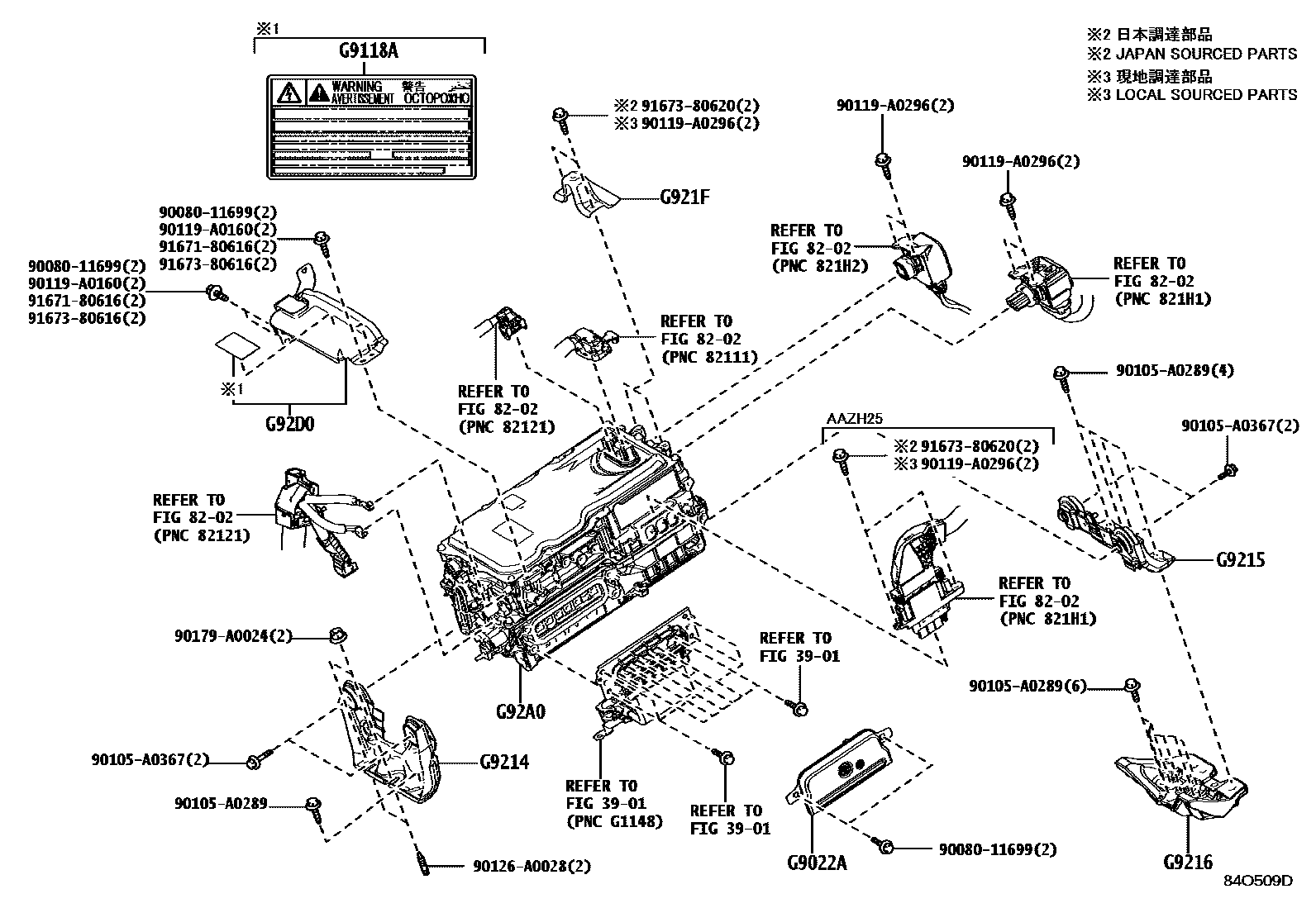

Parts diagram
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
→ Go to FIG 39-01
8202WIRING & CLAMP
→ Go to FIG 82-02
G9022ACOVER SUB-ASSY, INVERTER, UPPER
G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION
G9214BRACKET, INVERTER, NO.1
G9214-48070
G9215BRACKET, INVERTER, NO.2
G9215-42010
G9216BRACKET, INVERTER, NO.3
G9216-0E020
G921FPROTECTOR, INVERTER, NO.2
G921F-42010
G92A0INVERTER ASSY, HYBRID MOTOR CONTROL
G92A0-78090
G92A0-78091
G92A0-78092
G92A0-78093
G92A0-78103
G92D0PROTECTOR ASSY, HYBRID INVERTER
G92D0-0E010
9008011699
90080-11699
90105A0289
90105-A0289
90105A0367
90105-A0367
90119A0160
90119-A0160
90119A0296
90119-A0296
90126A0028
90126-A0028
90179A0024
90179-A0024
9167180616
91671-80616
9167380616
91673-80616
9167380620
91673-80620

20 parts on this diagram · 2 diagrams in section

HEV INVERTER for Toyota 527420

This section contains 21 genuine Toyota parts for the HEV INVERTER system of the Toyota 527420. Key components include: COMPUTER KIT, MOTOR GENERATOR CONTROL, TRANSAXLE ASSY(HEV OR BEV OR FCEV), WIRING & CLAMP, COVER SUB-ASSY, INVERTER, UPPER, LABEL, HV MOTOR CONTROL INVERTER CAUTION.
