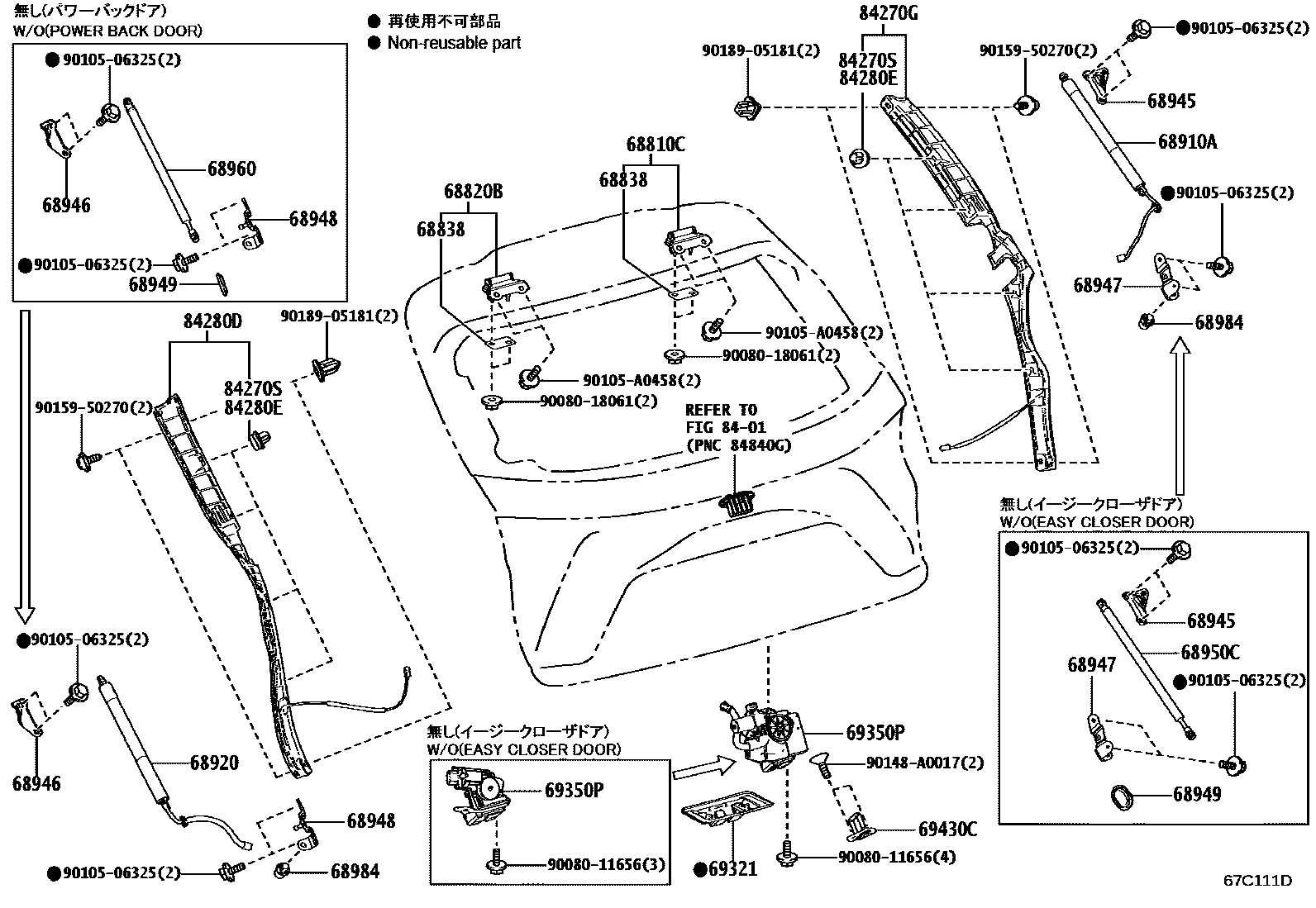

Toyota 527420 — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68910AUNIT ASSY SET, POWER BACK DOOR, RH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68949SEAL, BACK DOOR STAY BRACKET
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68984STOPPER, BACK DOOR STAY
69321COVER, BACK DOOR LOCK
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
84270GSENSOR ASSY, POWER BACK DOOR, RH
84270SCLIP(POWER BACK DOOR SENSOR, RH)
84280DSENSOR ASSY, POWER BACK DOOR, LH
84280ECLIP (FOR POWER BACK DOOR SENSOR, LH)
9008011656
9008018061
9010506325
90105A0458
90148A0017
9015950270
9018905181
28 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota 527420
This section contains 28 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota 527420. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, UNIT ASSY SET, POWER BACK DOOR, RH, UNIT ASSY SET, POWER BACK DOOR, LH.
