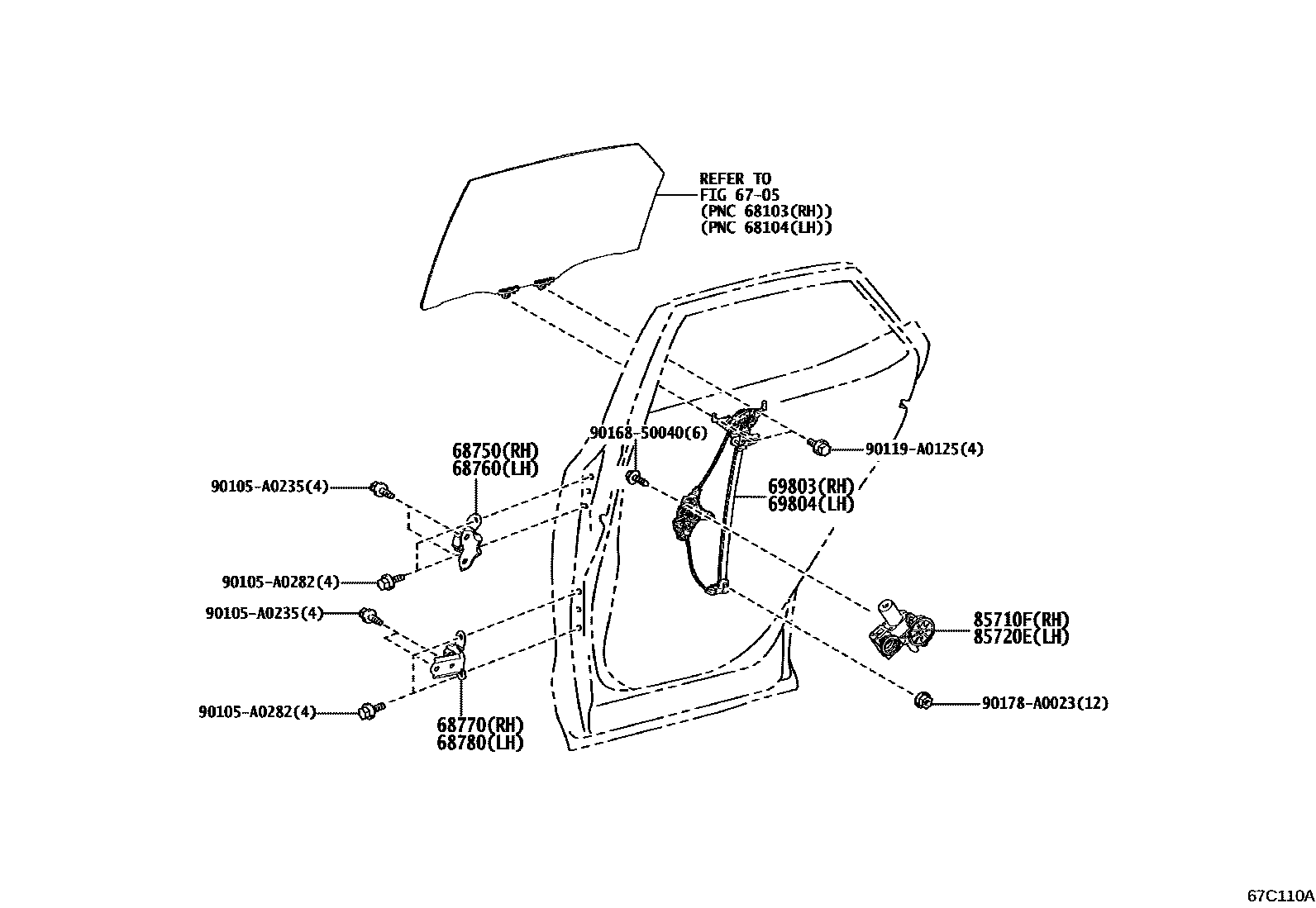

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iAAZA2#202203-202508

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iAAZA2#202203-202508

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06050iAAZA2#202203-202508

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06050iAAZA2#202203-202508

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-F6010iAAZA2#,AAZH25,TAZA25202203-202306

main69803-F6011iAAZA2#202307-202508

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-F6010iAAZA2#,AAZH25,TAZA25202203-202306

main69804-F6011iAAZA2#202307-202508

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-F6020iAAZA2#202203-202508

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-F6020iAAZA2#202203-202508

90105A0235

main90105-A0235

90105A0282

main90105-A0282

90119A0125

main90119-A0125

9016850040

main90168-50040

90178A0023

main90178-A0023

14 parts on this diagram · 1 diagram in section
