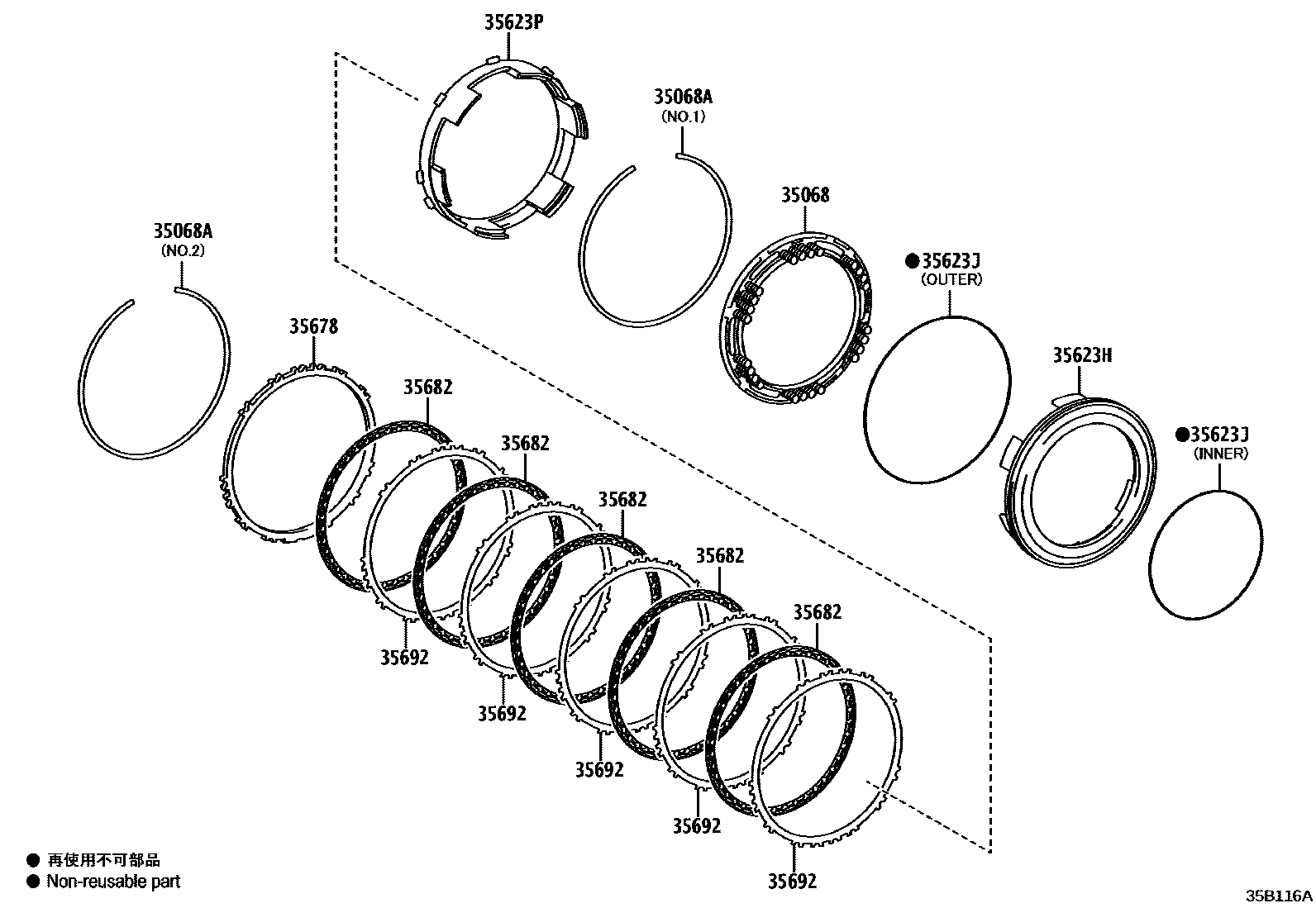

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
NO.2
NO.1
NO.1
NO.2
35623JRING, O (FOR 1ST & REVERSE BRAKE)
INNER
OUTER
OUTER
INNER
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35678FLANGE, BRAKE(FOR 2ND BRAKE)
T=5.0,MARK 0
T=5.1,MARK 1
T=5.2,MARK 2
T=5.3,MARK 3
T=5.4,MARK 4
T=5.5,MARK 5
T=5.6,MARK 6
T=5.0,MARK 0
T=5.1,MARK 1
T=5.2,MARK 2
T=5.3,MARK 3
T=5.4,MARK 4
T=5.5,MARK 5
T=5.6,MARK 6
8 parts on this diagram · 1 diagram in section
