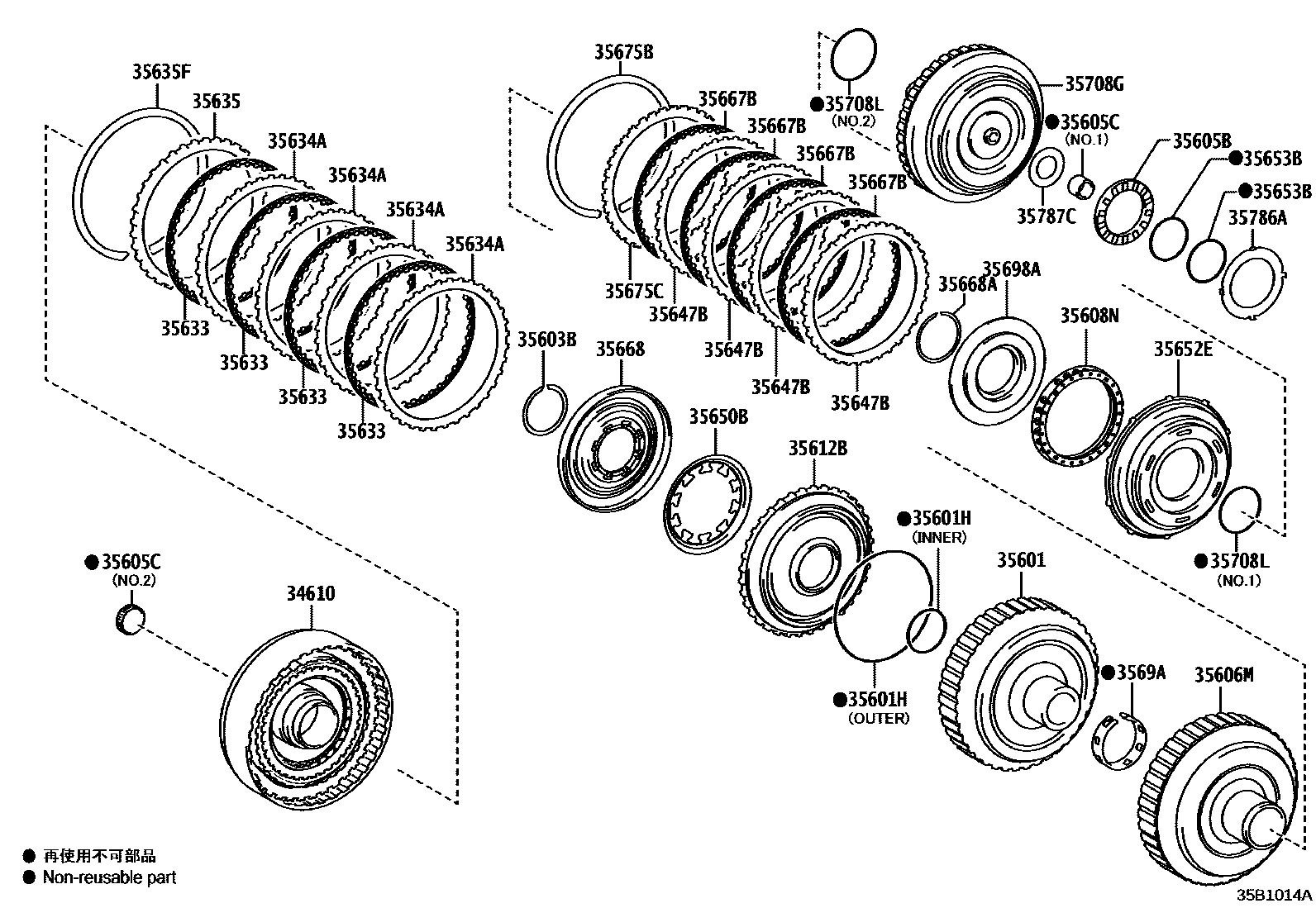

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601HRING, O(FOR C-1 DRUM)
OUTER; OUTER.
INNER
INNER
OUTER
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
35605CBEARING, NEEDLE ROLLER
NO.1
NO.1
NO.2
NO.2
NO.2
NO.2
35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=1.8,NO.2
T=1.4,NO.1
35635FLANGE, FORWARD CLUTCH
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.8
T=4.9
T=5.0
T=5.1
35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)
35647BPLATE, CLUTCH, NO.2
NO.2
NO.1
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.6
T=3.7
T=3.8
T=3.9
T=4.0
T=4.1
T=4.2
T=3.6,MARK 0
T=3.7,MARK 1
T=3.8,MARK 2
T=3.9,MARK 3
T=4.0,MARK 4
T=4.1,MARK 5
T=4.2,MARK 6
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1
NO.2
NO.2
NO.1
28 parts on this diagram · 2 diagrams in section
