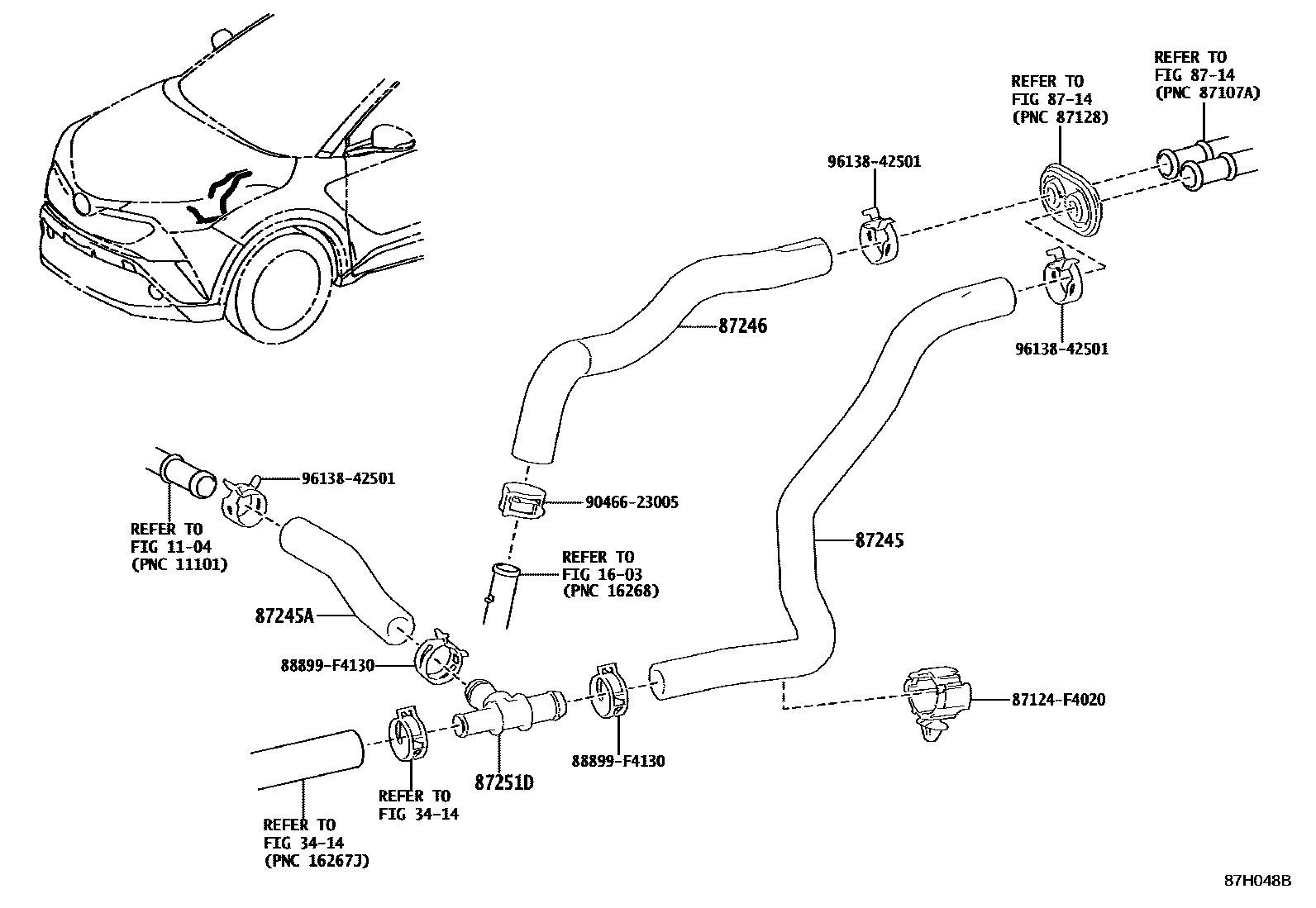

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-10570iZGX10201806-201910

main87245-F4050iZGX10201801-201806

87245AHOSE, HEATER WATER, INLET A

main87245-10580iZGX10201806-201910

main87245-F4060iZGX10201801-201806

87246HOSE, HEATER WATER, OUTLET

main87245-10480iZGX10201910-202212

main87245-F4010iZGX10201801-201804

main87245-F4011iZGX10201804-201806

87251DJOINT, WATER, NO.1

main87248-12310iZGX10201806-201910

main87251-F4010iZGX10201801-201806

87124F4020CLAMP, HEATER

main87124-F4020

88899F4130COVER, EVAPORATOR

main88899-F4130

9046623005

main90466-23005

9613842501

main96138-42501

12 parts on this diagram · 2 diagrams in section
