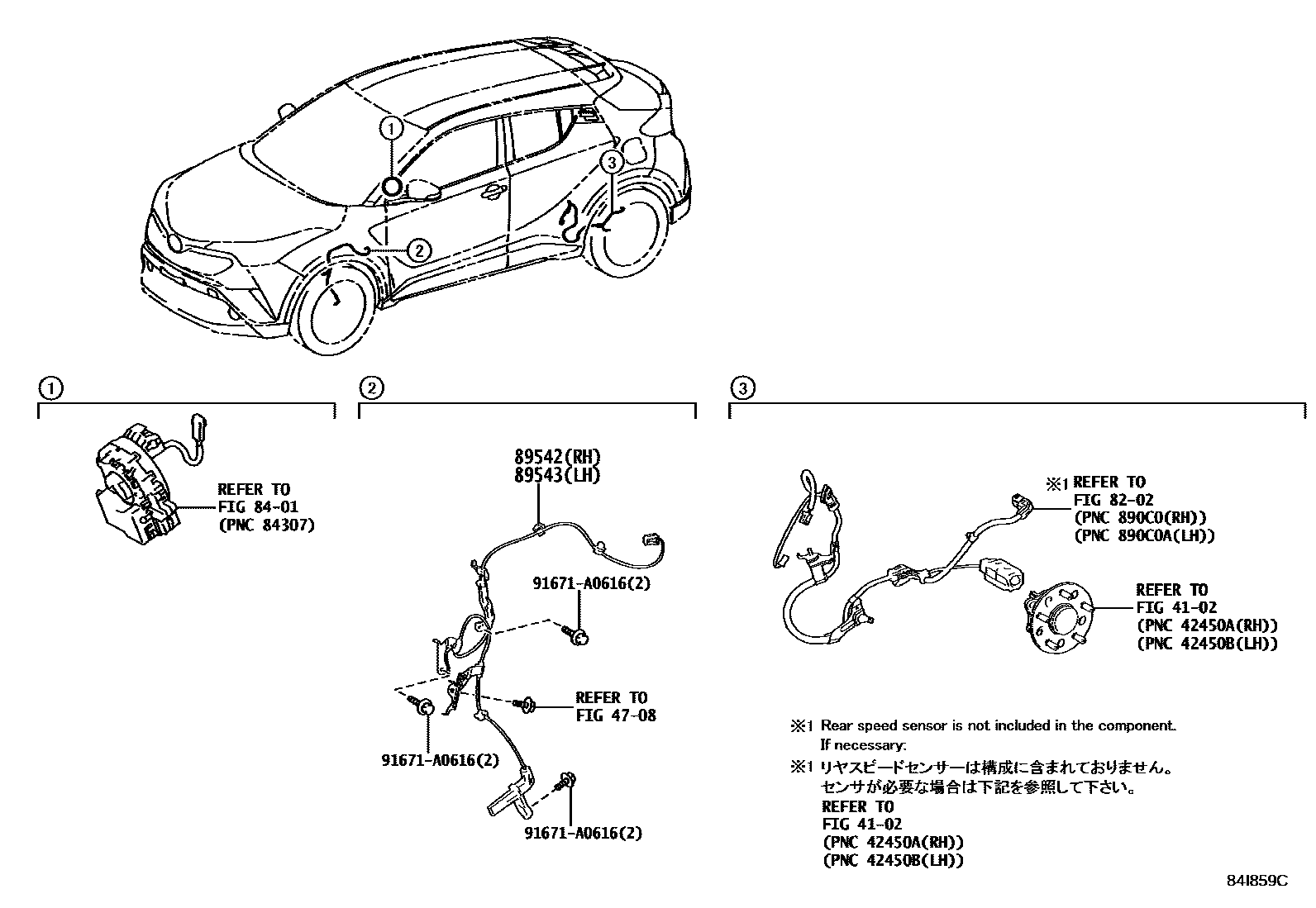

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89542SENSOR, SPEED, FRONT RH

main89542-10040iZGX10201801-201910

main89542-12130iZGX10201910-202212

89543SENSOR, SPEED, FRONT LH

main89543-10040iZGX10201801-201910

main89543-12130iZGX10201910-202212

91671A0616

main91671-A0616

7 parts on this diagram · 1 diagram in section
