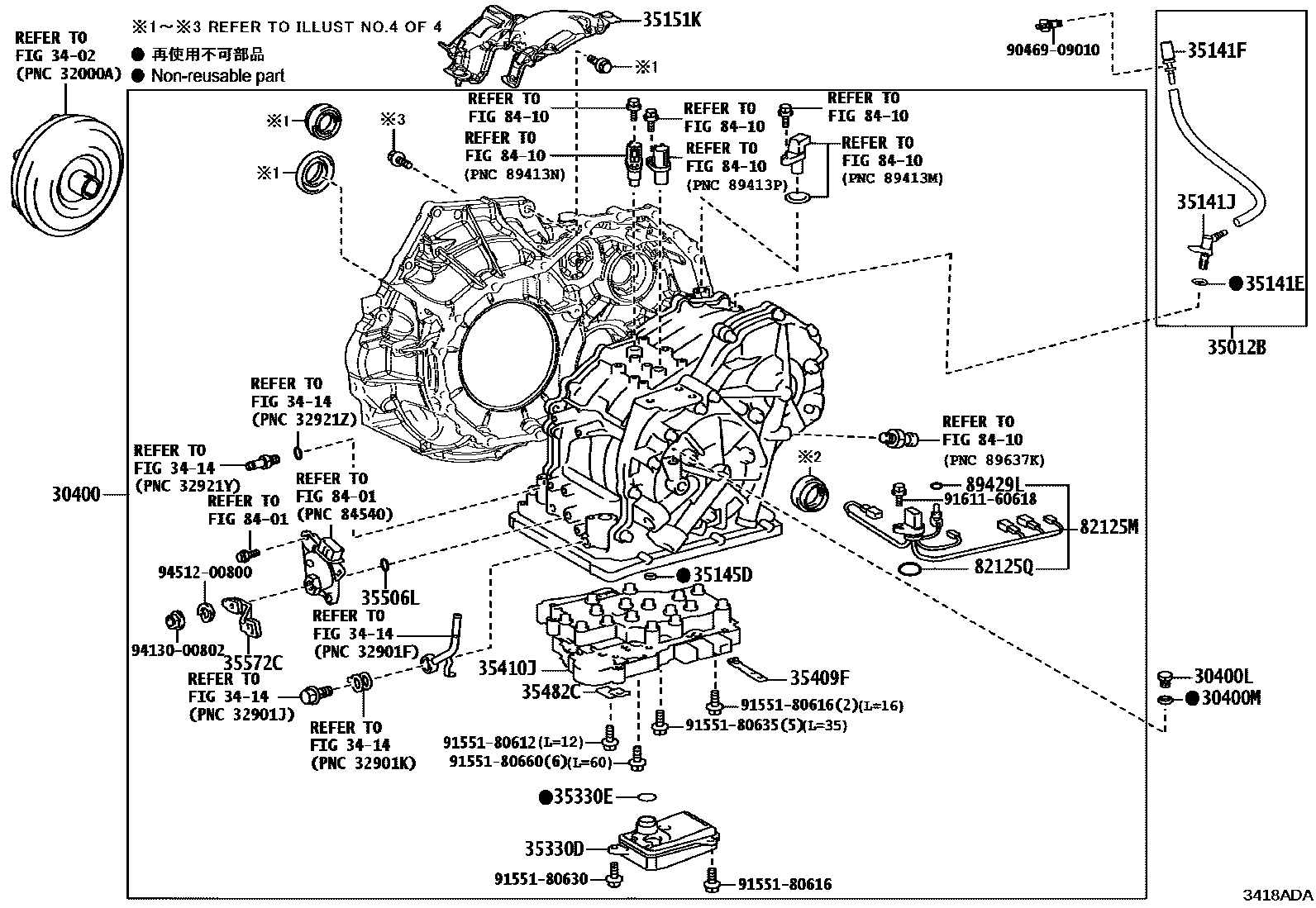

TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K114
30400LPLUG , FILLER(CVT)
30400MGASKET, FILLER PLUG(CVT)
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
3414OIL COOLER & TUBE(CVT)
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35145DGASKET, TRANSAXLE CASE
35151KCOVER, AUTOMATIC TRANSMISSION CASE
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35409FSPRING SUB-ASSY, MANUAL DETENT
35410JBODY ASSY, TRANSMISSION VALVE
35482CCLAMP, TEMPERATURE SENSOR
35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
82125QRING, O(FOR TRANSMISSION WIRE)
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
89429LRING, O(FOR OIL TEMPERATURE SENSOR)
9046909010
main90469-09010
9155180612
main91551-80612
9155180616
main91551-80616
9155180630
main91551-80630
9155180635
main91551-80635
9155180660
main91551-80660
9161160618
main91611-60618
9413000802
main94130-00802
9451200800
main94512-00800
32 parts on this diagram · 4 diagrams in section
