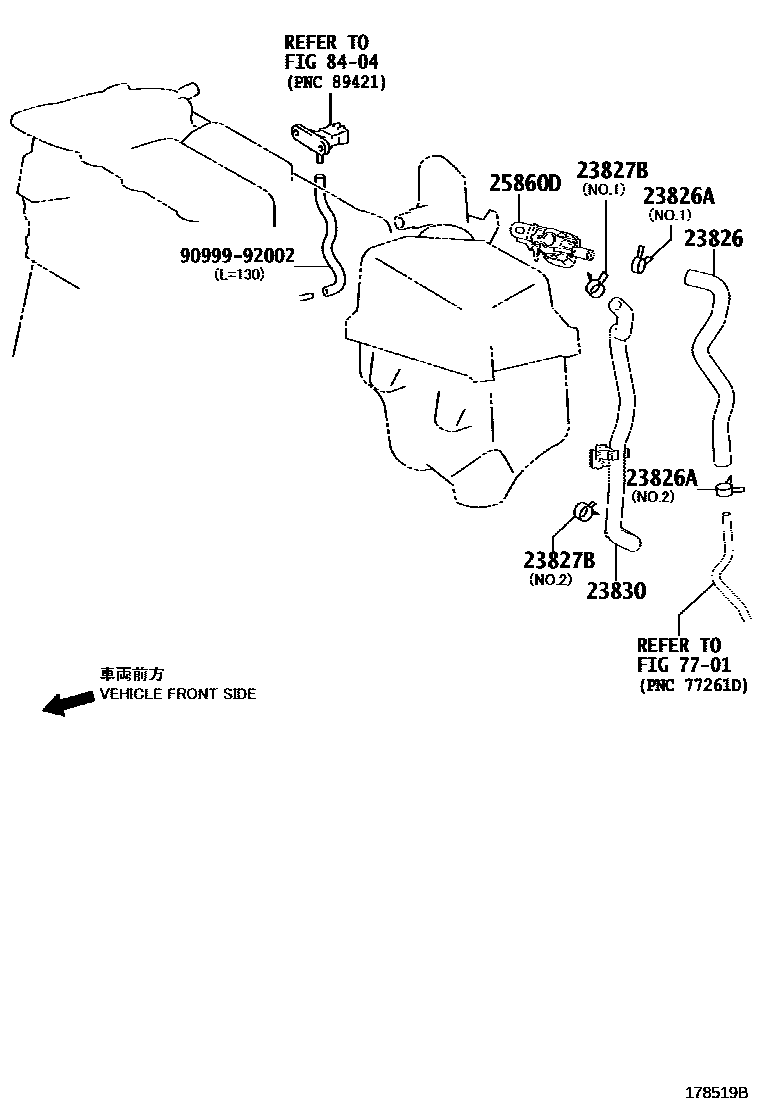

VACUUM PIPING
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9099992002
main90999-92002
8 parts on this diagram · 2 diagrams in section
