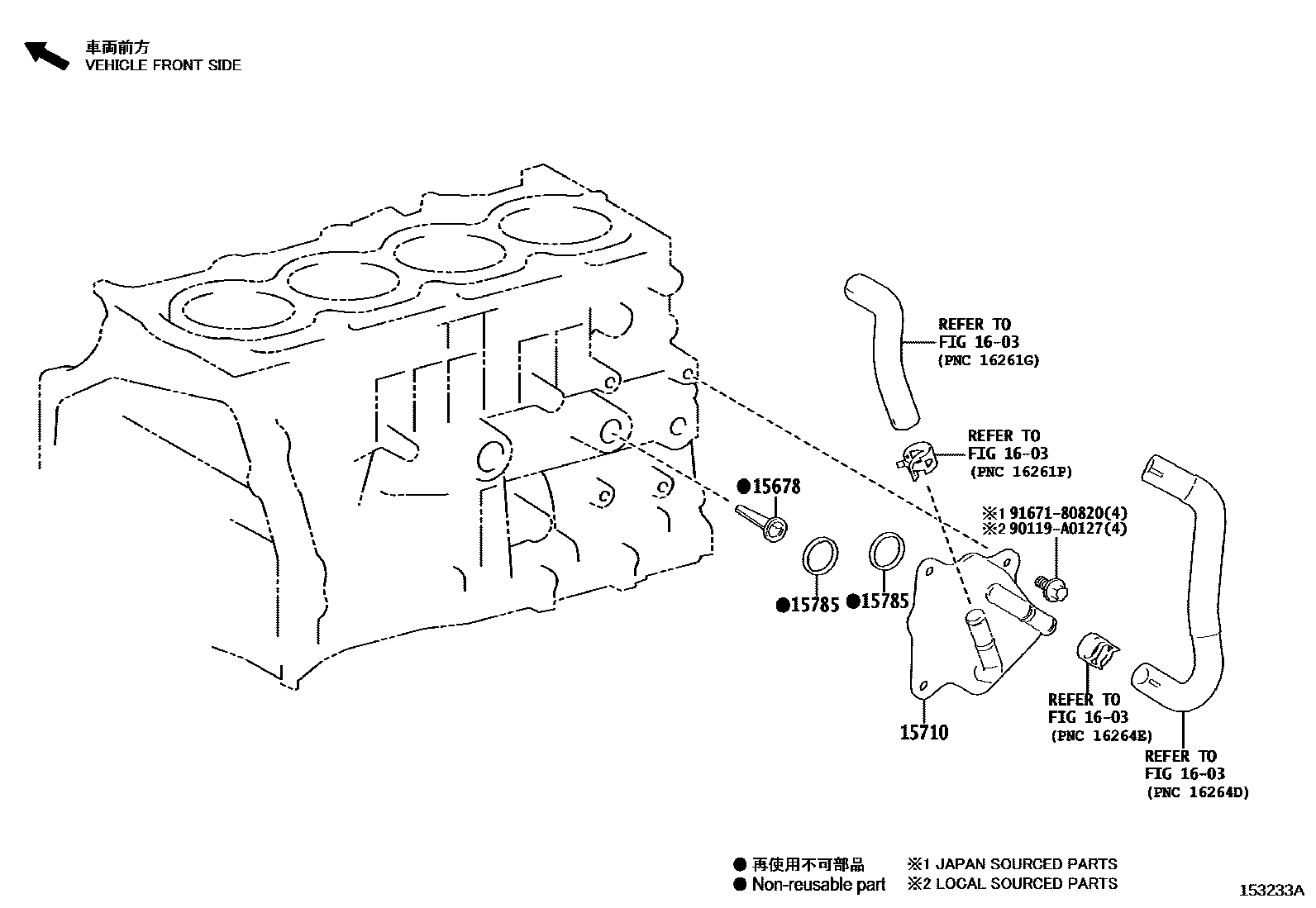

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15678FILTER, OIL CONTROL VALVE

main15678-25010iA25AFXS..AXUH7#202002-202111

*489

main15678-25010iA25AFXS..AXUH7#202002-202109

*636

15710COOLER ASSY, OIL

main15710-0P010i2GRFKS..GSU7#201912-202210

main15710-25010iA25AFXS..AXUH7#202002-202210

*636,*489

main15710-25010iA25AFXS..AXUH7#202210-202311

*636

main15710-25040iT24AFTS..TXUA7#202210-202410

(J)

main15710-F0010iA25AFXS..AXUH7#202210-202311

*489

main15710-F0010iA25AFXS..AXUH7#202311

*489 OR *769

main15710-F0020iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N202210-202410

(L)

15785GASKET, OIL COOLER

main15785-0P010i2GRFKS..GSU7#201912-202210

main15785-25010iA25AFXS..AXUH7#202002-202311

*489,*636

main15785-25010iA25AFXS..AXUH7#202311

*636,*489 OR *769

main15785-25020iT24AFTS..TXUA7#202210-202410

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

90119A0127

main90119-A0127

9167180820

main91671-80820

6 parts on this diagram · 3 diagrams in section
