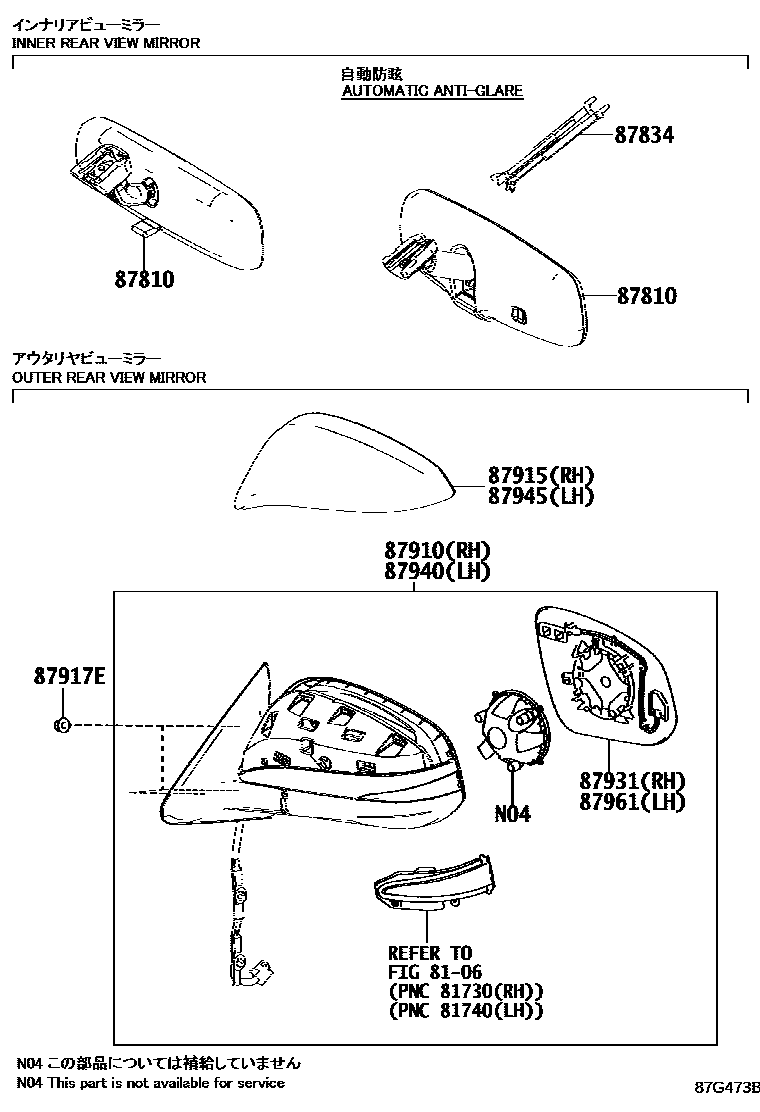

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
AUDIO-8INCH MONITOR AVN 6SPEKAER
AUDIO-8INCH AVN 6SPEAKER W(NIS)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-RETRACTABLE(COLORE),WITH(HEATER)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,070 ,1H1 ,218 ,3Q3 ,3T0
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
87917ENUT, OUTER MIRROR
OD=13.6
OD=14
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-RETRACTABLE(COLORE),WITH(HEATER)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-RETRACTABLE(COLORE),WITH(HEATER)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,070 ,1H1 ,218 ,3Q3 ,3T0
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-RETRACTABLE(COLORE),WITH(HEATER)
10 parts on this diagram · 2 diagrams in section
