MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
NO PAINT REQ.
NO PAINT REQ.,(DELETE)FAMILY PACKAGE
NO PAINT REQ.,(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
NO PAINT REQ.
NO PAINT REQ.,(DELETE)FAMILY PACKAGE
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
87931OUTER MIRROR, RH
(DELETE)FAMILY PACKAGE
(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
WINDOSHIELD DEICER-WITH
WINDOSHIELD DEICER-WITH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,(DELETE)FAMILY PACKAGE
NO PAINT REQ.,(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,(DELETE)FAMILY PACKAGE
NO PAINT REQ.,(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
WINDOSHIELD DEICER-WITH
(DELETE)FAMILY PACKAGE
(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
87966RETRACTOR, OUTER MIRROR, LH
87967HOLDER, MIRROR, OUTER RH
(DELETE)FAMILY PACKAGE
(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
87968HOLDER, MIRROR, OUTER LH
(DELETE)FAMILY PACKAGE
(DELETE)FAMILY PACKAGE&WINDOSHIELD DEICER-WITH
90178A0064
main90178-A0064

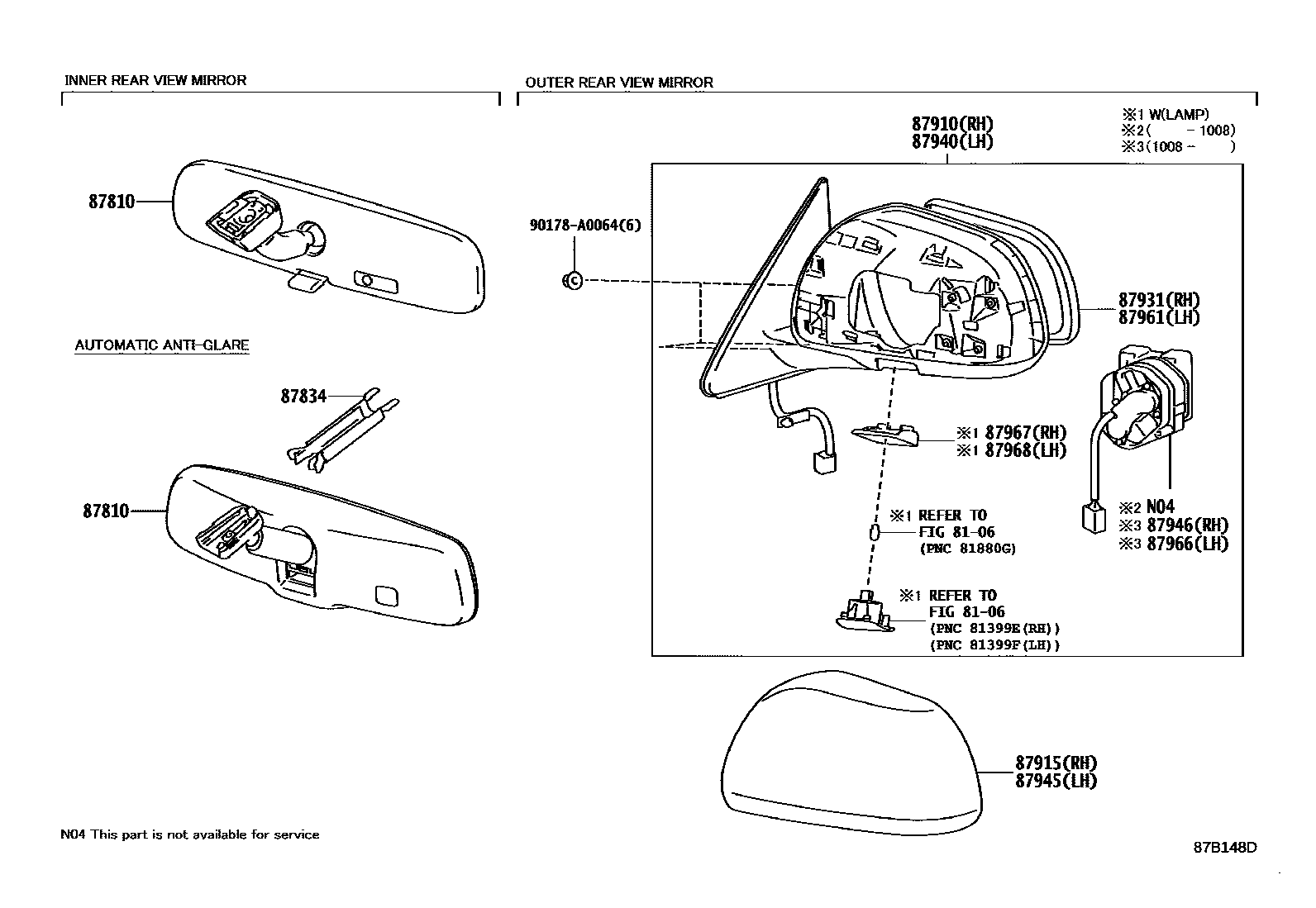

14 parts on this diagram · 1 diagram in section
