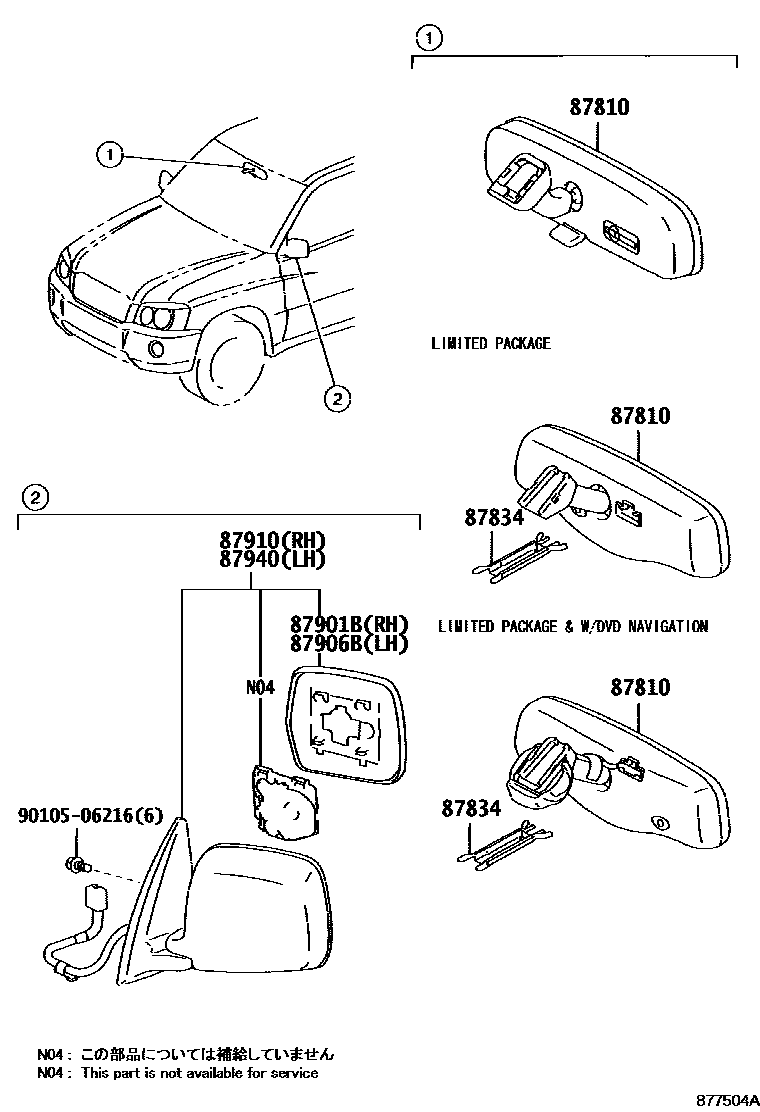

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LIMITED(USA)&REAR SIDE GLASS-PRIVACY(DARK GRAY)
LIMITED(USA)&W(DVD NAVIGATION.EMV)
LIMITED(USA)&W(DVD NAVIGATION.EMV)
LIMITED(USA)
LIMITED(USA)&REAR SIDE GLASS-PRIVACY(DARK GRAY)&W(DVD NAVIGATION.EMV)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LIMITED(USA); LIMITED(USA)&W(DVD NAVIGATION.EMV)
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
WITH(HEATER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
WITH(HEATER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
WITH(HEATER),SUPER WHITE 2,040
WITH(HEATER),SILVER ME.,1C0
WITH(HEATER),BLACK,202
WITH(HEATER),BEIGE M.M.,4R3
WITH(HEATER),GREEN M.M.,6T5
WITH(HEATER),GRAYISH BLUE ME.,040 ,8N6
87940MIRROR ASSY, OUTER REAR VIEW, LH
WITH(HEATER),SUPER WHITE 2,040
WITH(HEATER),SILVER ME.,1C0
WITH(HEATER),BLACK,202
WITH(HEATER),BEIGE M.M.,4R3
WITH(HEATER),GREEN M.M.,6T5
WITH(HEATER),GRAYISH BLUE ME.,040 ,8N6
9010506216
main90105-06216
7 parts on this diagram · 1 diagram in section
