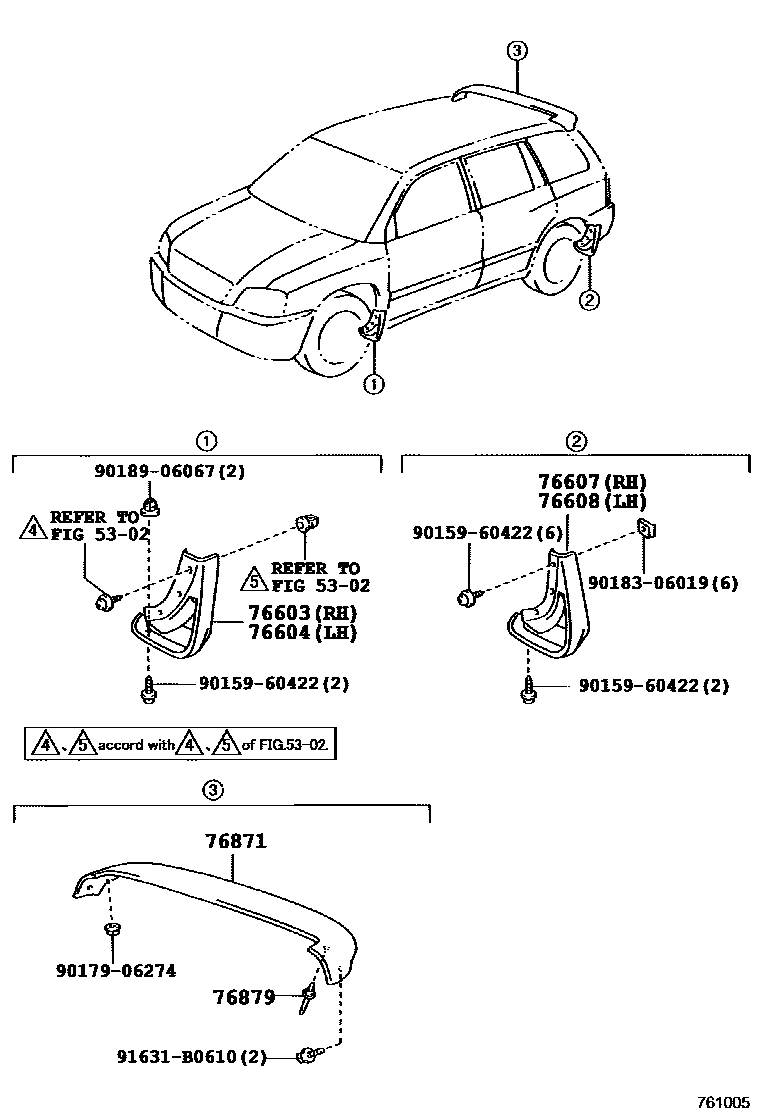

MUDGUARD & SPOILER
5302HOOD & FRONT FENDER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
WITH(MUD GUARD=BODY COLOR),SUPER WHITE 2,040
WITH(MUD GUARD=BODY COLOR),SILVER ME.,1C0
WITH(MUD GUARD=BODY COLOR),BLACK,202
WITH(MUD GUARD=BODY COLOR),BEIGE M.M.,4R3
WITH(MUD GUARD=BODY COLOR),GREEN M.M.,6T5
WITH(MUD GUARD=BODY COLOR),GRAYISH BLUE ME.,8N6
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
WITH(MUD GUARD=BODY COLOR),SUPER WHITE 2,040
WITH(MUD GUARD=BODY COLOR),SILVER ME.,1C0
WITH(MUD GUARD=BODY COLOR),BLACK,202
WITH(MUD GUARD=BODY COLOR),BEIGE M.M.,4R3
WITH(MUD GUARD=BODY COLOR),GREEN M.M.,6T5
WITH(MUD GUARD=BODY COLOR),GRAYISH BLUE ME.,8N6
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
WITH(MUD GUARD=BODY COLOR),SUPER WHITE 2,040
WITH(MUD GUARD=BODY COLOR),SILVER ME.,1C0
WITH(MUD GUARD=BODY COLOR),BLACK,202
WITH(MUD GUARD=BODY COLOR),BEIGE M.M.,4R3
WITH(MUD GUARD=BODY COLOR),GREEN M.M.,6T5
WITH(MUD GUARD=BODY COLOR),GRAYISH BLUE ME.,8N6
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
WITH(MUD GUARD=BODY COLOR),SUPER WHITE 2,040
WITH(MUD GUARD=BODY COLOR),SILVER ME.,1C0
WITH(MUD GUARD=BODY COLOR),BLACK,202
WITH(MUD GUARD=BODY COLOR),BEIGE M.M.,4R3
WITH(MUD GUARD=BODY COLOR),GREEN M.M.,6T5
WITH(MUD GUARD=BODY COLOR),GRAYISH BLUE ME.,8N6
76871SPOILER, REAR
PAINT REQ.,W(REAR SPOILER)
76879CLIP, REAR SPOILER, NO.1
W(REAR SPOILER)
9015960422
main90159-60422
9017906274
main90179-06274
9018306019
main90183-06019
9018906067
main90189-06067
91631B0610
main91631-B0610
12 parts on this diagram · 1 diagram in section
