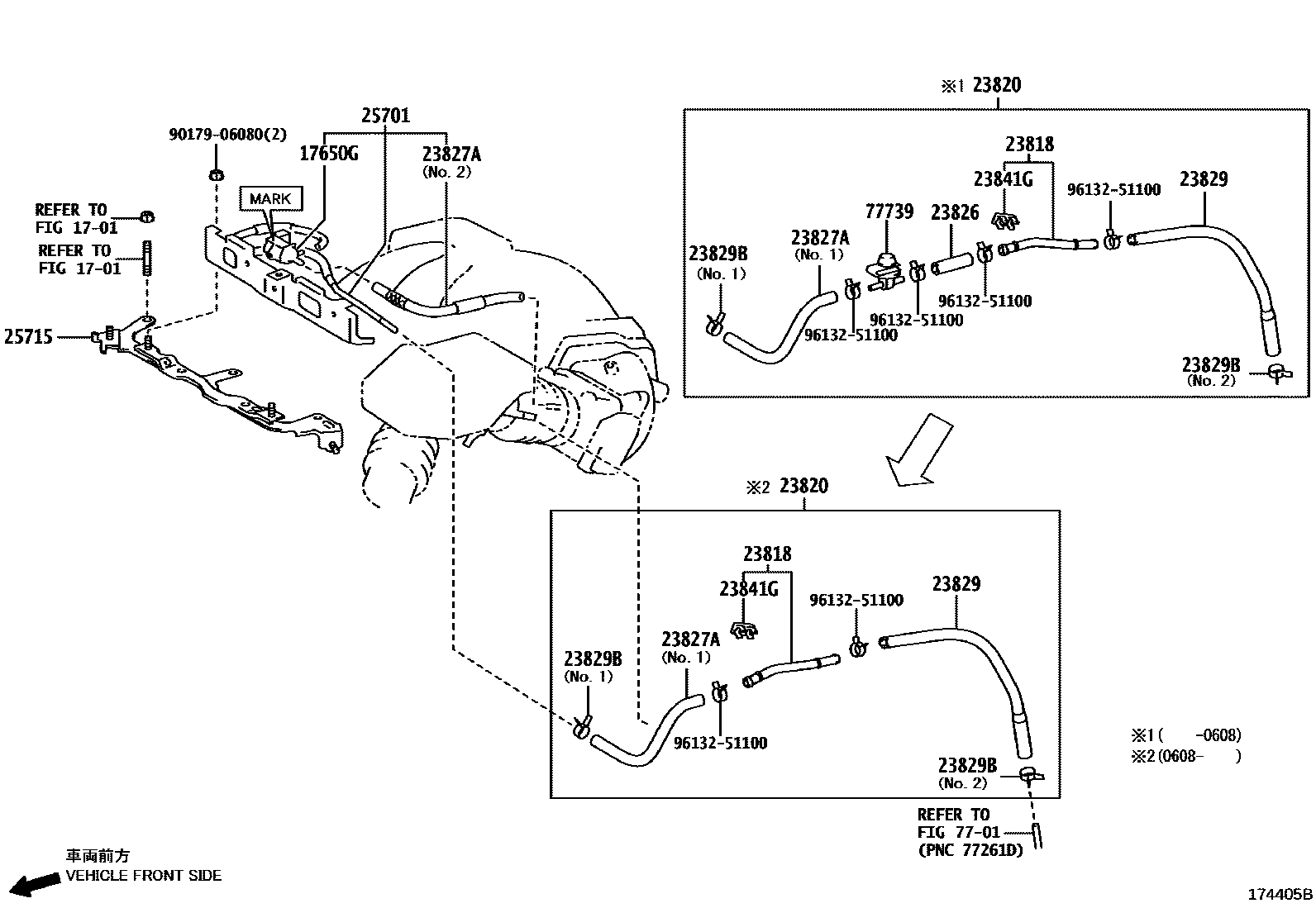

VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12259i3MZFE..MHU2#200503-200705

MARK 90910-12259

main90910-12272i3MZFE..MHU2#200503-200705

MARK 90910-12272

23818PIPE, FUEL VAPOR FEED

main23818-20010i3MZFE..MHU2#200503-200705

23820HOSE ASSY, FUEL VAPOR FEED

main23820-20230i3MZFE..MHU2#200503-200608

main23820-20240i3MZFE..MHU2#200608-200705

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-20110i3MZFE..MHU2#200503-200608

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-20060i3MZFE..MHU2#200503-200705

NO.2

main23827-20110i3MZFE..MHU2#200503-200608

NO.1

main23827-20120i3MZFE..MHU2#200608-200705

NO.1

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-20150i3MZFE..MHU2#200503-200705

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003i3MZFE..MHU2#200503-200705

NO.1

main96133-41300i3MZFE..MHU2#200503-200705

NO.2

23841GCLAMP, FUEL HOSE

main23841-20050i3MZFE..MHU2#200503-200705

25701VALVE SET, EMISSION CONTROL

main25701-20240i3MZFE..MHU2#200503-200705

25715BRACKET, EMISSION CONTROL VALVE

main25715-20021i3MZFE..MHU2#200503-200705

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77739VALVE, EVAP SERVICE PORT

main77739-33010iMHU2#200503-200608

9017906080

main90179-06080

9613251100

main96132-51100

15 parts on this diagram · 1 diagram in section
