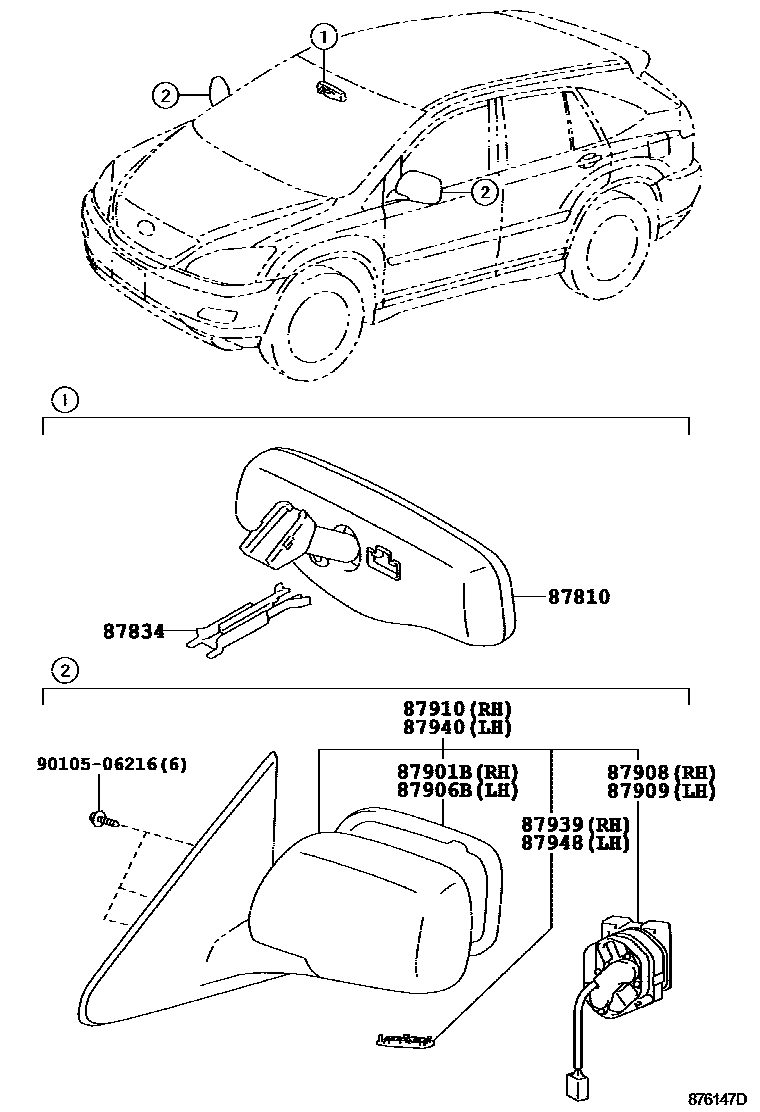

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0E010i200503-200607

main87810-0W130i200608-200812

main87810-AC090i200608-200610

KOREA SPEC&PREMIUM PACKAGE(USA)&REAR SIDE GLASS-GREEN(LEXUS MARK)&SEAT HEATER-WITH(DRIVER & PASSENGER)

main87810-AC091i200610-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&REAR SIDE GLASS-GREEN(LEXUS MARK)&SEAT HEATER-WITH(DRIVER & PASSENGER)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-AC010i200503-200812

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-48040i200503-200812

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-48050i200503-200812

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-60840i200503-200602

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH

main87908-60841i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-60730i200503-200602

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH

main87909-60731i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-48240-A0supersedes 87910-48230-A0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,WHITE PEARL CS.,062

main87910-48240-B0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1C0

main87910-48240-B1i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1E0

main87910-48240-C0supersedes 87910-48230-C0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BLACK,202

main87910-48240-E0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4R4

main87910-48240-G0supersedes 87910-48230-G0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.OLIVE M.M.,6T1

main87910-48240-J1i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.BLUE M.M.,8R7

main87910-48241-A0supersedes 87910-48230-A0i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,WHITE PEARL CS.,062

main87910-48241-B0supersedes 87910-48230-B0i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1C0

main87910-48241-B1i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1E0

main87910-48241-B3supersedes 87910-48230-B2i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1F7

main87910-48241-B4i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1G0

main87910-48241-C0supersedes 87910-48230-C0i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BLACK,202

main87910-48241-D1supersedes 87910-48230-D1i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,RED MC.CS.,3R1

main87910-48241-E0i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4R4

main87910-48241-E1supersedes 87910-48230-E1i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,COPPER BROWN MC.,4S6

main87910-48241-E2i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4T1

main87910-48241-G0supersedes 87910-48230-G0i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.OLIVE M.M.,6T1

main87910-48241-G2supersedes 87910-48230-G2i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,MD.GREEN M.M.,6U3

main87910-48241-J0supersedes 87910-48230-J0i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.BLUE ME.,8R6

main87910-48241-J1i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.BLUE M.M.,8R7

main87910-48330-A0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,WHITE PEARL CS.,062

main87910-48330-B0i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1C0

main87910-48330-B1i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1E0

main87910-48330-B2i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1F7

main87910-48330-B3i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1G0

main87910-48330-C0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BLACK,202

main87910-48330-D1i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,RED MC.CS.,3R1

main87910-48330-E0i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4R4

main87910-48330-E1i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,COPPER BROWN MC.,4S6

main87910-48330-E2i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4T1

main87910-48330-G0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.OLIVE M.M.,6T1

main87910-48330-G2i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,MD.GREEN M.M.,6U3

main87910-48330-J0i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.BLUE ME.,8R6

main87910-48330-J1i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.BLUE M.M.,8R7

87939COVER, OUTER MIRROR HOLE, RH

main87939-48270i200503-200812

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-48240-A0supersedes 87940-48230-A0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,WHITE PEARL CS.,062

main87940-48240-B0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1C0

main87940-48240-B1i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1E0

main87940-48240-C0supersedes 87940-48230-C0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BLACK,202

main87940-48240-E0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4R4

main87940-48240-G0supersedes 87940-48230-G0i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.OLIVE M.M.,6T1

main87940-48240-J1i200503-200601

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.BLUE M.M.,8R7

main87940-48241-A0supersedes 87940-48230-A0i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,WHITE PEARL CS.,062

main87940-48241-B0supersedes 87940-48230-B0i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1C0

main87940-48241-B1i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1E0

main87940-48241-B3supersedes 87940-48230-B2i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1F7

main87940-48241-B4i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1G0

main87940-48241-C0supersedes 87940-48230-C0i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BLACK,202

main87940-48241-D1supersedes 87940-48230-D1i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,RED MC.CS.,3R1

main87940-48241-E0i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4R4

main87940-48241-E1supersedes 87940-48230-E1i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,COPPER BROWN MC.,4S6

main87940-48241-E2i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4T1

main87940-48241-G0supersedes 87940-48230-G0i200602-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.OLIVE M.M.,6T1

main87940-48241-G2supersedes 87940-48230-G2i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,MD.GREEN M.M.,6U3

main87940-48241-J0supersedes 87940-48230-J0i200708-200812

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.BLUE ME.,8R6

main87940-48241-J1i200602-200708

PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.BLUE M.M.,8R7

main87940-48330-A0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,WHITE PEARL CS.,062

main87940-48330-B0i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1C0

main87940-48330-B1i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1E0

main87940-48330-B2i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,SILVER ME.,1F7

main87940-48330-B3i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.GRAY MC.,1G0

main87940-48330-C0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BLACK,202

main87940-48330-D1i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,RED MC.CS.,3R1

main87940-48330-E0i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4R4

main87940-48330-E1i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,COPPER BROWN MC.,4S6

main87940-48330-E2i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,BEIGE ME.,4T1

main87940-48330-G0i200608-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.OLIVE M.M.,6T1

main87940-48330-G2i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,MD.GREEN M.M.,6U3

main87940-48330-J0i200708-200812

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,LT.BLUE ME.,8R6

main87940-48330-J1i200608-200708

KOREA SPEC&PREMIUM PACKAGE(USA)&EASY-ACCESS POWER SYSTEM-WITH,DK.BLUE M.M.,8R7

87948COVER, OUTER MIRROR HOLE, LH

main87948-48270i200503-200812

9010506216

main90105-06216

11 parts on this diagram · 1 diagram in section
