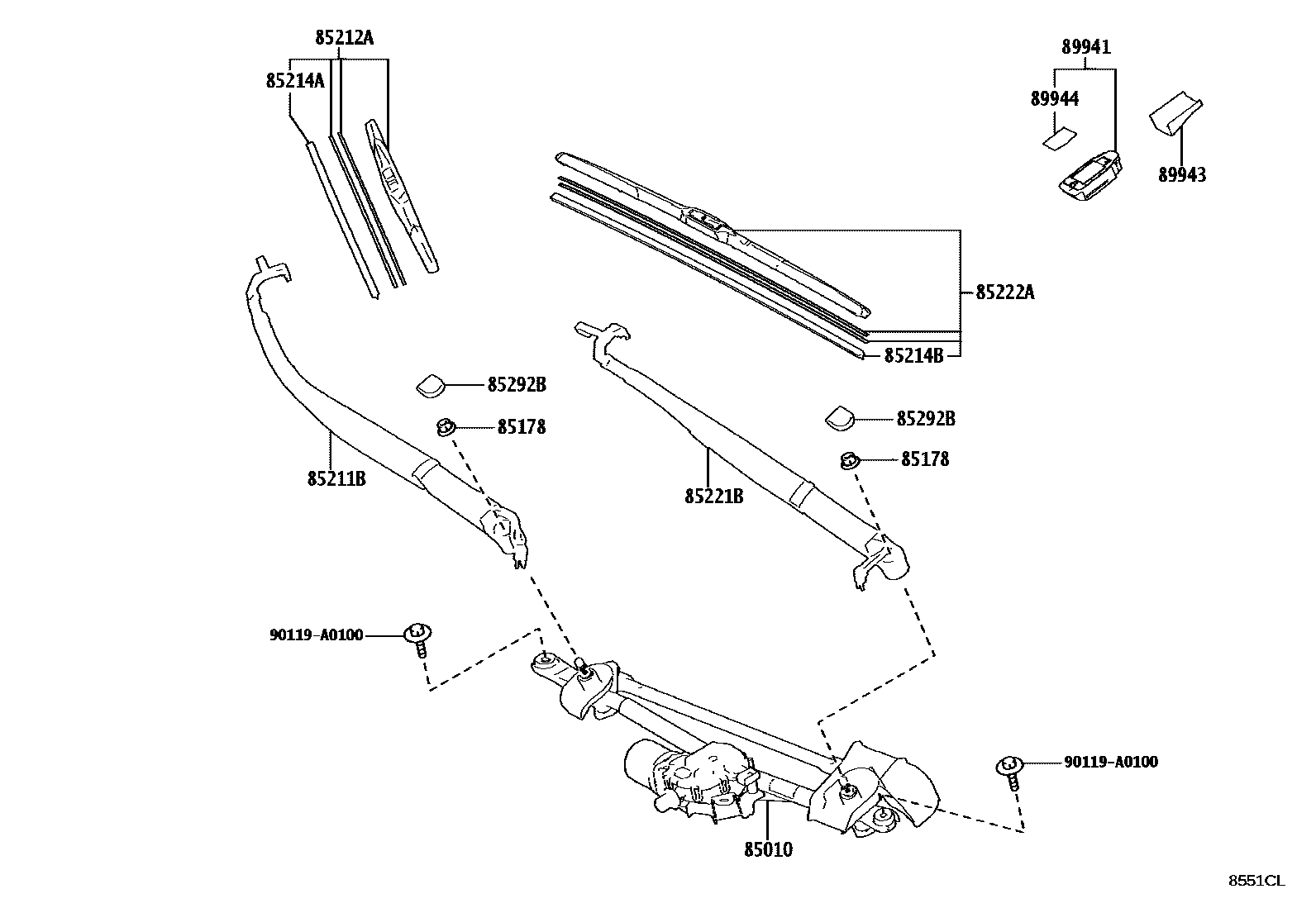

WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

main85010-0E200iAALH15,TALA1#,TALH17202210-202211

main85010-0E201iAALH15,TALA1#,TALH17202211-202304

main85010-0E202iAALH15,TALA1#,TALH17202305

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017×2iAALH15,TALA1#,TALH17202210

85211BARM, FRONT WIPER, RH

main85211-0E170iAALH15,TALA1#,TALH17202210

85212ABLADE, FR WIPER, RH

main85212-48190iAALH15,TALA1#,TALH17202210

85214ARUBBER, WIPER, RH

main85214-33180iAALH15,TALA1#,TALH17202210

85214BRUBBER, WIPER, LH

main85214-62010iAALH15,TALA1#,TALH17202210

85221BARM, FRONT WIPER, LH

main85221-0E180iAALH15,TALA1#,TALH17202210

85222ABLADE, FR WIPER, LH

main85222-48200iAALH15,TALA1#,TALH17202210

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iAALH15,TALA1#,TALH17202210

89941SENSOR, RAIN

main89941-78020iAALH15,TALA1#,TALH17202210

89943COVER, RAIN SENSOR

main89943-76020iAALH15,TALA1#,TALH17202210

89944TAPE, RAIN SENSOR

main89944-42020iAALH15,TALA1#,TALH17202210

90119A0100

main90119-A0100

13 parts on this diagram · 1 diagram in section
