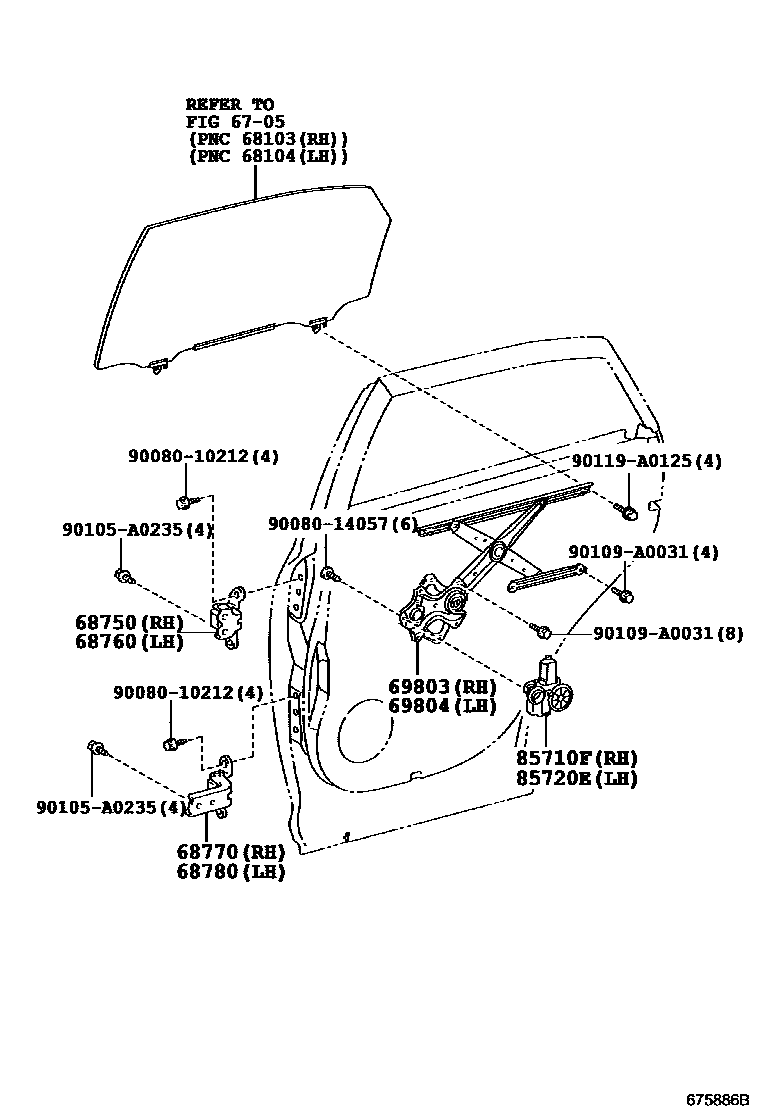

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iGGL1#..NAP200901-201204

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iGGL1#..NAP200901-201204

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050iGGL1#..NAP200901-201204

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050iGGL1#..NAP200901-201204

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-0E070iGGL1#..NAP200908-201204

main69801-0T010iGGL1#..NAP200901-200907

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-0E060iGGL1#..NAP200901-201204

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E030iGGL1#..NAP201204-201308

main85710-0E031iGGL1#,GYL1#..NAP201309

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0E030iGGL1#..NAP200901-201204

main85720-0E031iGGL1#,GYL1#..NAP201309

9008010212

main90080-10212

9008014057

main90080-14057

90105A0235

main90105-A0235

90109A0031

main90109-A0031

90119A0125

main90119-A0125

14 parts on this diagram · 1 diagram in section
