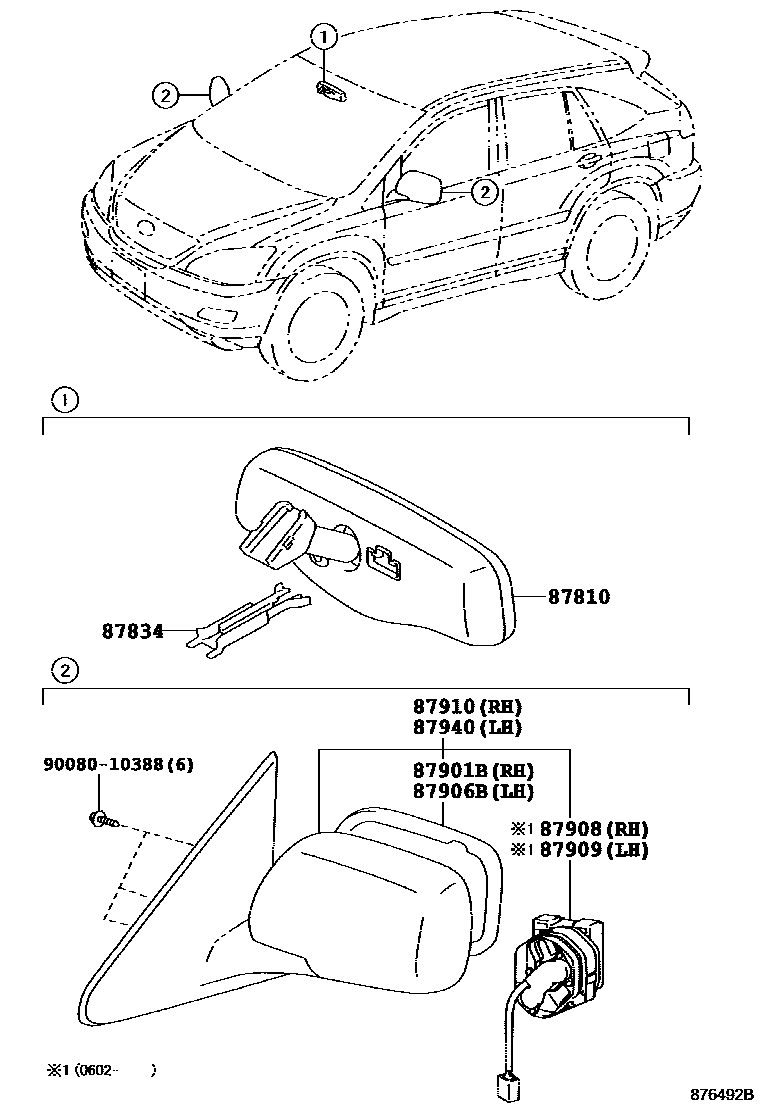

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
W/DVD NAVIGATION; WIPER-RAIN SENSING&W/DVD NAVIGATION
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
SILVER ME.,1F7
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4R4
BEIGE ME.,4T1
SABLE M.M.,4T5
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
MD.GREEN M.M.,6U3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
SILVER ME.,1F7
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4R4
BEIGE ME.,4T1
SABLE M.M.,4T5
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
MD.GREEN M.M.,6U3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
9008010388
main90080-10388
9 parts on this diagram · 2 diagrams in section
